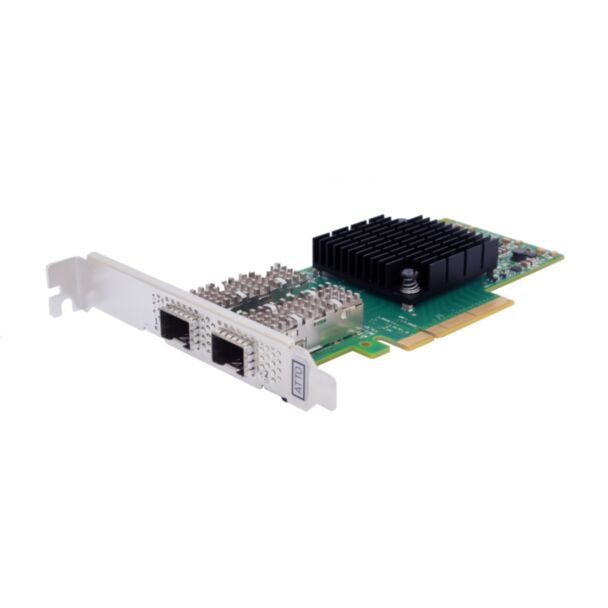

Atto FFRM-N322-000 interface cards/adapter Internal SFP28
ATTO FastFrame 3 N322 dual-port 10/25Gb Ethernet SmartNIC with x8 PCIe 3.0 interface, two SFP28 optical transceivers included, RoCE and 1 µs latency.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

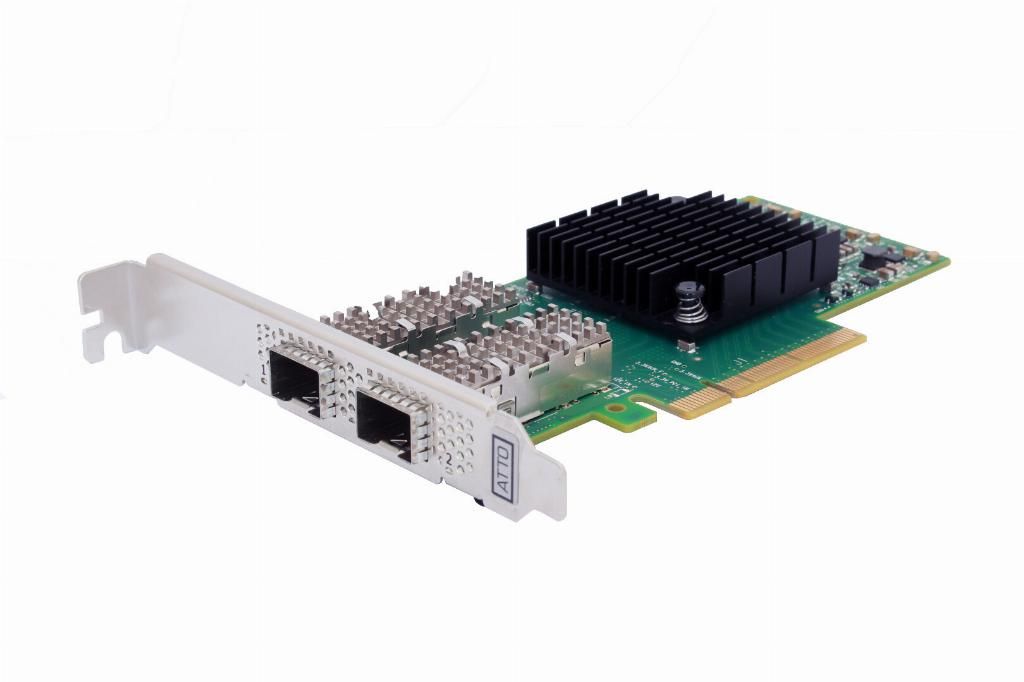

ATTO FastFrame 3 N322 Dual-Port 10/25GbE Ethernet SmartNIC with SFP28 FFRM-N322-000
The ATTO FastFrame N322 is a dual-port 10/25Gb Ethernet SmartNIC supplied with SFP28 optical transceivers, an upgrade from built-in 10Gb Ethernet for moving data faster in latency-sensitive applications. It offers 1 µs MPI ping latency via RoCE, guaranteed bandwidth and low-latency services, Energy Efficient Ethernet and CPU offloads.
Congestion control, CPU offloading for transport operations and Energy Efficient Ethernet make FastFrame 3 suitable for media and entertainment applications such as video post-production, finishing and imaging, as well as IT applications such as data analytics and hyperconverged servers.
Key features
- Dual-port 10/25GbE
- 1 µs MPI ping latency via RoCE
- RDMA over Converged Ethernet and TCP/UDP/IP stateless offloads
- Protocols: MPI, Platform MPI, TCP/UDP, iSER, SMB RDMA
- MSI and MSI-X support, jumbo frames up to 9K
- x8 mechanical and electrical PCI Express 3.0
- Drivers for macOS (including Apple silicon), Windows 11/10/8.1, Windows Server 2016/2012, FreeBSD, RHEL and SLES
- RoHS compliant
In the box
- 1 x ATTO FastFrame N322 Ethernet adapter
- 2 x SFP28 optical transceivers
- 1 x Low-profile bracket
- 1 x Getting started guide
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | FFRM-N322-000 |
| Warranty | 3 year standard product warranty |
| Product title | Atto FFRM-N322-000 interface cards/adapter Internal SFP28 |
| Long Product Name | FastFrame™ N322 Integrated SFP28 Optical Interface |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* SFP28 External ports 2 DesignInternal* Yes Product colour Grey FeaturesData transfer rate (max) 25 Gbit/s FeaturesFull duplex Yes System requirementsWindows operating systems supported Yes Mac operating systems supported Yes Technical detailsSustainability compliance Yes Compliance certificates RoHS |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | SFP28 |
| Internal | Yes |
