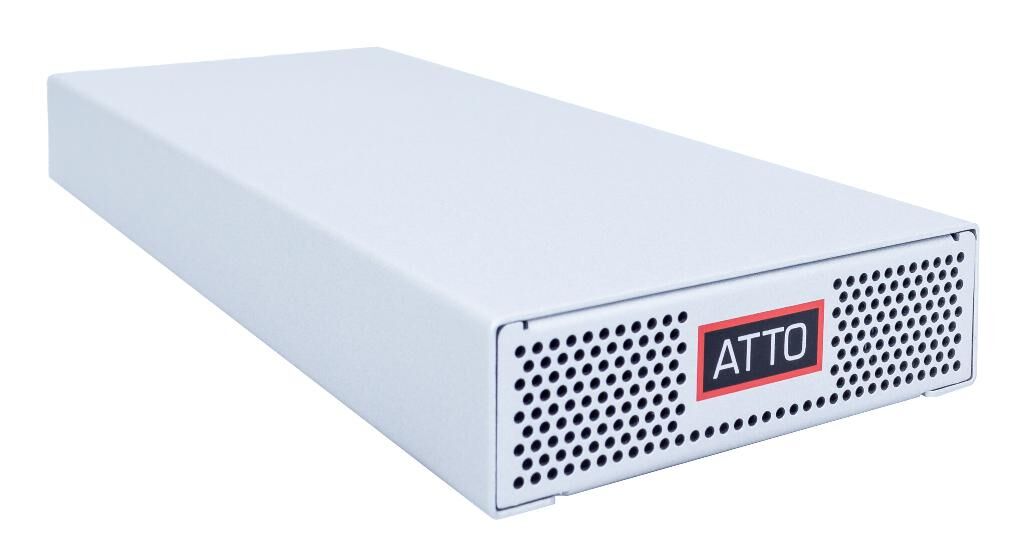

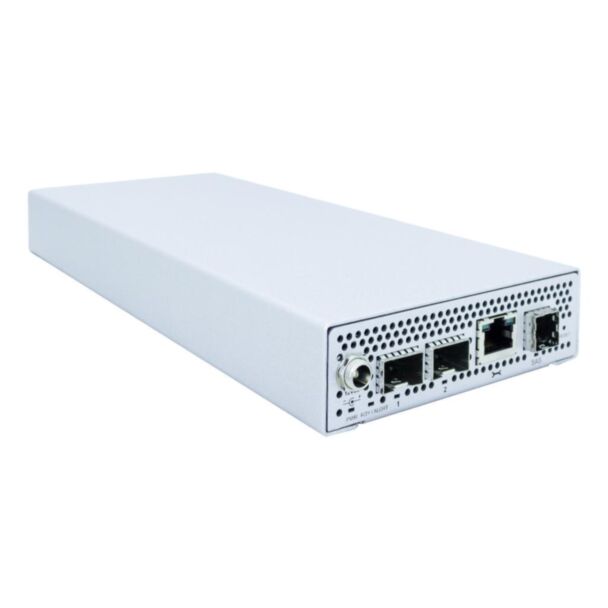

Atto XstreamCORE 8100-TS0 Network bridge 2000 Mbit/s White

ATTO XstreamCORE ET 8100T Dual-Port 10GbE to 12Gb SAS Tape Bridge XCET-8100-TS0

The ATTO XstreamCORE ET 8100T is a 10Gb Ethernet to 12Gb/s SAS intelligent bridge that connects and shares SAS tape drives and libraries over iSCSI Ethernet, maximising drive shareability. It offers two 10Gb Ethernet ports for iSCSI host connections and a single x4 12Gb/s Mini-SAS HD SFF-8644 port that auto-negotiates to 6Gb/s, supporting up to 4 SAS tape drives per bridge (LTO-5 or later). This model supports tape devices only.

The bridge is operating system independent (an iSCSI initiator is required), delivers up to 2GB/s sustained transfer rate with less than 2 microseconds of added latency, and is configured and managed through a web-based GUI. Tape drives are mapped automatically, and LEDs show port, power supply and bridge status.

Key features

• 2 x 10Gb Ethernet ports for iSCSI host connections
• 1 x x4 12Gb/s Mini-SAS HD SFF-8644 port, auto-negotiates to 6Gb/s
• Up to 4 SAS tape drives per bridge
• Supports LTO-5 or later SAS tape drives and libraries
• Up to 2GB/s sustained transfer rate
• Less than 2 microseconds of added latency
• Web-based GUI for configuration and management
• Battery-free design
• RoHS compliant

Compatibility

• Operating system independent (iSCSI initiator required)

Notes

• Supports tape devices only
• SFP+ modules included

In the box

• ATTO XstreamCORE 8100T intelligent bridge
• SFP+ modules
• Power adapter and cable

Specifications

• Model: XCET-8100-TS0
• Host ports: 2 x 10Gb Ethernet (iSCSI)
• Device port: 1 x x4 12Gb/s SAS (Mini-SAS HD SFF-8644)
• Format: external enclosure
