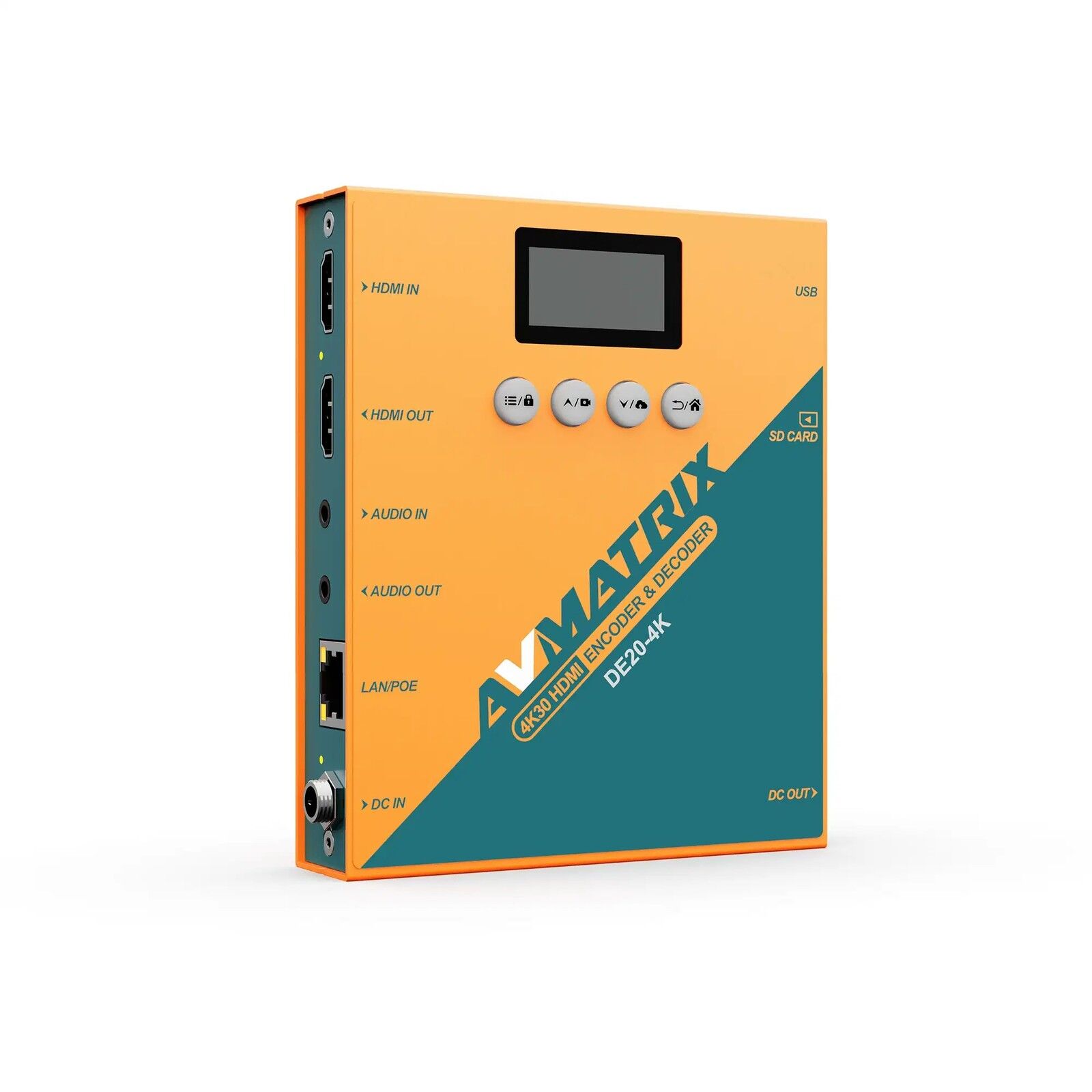

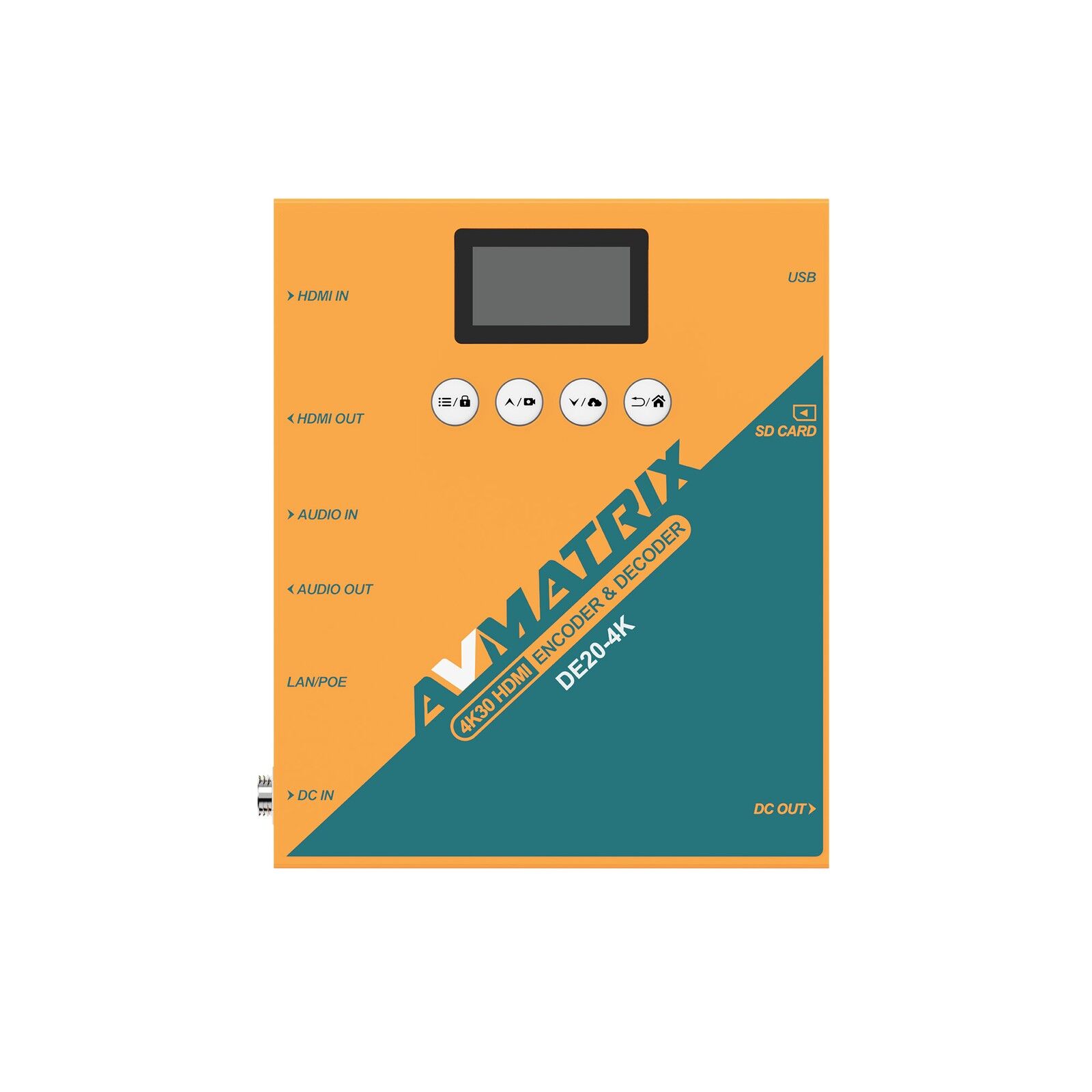

AVMatrix DE20-4K – 4K HDMI streaming encoder/decoder with recording, SRT, RTMP and optional NDI|HX3, PoE
GTIN: 6971118003600
Available or to order (see message in the cart)
SKU
AVM-DE20-4K
€364.78 €299.00
Streaming encoder and decoder in one device: it encodes an HDMI input up to 2160p30 to RTSP, RTMP, RTMPS or SRT, or decodes a network stream to HDMI. It records to SD card, USB disk or NAS. The NDI|HX function is optional.
AVMatrix DE20-4K – 4K HDMI streaming encoder/decoder with recording, SRT, RTMP and optional NDI|HX3, PoE
Streaming encoder and decoder in one device: it encodes an HDMI input up to 2160p30 to RTSP, RTMP, RTMPS or SRT, or decodes a network stream to HDMI. It records to SD card, USB disk or NAS. The NDI|HX function is optional.
- Video: encoder: 1x HDMI input, 1x HDMI loop; decoder: 1x HDMI output
- HDMI input: up to 2160p60
- Encoding and decoding: 2160p30/25/24, 1080p60/50/30/25/24, 1080i60/50, 720p60/50
- Protocols: RTSP, RTMP, RTMPS, SRT; optional NDI|HX, HX2, HX3
- Bit rate: up to 50 Mbps
- Recording: SD card, USB disk (FAT32/exFAT), NAS
- USB: host: recording, USB audio and video input, PTZ control; device: UVC capture
- PTZ control: Pelco D/P, VISCA
- Audio: 3.5 mm input and output
- Power: DC 6-20 V or PoE+ (802.3at); consumption ≤ 8 W
- Dimensions and weight: 104 x 125.5 x 24.5 mm; 501 g
- Included: 12 V 2 A power adapter; bracket and USB cable optional
- Manufacturer warranty: 3 years
Specifications

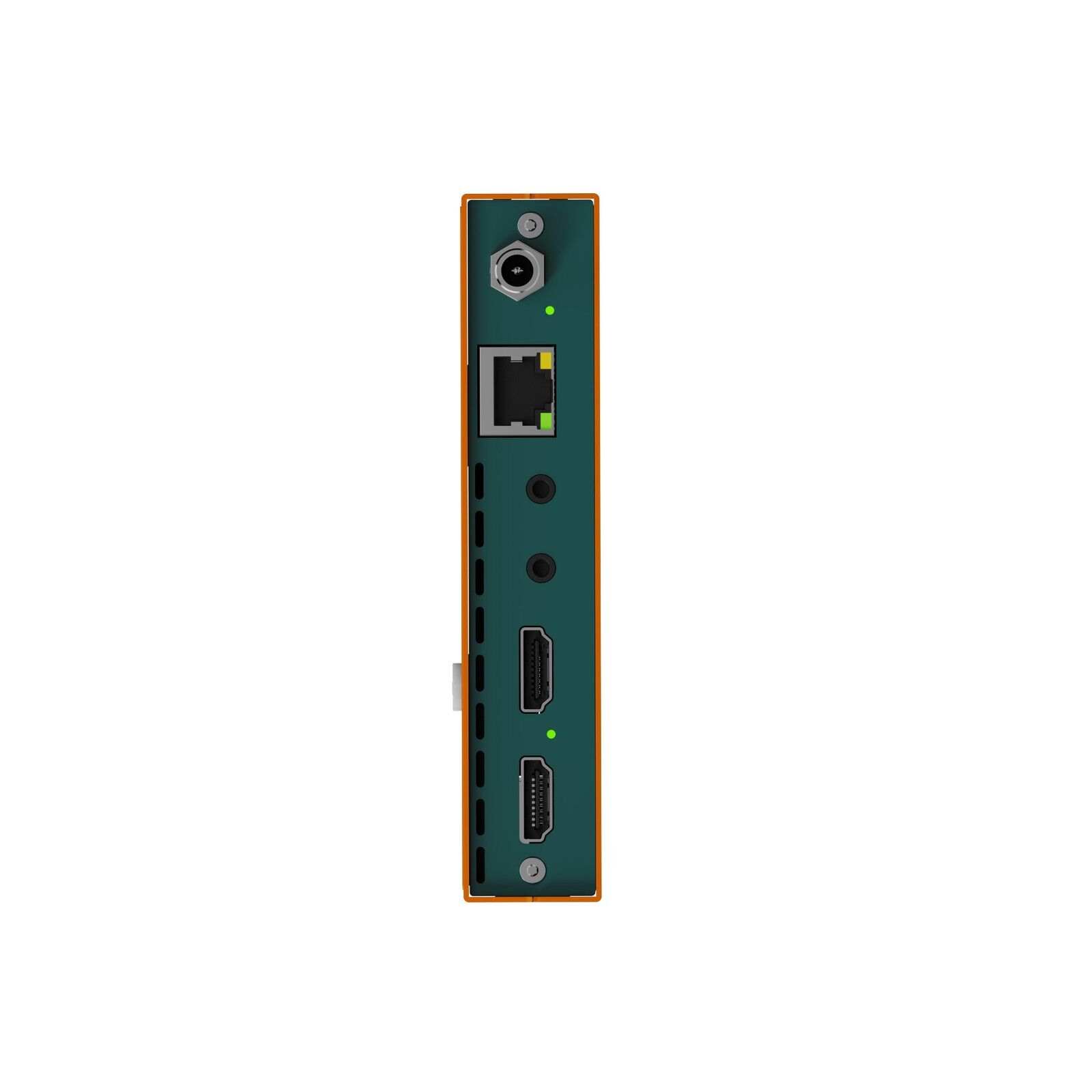

- Video: encoder HDMI in x 1, HDMI loop x 1; decoder HDMI out x 1
- Audio: 3.5 mm audio in and out
- Network: LAN (PoE) x 1

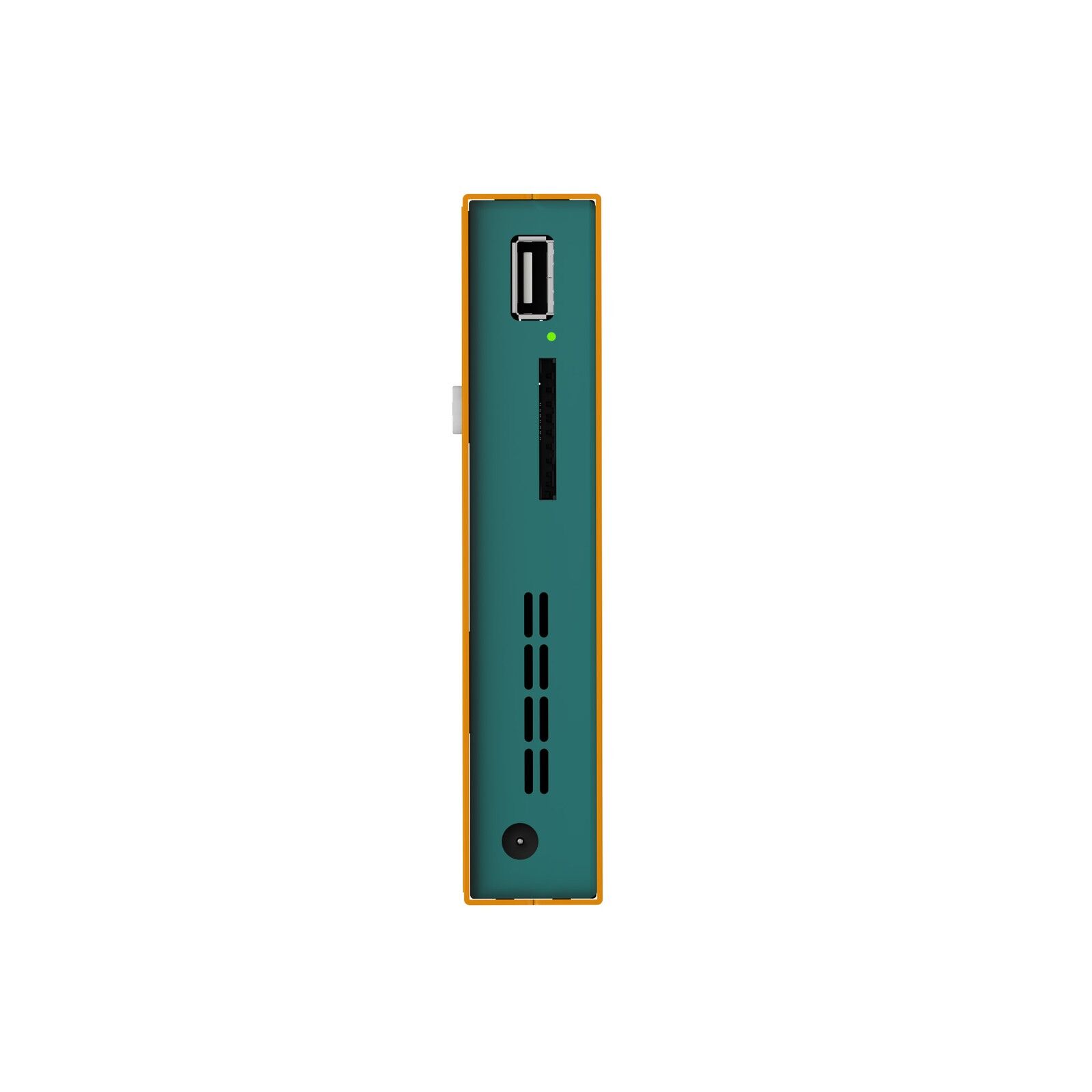

- USB: Type-A x 1
- Recording: SD card, USB disk (FAT32/exFAT), NAS
- HDMI in and loop: up to 2160p60 (encoder); HDMI out: up to 2160p30 (decoder)
- Encoder/decoder formats: 2160p30/25/24, 1080p60/50/30/25/24, 1080i60/50, 720p60/50
- Stream protocols: RTSP, RTMP, RTMPS, SRT, NDI (optional, NDI|HX/HX2/HX3) for encoding and decoding
- Bit rate: up to 50 Mbps
- PTZ control protocols: Pelco D/P, VISCA
- USB host: USB recording, USB audio input, USB video to IP stream and HDMI out, USB PTZ camera control; USB device: UVC capture
- Power: DC in 6-20 V, PoE+ (802.3at); DC out 6-20 V (max 1 A), USB out 5 V 1 A; consumption ≤ 8 W
- Dimensions: 104 x 125.5 x 24.5 mm
- Weight: 501 g
- Operating temperature: -20 to 60 °C; storage -30 to 70 °C
- Optional accessories: mounting bracket, USB A-C cable
In the box
- DE20-4K encoder/decoder
- 12 V 2 A power adapter
| Product Condition | New |
|---|---|
| Manufacturer | AVMatrix |
| manufacturer code | DE20-4K |
| Ean | 6971118003600 |
