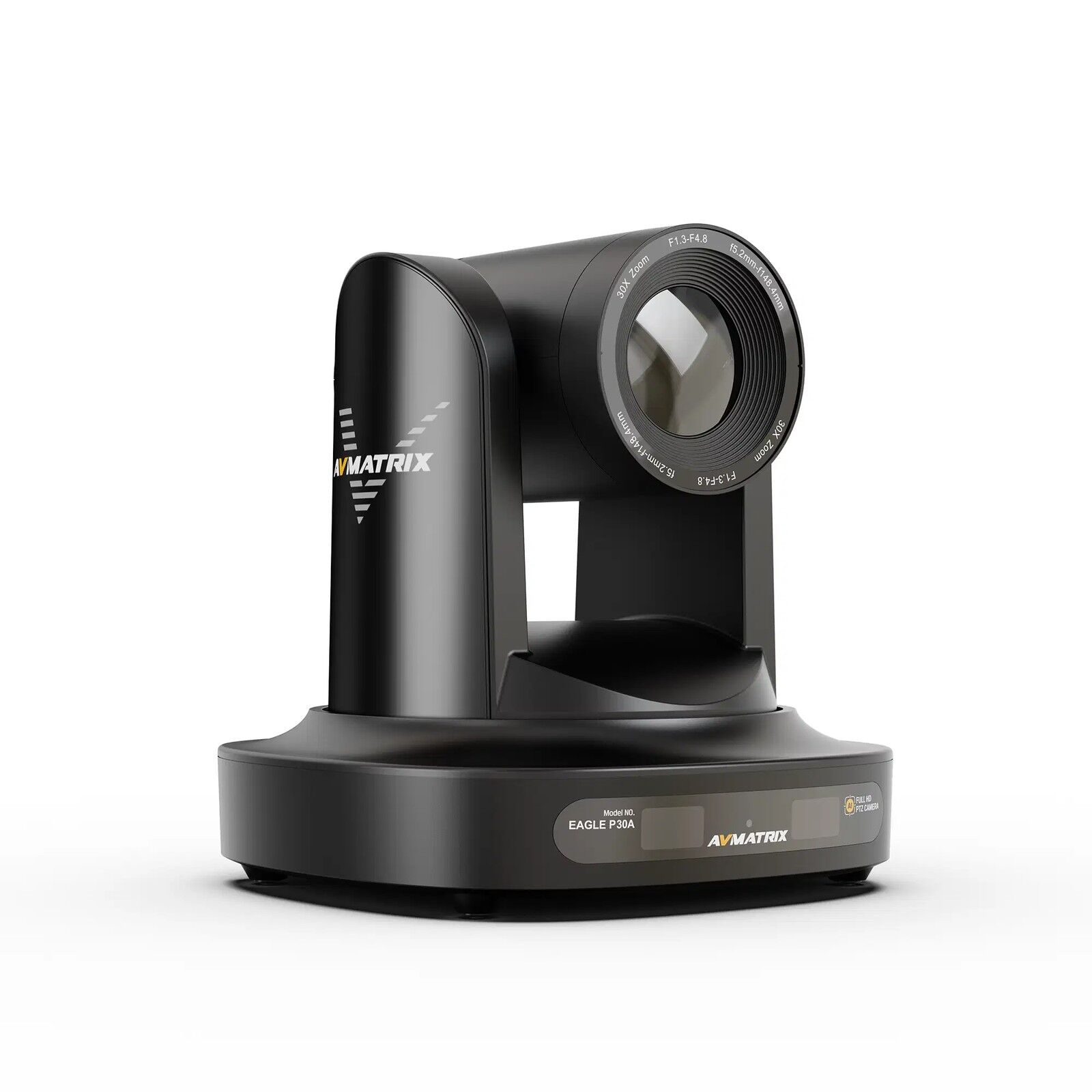

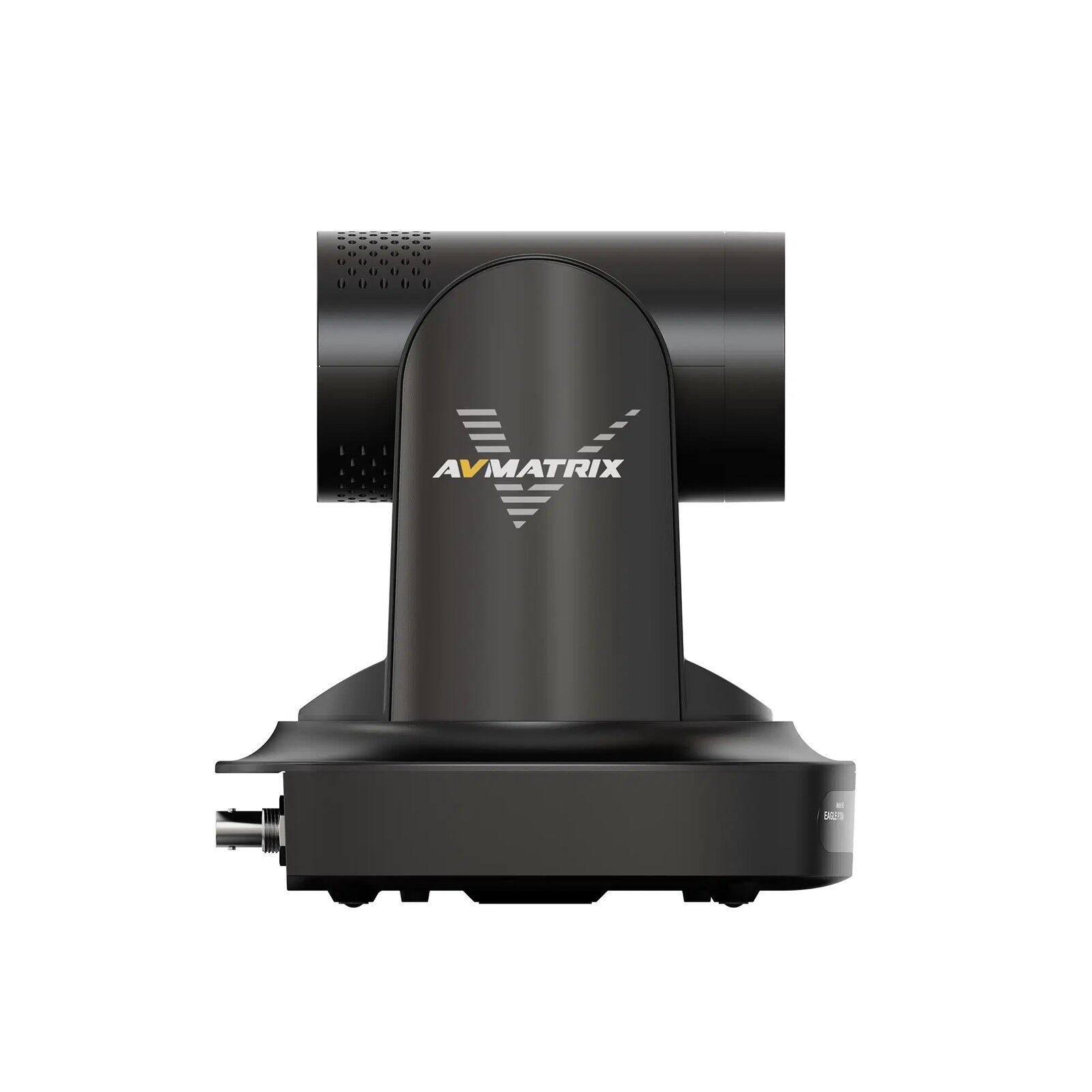

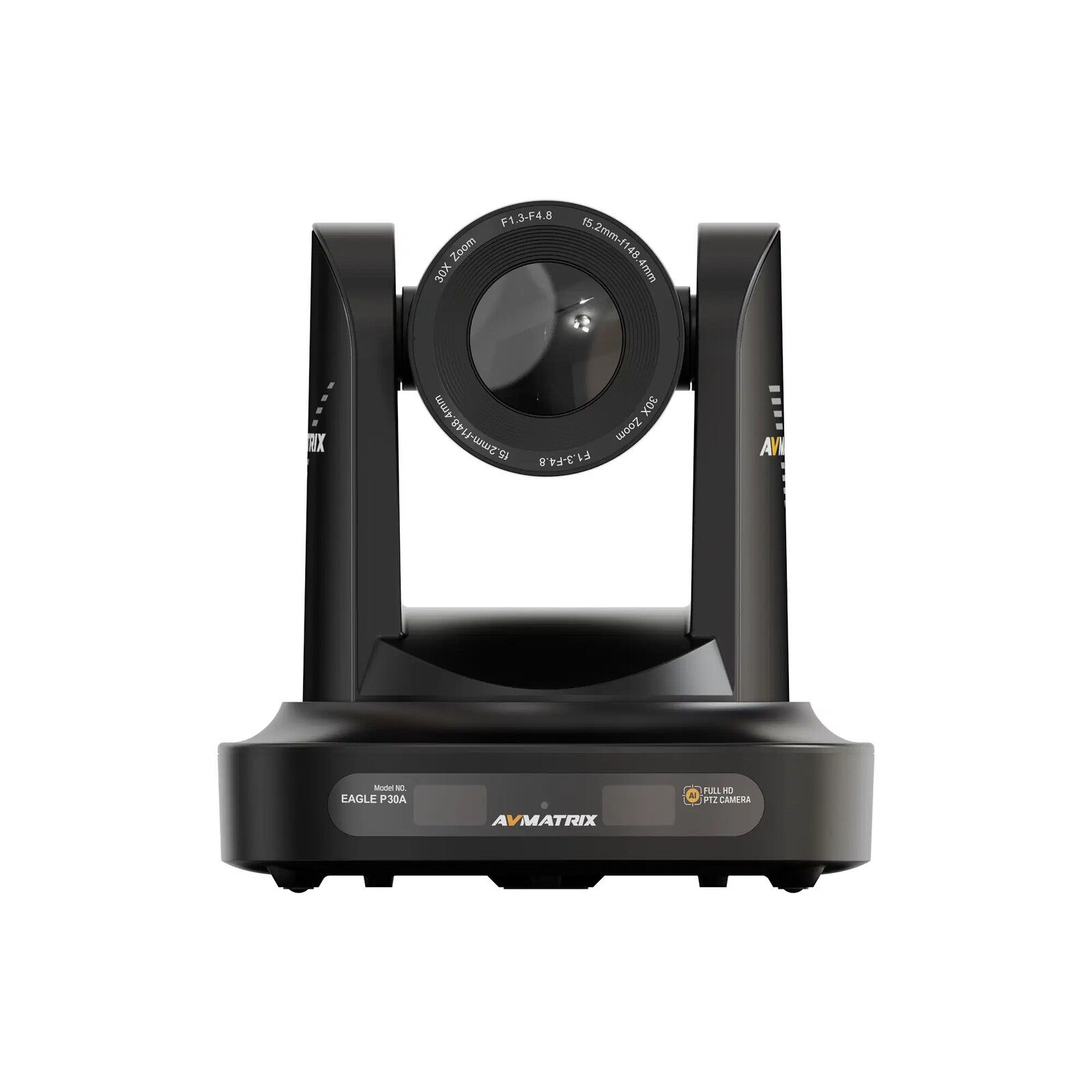

AVMatrix P30A-NDI – Full HD PTZ camera with 30x optical zoom, NDI|HX3, HDMI, SDI, USB and AI tracking

AVMatrix P30A-NDI – Full HD PTZ camera with 30x optical zoom, NDI|HX3, HDMI, SDI, USB and AI tracking

Full HD PTZ camera with 30x optical zoom and automatic subject tracking: real-time, stage, area or intelligent framing, up to 18 metres. HDMI, SDI, USB 3.0 and network outputs, with optional PoE+ power.

• Sensor: 1/2.8" HD CMOS, 2.07 megapixels
• Lens: 30x optical zoom, f = 5.2‑148.4 mm; 16x digital zoom
• Horizontal field of view: 58,1° – 2,14°
• Minimum illumination: 0.5 lux (F1.8)

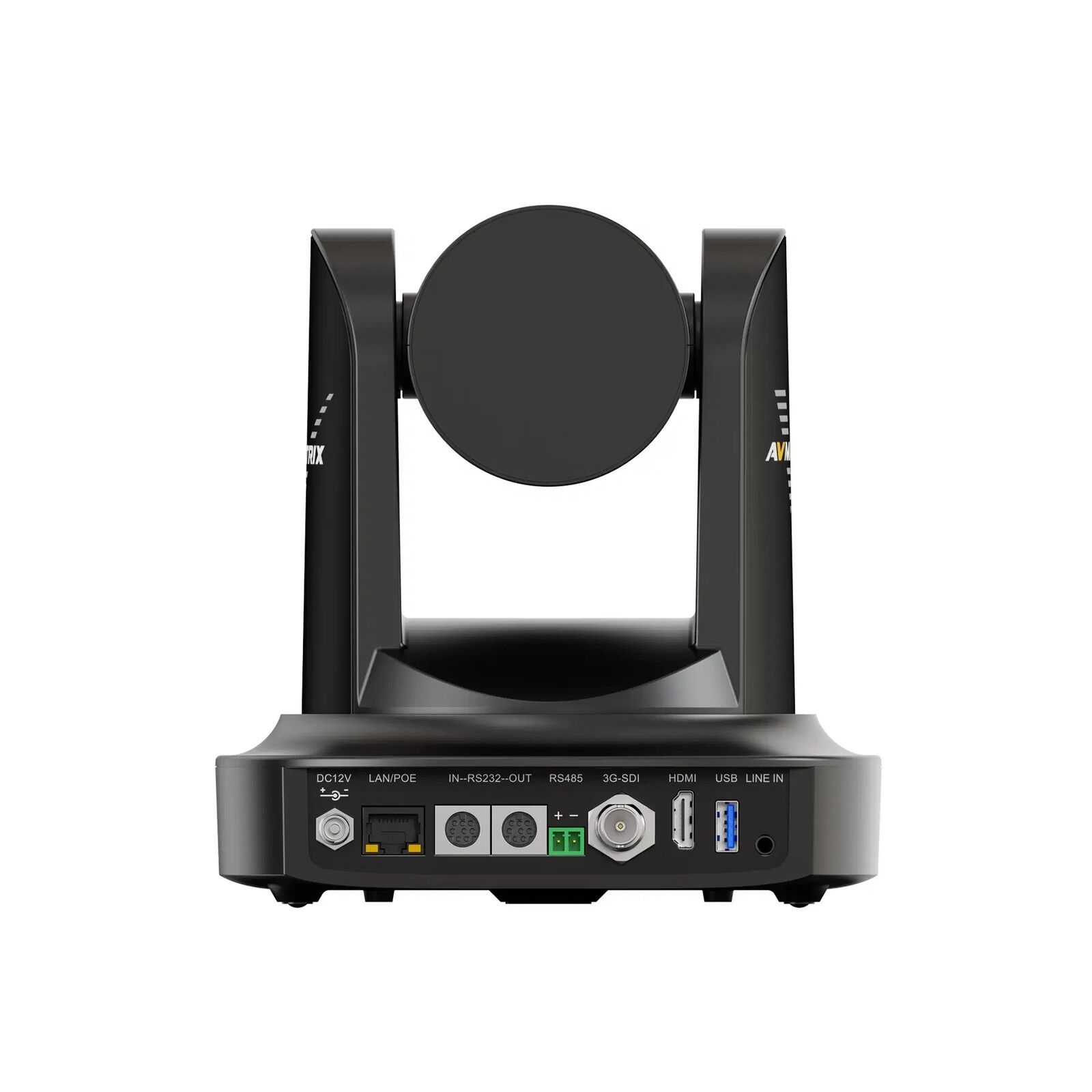

• Video outputs: HDMI, SDI, LAN, USB 3.0
• HDMI/SDI formats: 1080p60/59.94/50/30/29.97/25, 1080i60/50/59.94, 720p60/59.94/50
• Compression: network H.265, H.264; USB MJPG, H.264, H.265, YUY2, NV12
• Network protocols: RTSP, RTMP, ONVIF, SRT, FreeD, NDI|HX3, VISCA over IP
• Control: RS‑232 in/out, RS‑485; VISCA, Pelco‑D, Pelco‑P
• Audio: 3.5 mm line input; AAC, G.711A
• Movement: pan ±170°, tilt −30°/+90°; 255 presets
• Tracking: real-time, stage, area, intelligent framing; up to 18 m
• Power: DC 12 V, optional PoE+ (IEEE 802.3at); consumption ≤ 13.8 W
• Dimensions and weight: 170 x 170 x 180 mm; 1.26 kg
• Included: 12 V 2 A power adapter, USB 3.0 cable, RS-232 serial cable, RS-485 connector, remote control
