AVMatrix PKC4000-NDI – PTZ camera controller with joystick and 5 inch touch screen, NDI|HX2, ONVIF, VISCA over IP, Pelco and PoE

AVMatrix PKC4000-NDI – PTZ camera controller with joystick and 5 inch touch screen, NDI|HX2, ONVIF, VISCA over IP, Pelco and PoE

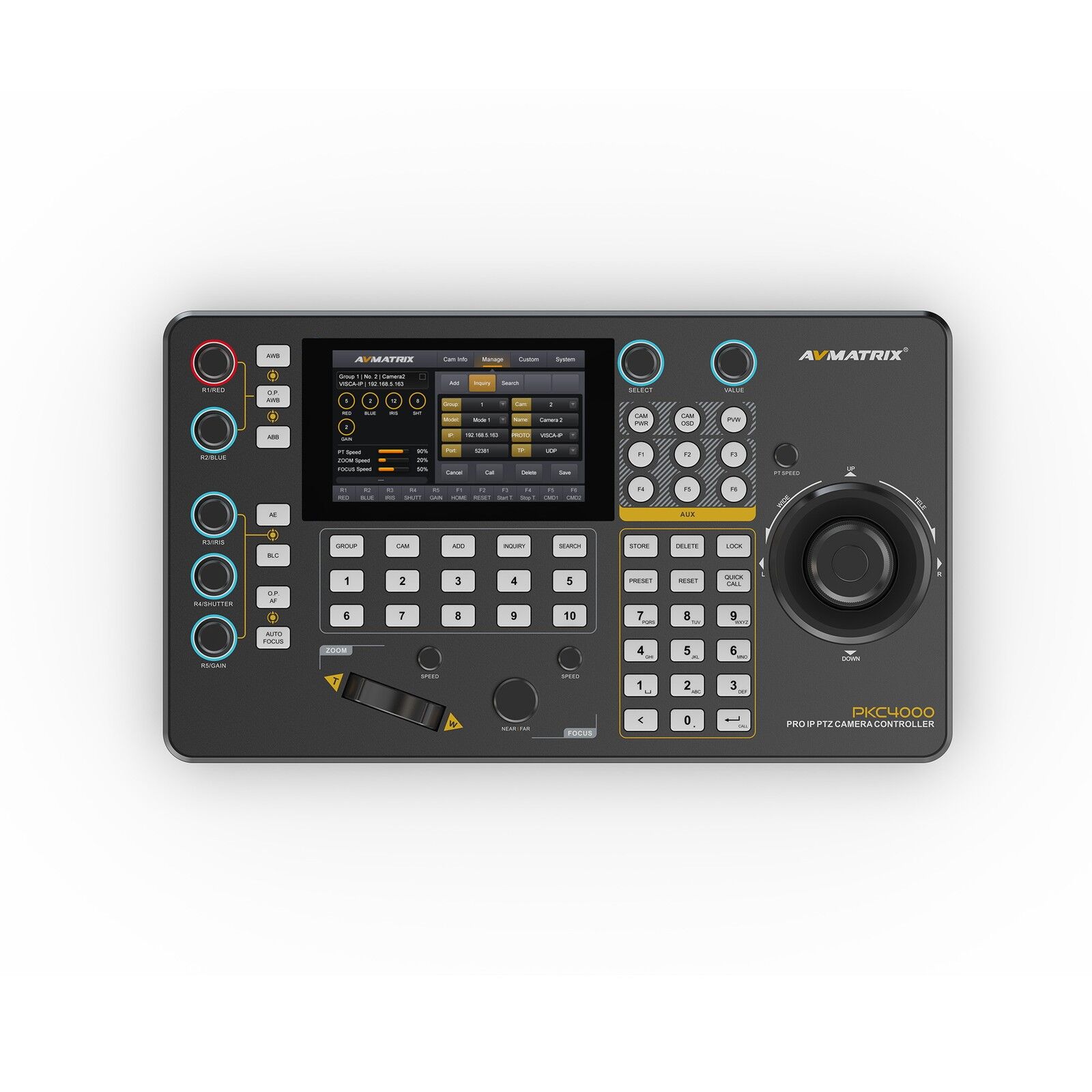

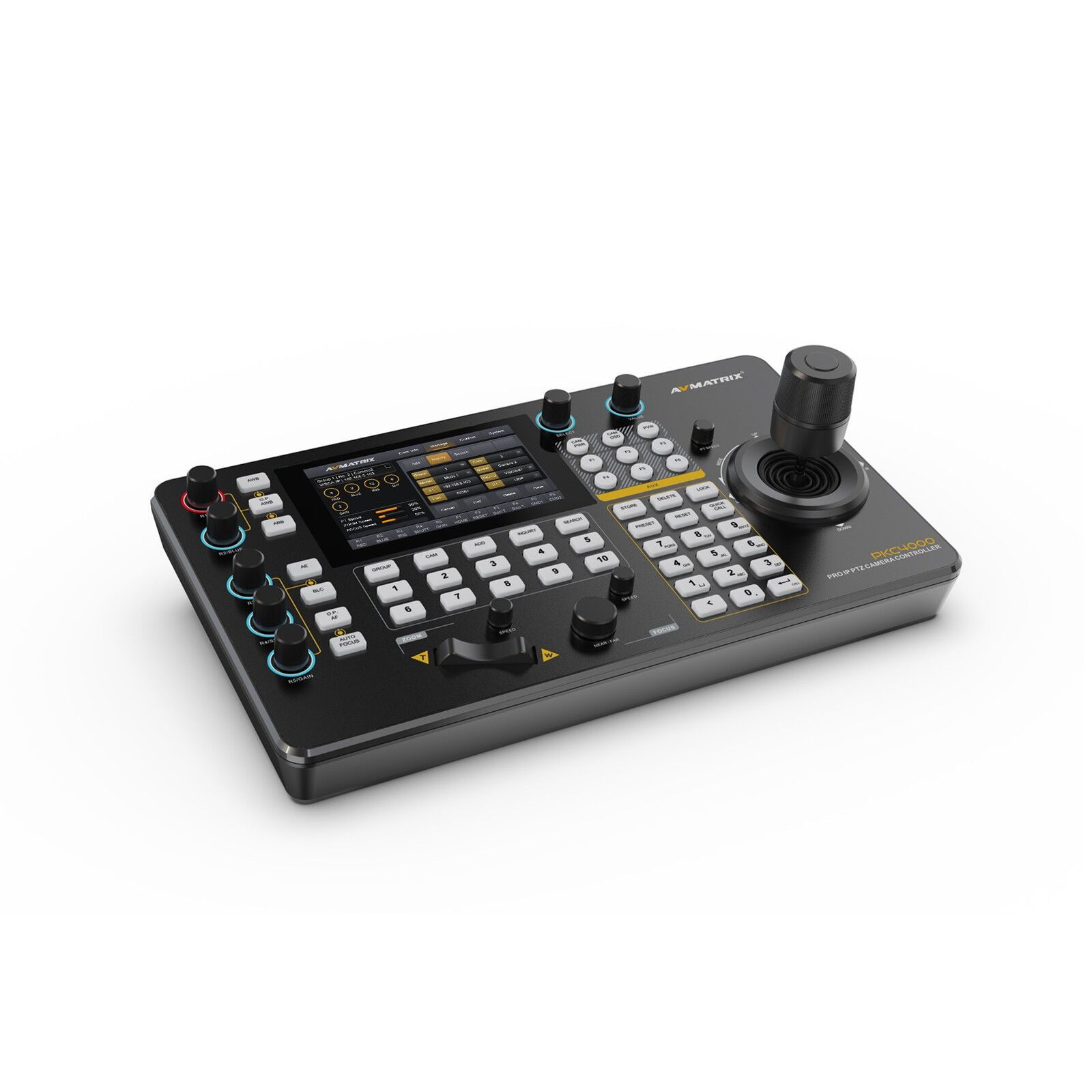

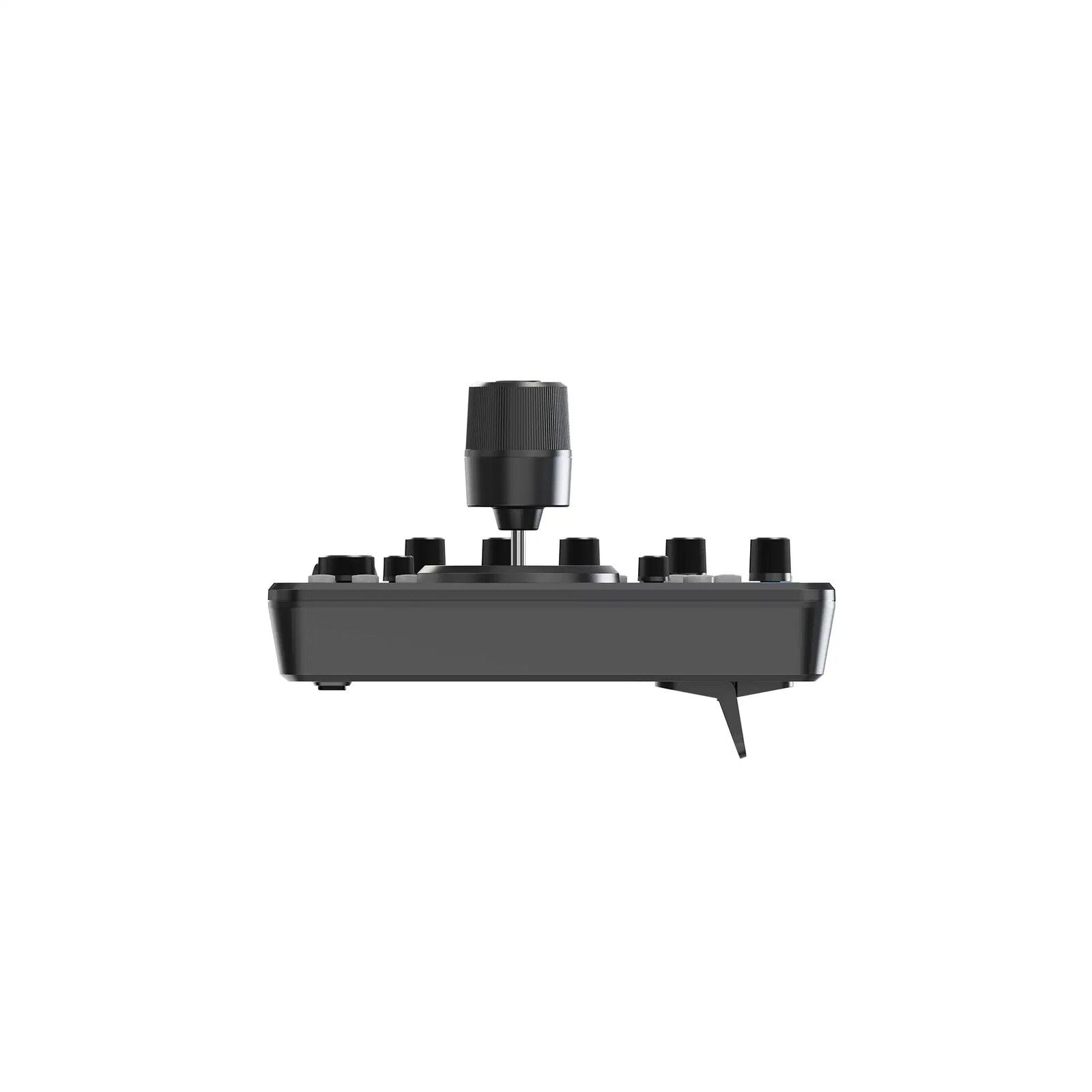

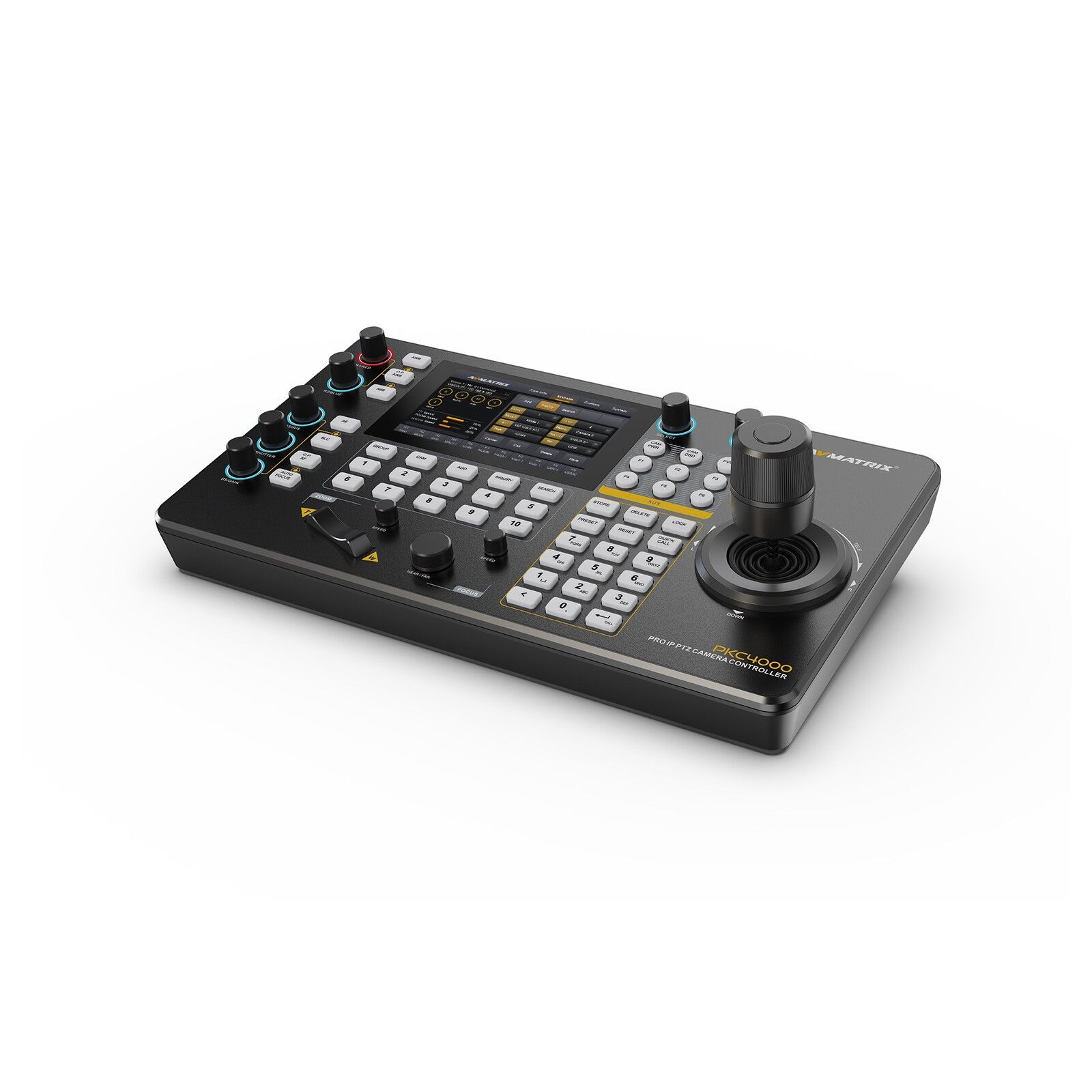

Desktop controller for PTZ cameras, over IP and serial. Joystick for pan, tilt and zoom, knobs for iris, shutter, gain and white balance, 5 inch touch screen with NDI|HX2 signal preview. PoE or DC power.

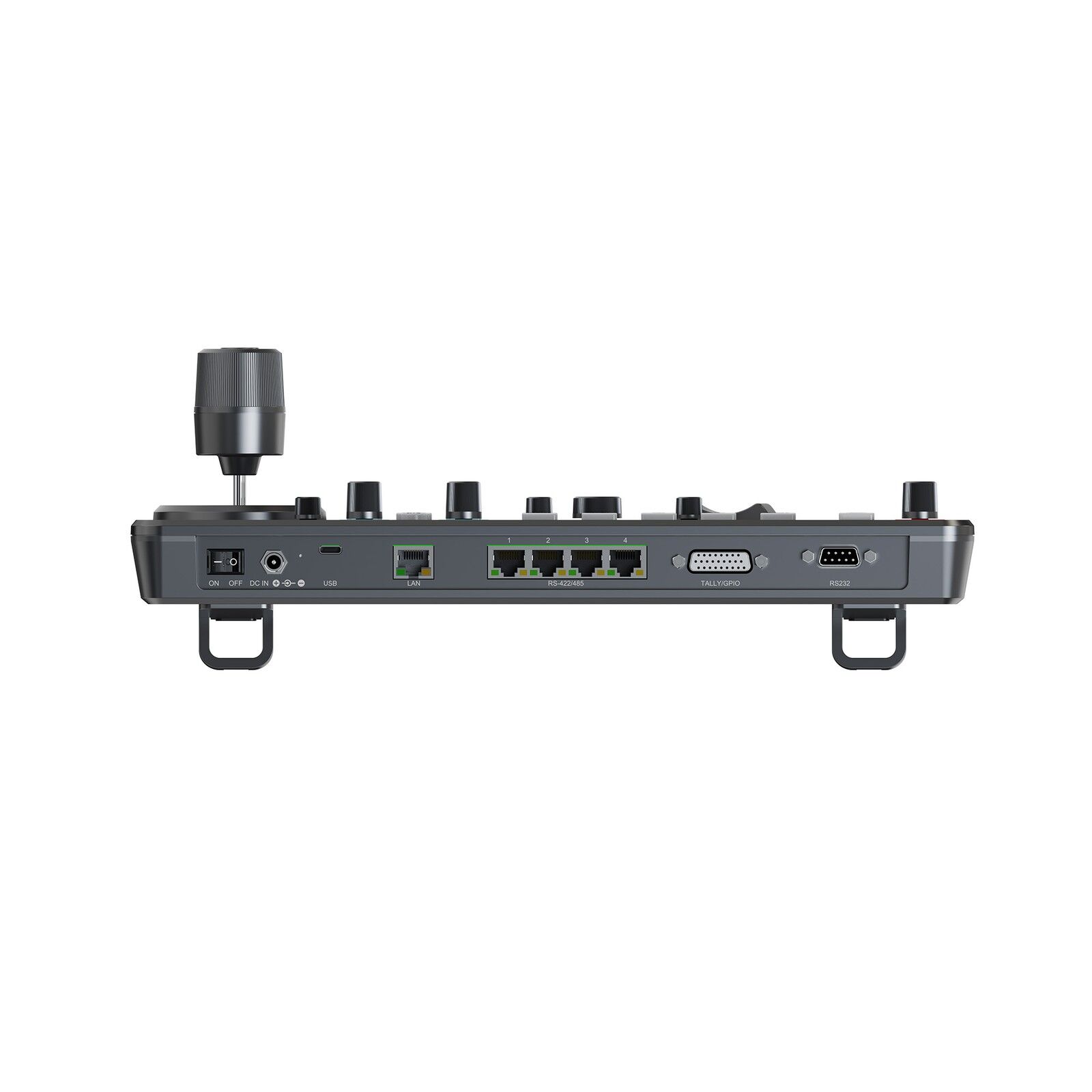

• Interfaces: 1x LAN RJ45 1000M (PoE/PoE+), 1x RS-232, 4x RS-485/RS-422, 1x Tally, USB 2.0 (upgrade)
• IP protocols: ONVIF, VISCA‑IP, NDI|HX, NDI|HX2
• Serial protocols: Pelco‑D, Pelco‑P, VISCA; 2400‑115200 bps
• Display: 5 inch touch
• Controls: pan/tilt/zoom joystick; knobs for iris, shutter speed, gain, auto exposure, white balance
• Camera groups: 10, up to 10 cameras per group
• Cameras: up to 100 addresses, 255 presets
• Power: PoE or DC 7-24 V; consumption < 8 W
• Dimensions and weight: 340 x 195 x 110.2 mm with joystick; 1.73 kg
• Included: 12 V 2 A power adapter, Tally connector
