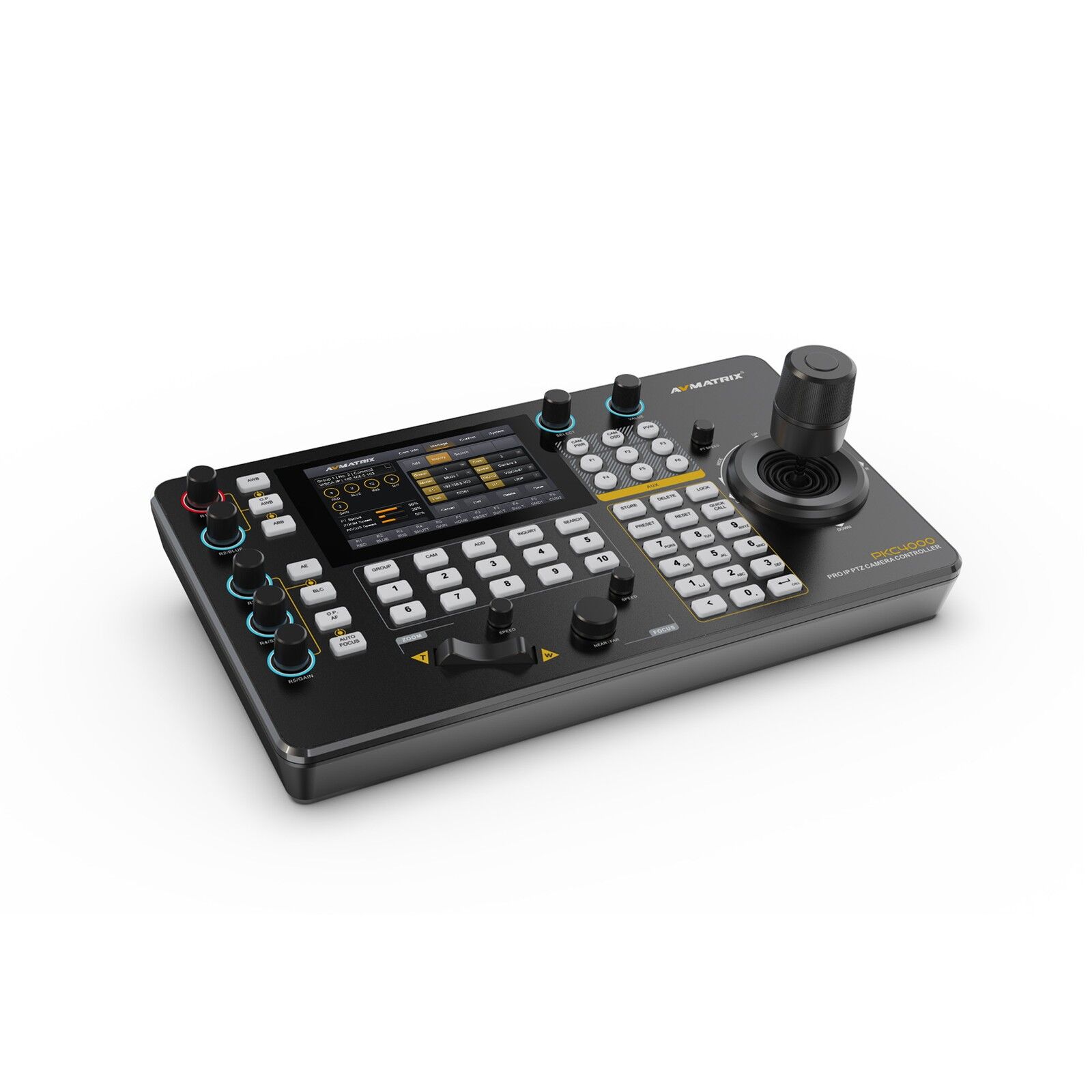

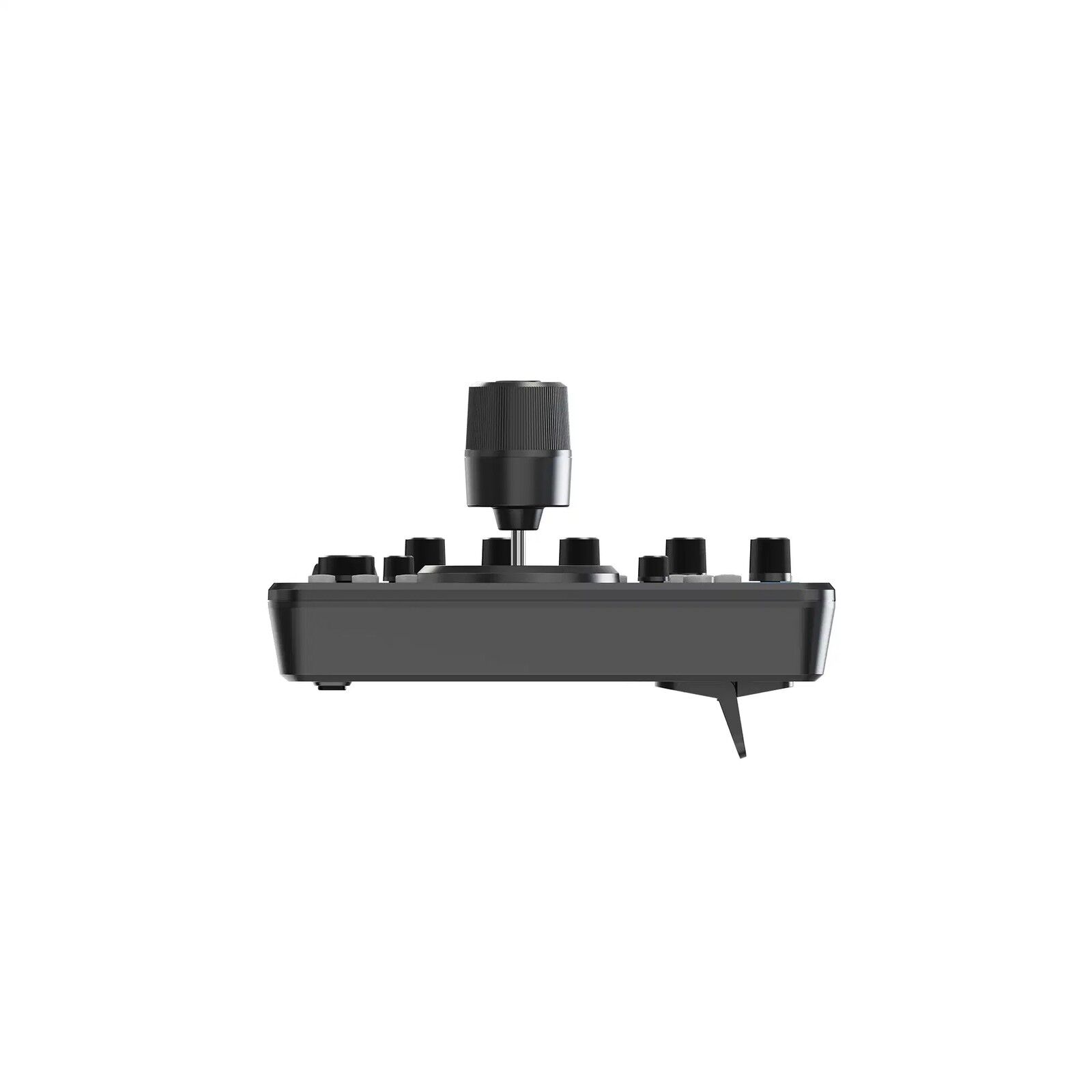

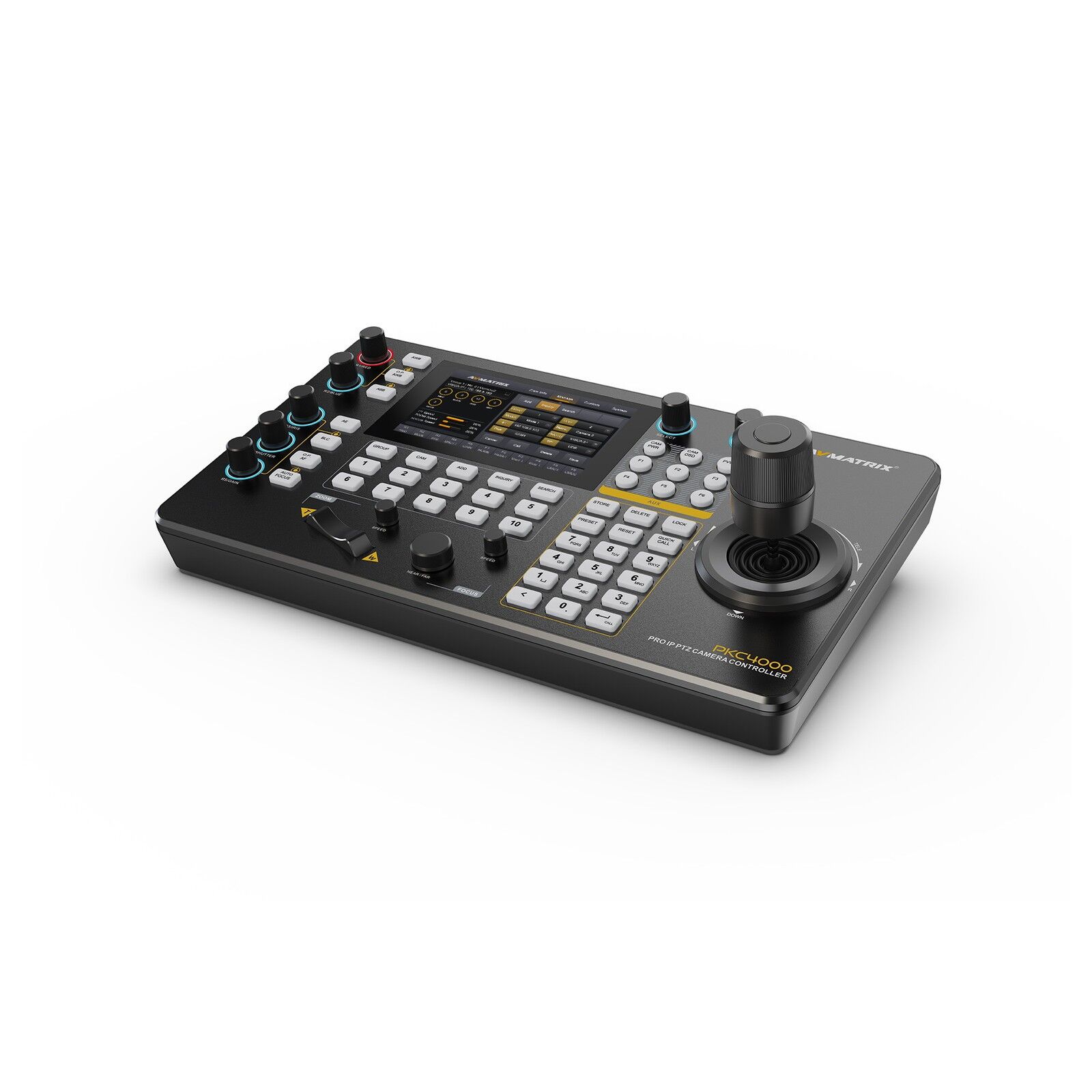

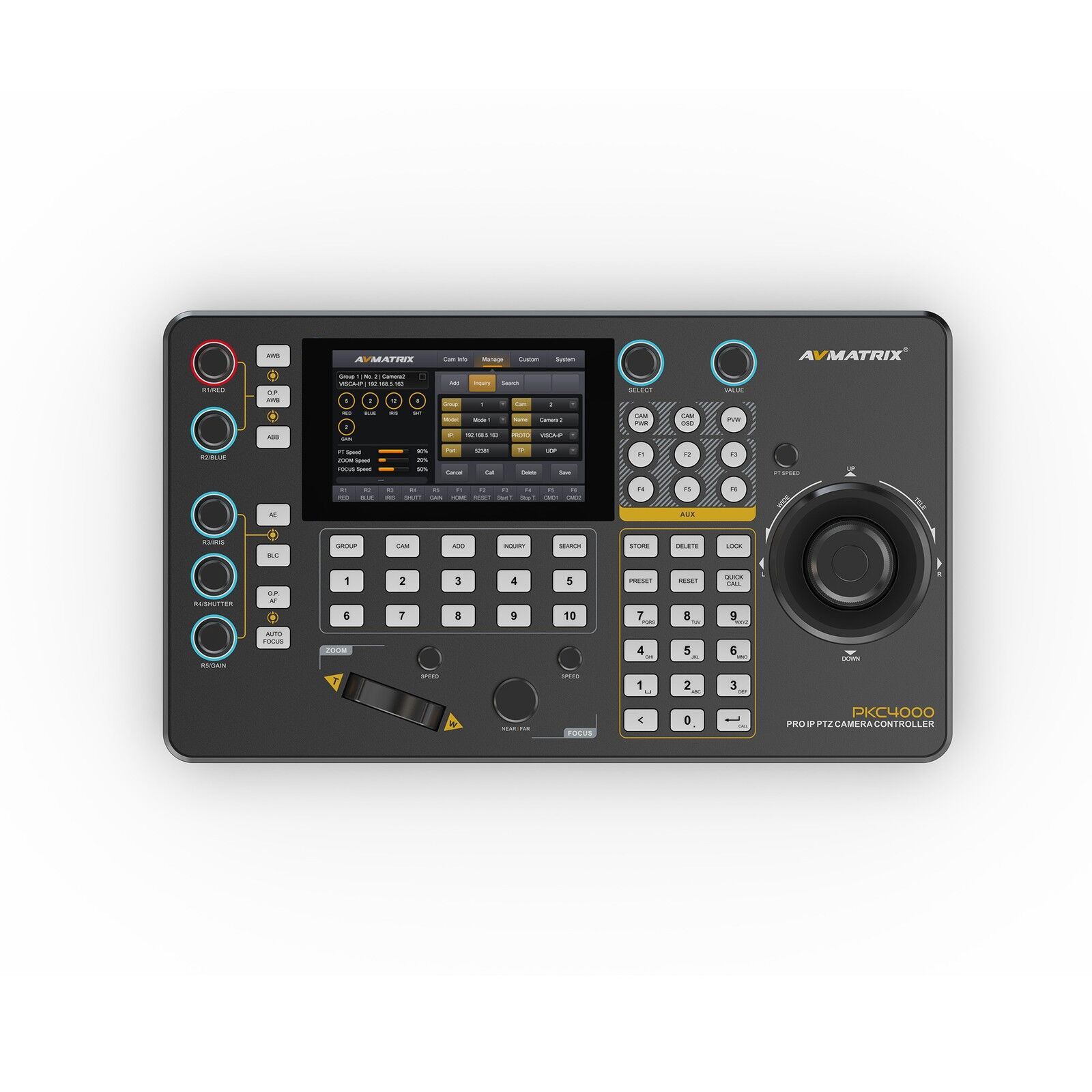

AVMatrix PKC4000 – PTZ camera controller with joystick and 5 inch touch screen, ONVIF, VISCA over IP, Pelco and PoE

AVMatrix PKC4000 – PTZ camera controller with joystick and 5 inch touch screen, ONVIF, VISCA over IP, Pelco and PoE

Desktop controller for PTZ cameras, over IP and serial. Joystick for pan, tilt and zoom, knobs for iris, shutter, gain and white balance, 5 inch touch screen. PoE or DC power.

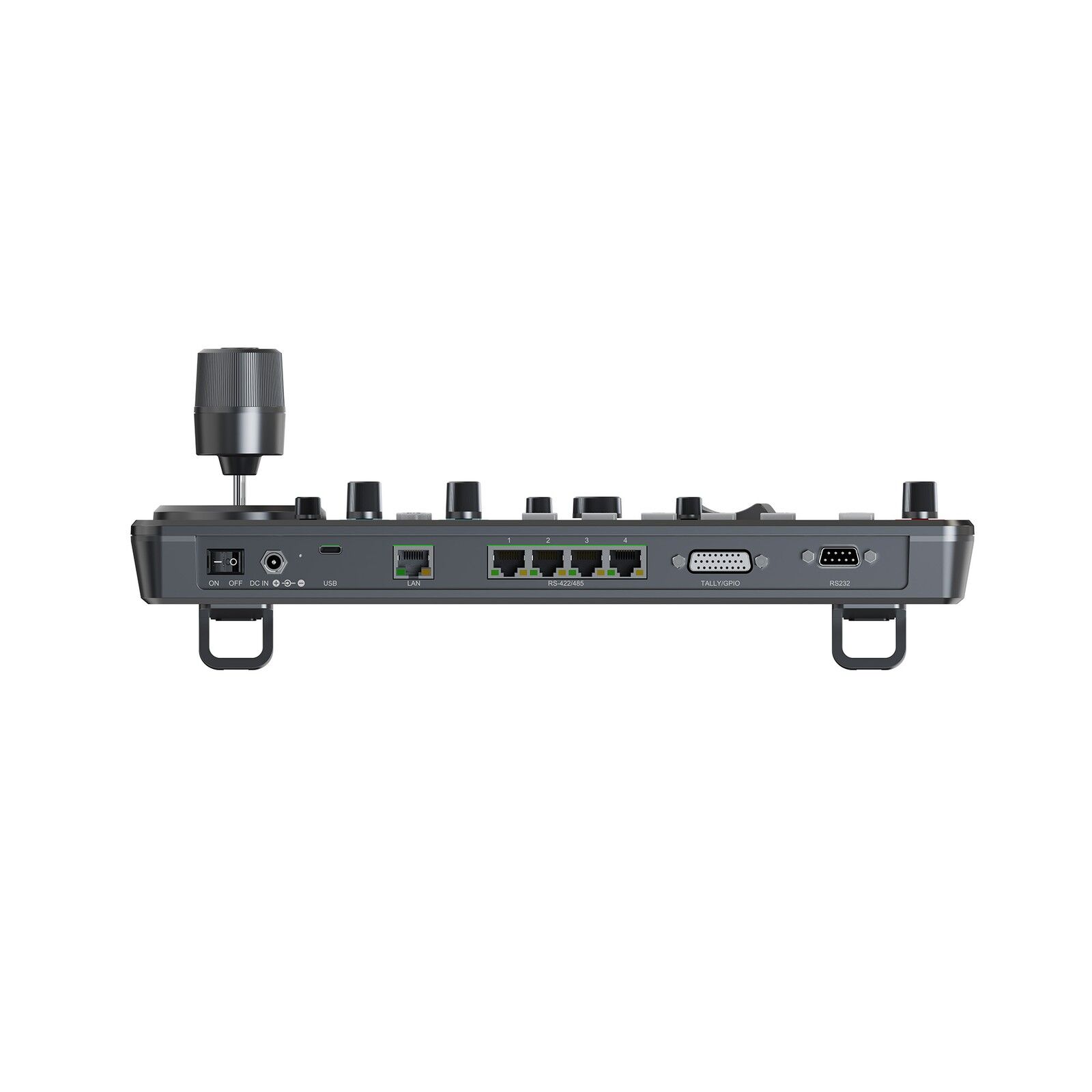

• Interfaces: 1x LAN RJ45 1000M (PoE/PoE+), 1x RS-232, 4x RS-485/RS-422, 1x Tally, USB 2.0 (upgrade)
• IP protocols: ONVIF, VISCA‑IP
• Serial protocols: Pelco‑D, Pelco‑P, VISCA; 2400‑115200 bps
• Display: 5 inch touch
• Controls: pan/tilt/zoom joystick; knobs for iris, shutter speed, gain, auto exposure, white balance
• Camera groups: 10, up to 10 cameras per group
• Cameras: up to 100 addresses, 255 presets
• Power: PoE or DC 7-24 V; consumption < 8 W
• Dimensions and weight: 340 x 195 x 110.2 mm with joystick; 1.73 kg
• Included: 12 V 2 A power adapter, Tally connector
