AVMatrix S6-PLUS – portable 6 channel SDI/HDMI video switcher with 17.3 inch screen, streaming and recording
GTIN: 6971118003532
Available or to order (see message in the cart)
SKU
AVM-S6-PLUS
€1,462.78 €1,199.00

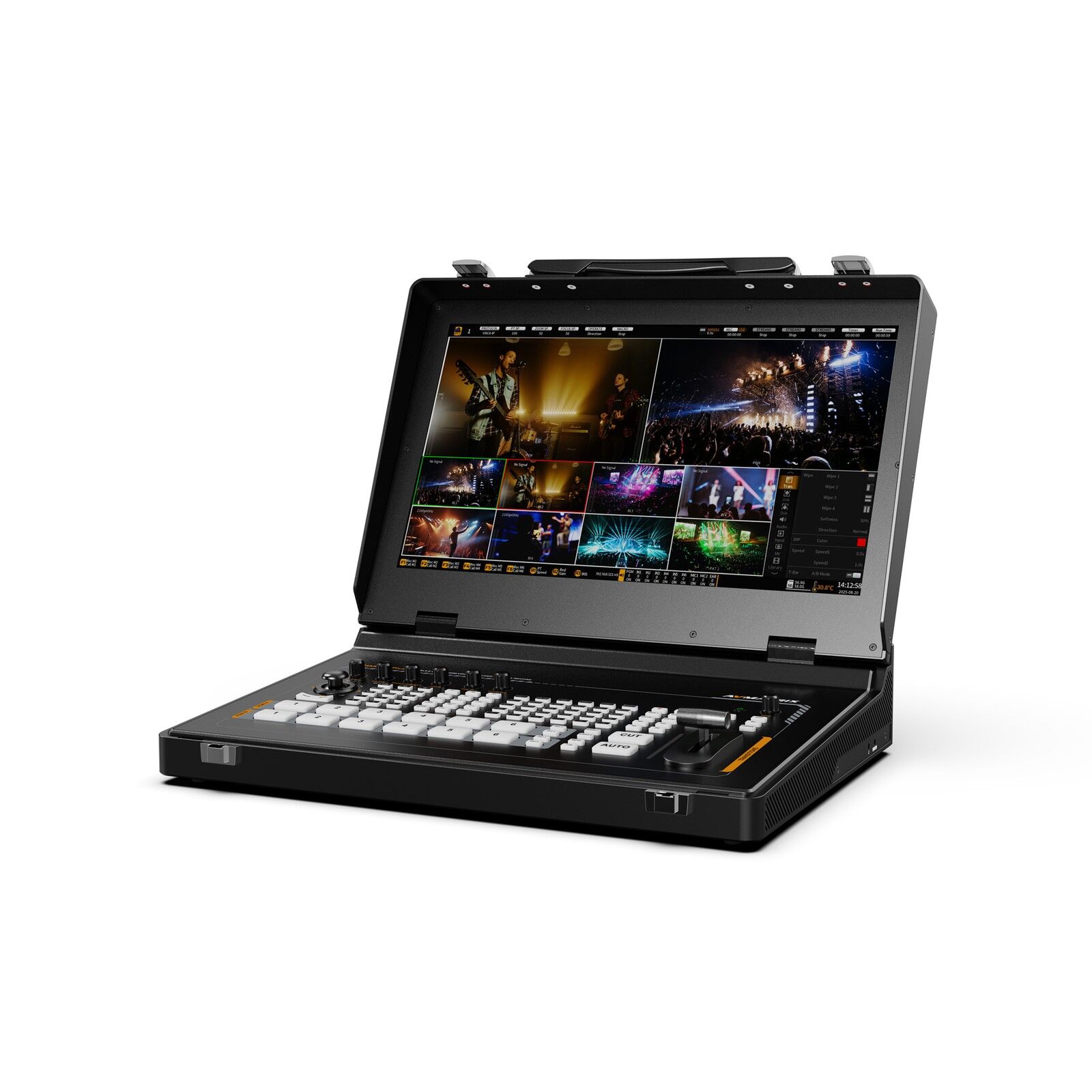

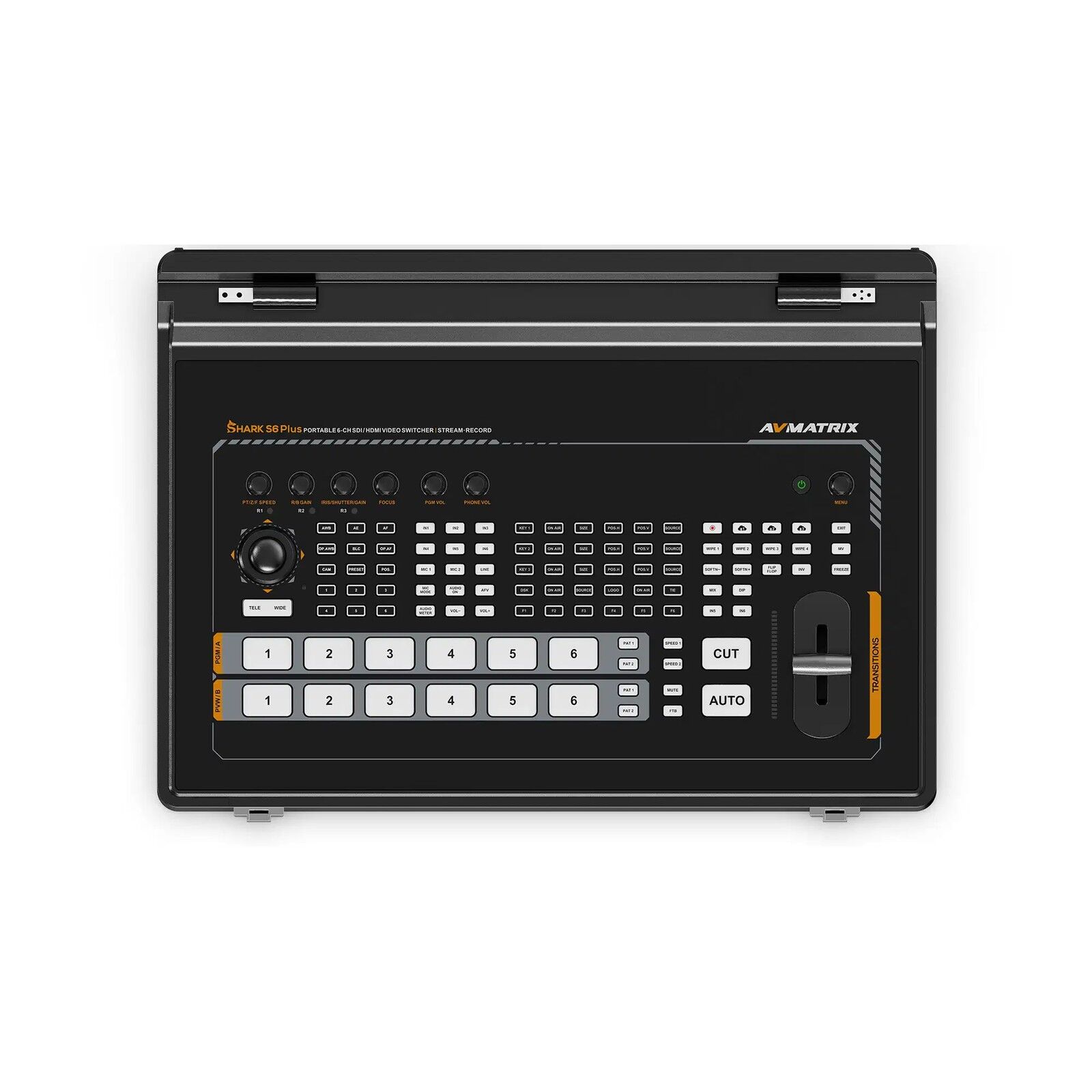

All-in-one portable video production unit: six 3G-SDI and two 4K HDMI inputs, built-in 17.3 inch Full HD screen, 8-channel audio mixer, chroma key, picture in picture, RTMP streaming, recording to USB disk or SD card and PTZ camera control.
AVMatrix S6-PLUS – portable 6 channel SDI/HDMI video switcher with 17.3 inch screen, streaming and recording
All-in-one portable video production unit: six 3G-SDI and two 4K HDMI inputs, built-in 17.3 inch Full HD screen, 8-channel audio mixer, chroma key, picture in picture, RTMP streaming, recording to USB disk or SD card and PTZ camera control.
- Video inputs: 6x 3G-SDI, 2x 4K HDMI

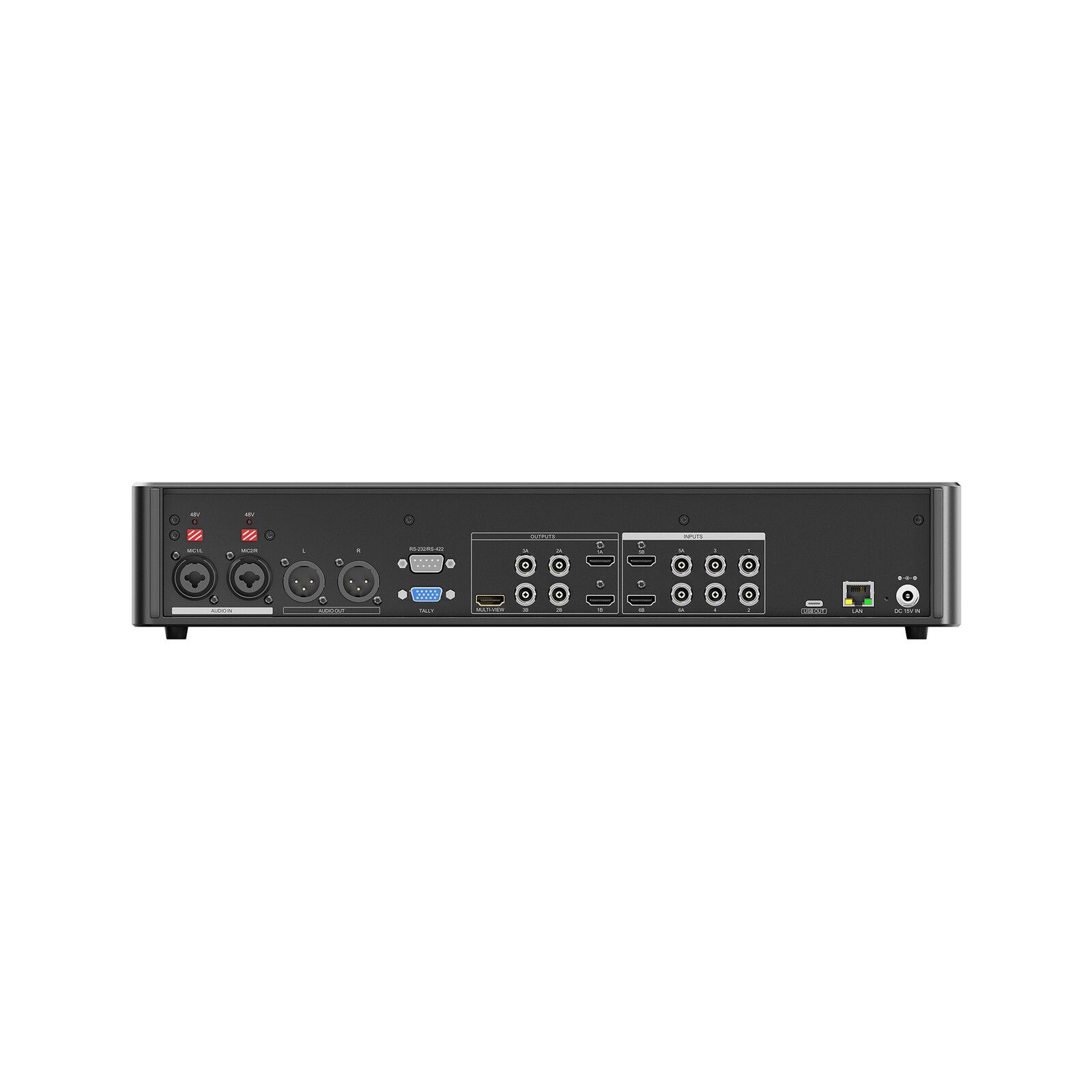

- Video outputs: 2x HDMI (A/B, PGM), 4x SDI (A/B, PGM), 1x HDMI multiview, 1x USB-C (UVC)
- Audio inputs: 2x XLR/TRS with +48 V phantom power, 1x 3.5 mm TRS line
- Audio outputs: 2x XLR, 1x 3.5 mm line, 1x 3.5 mm headphone
- Display: 17.3 inch Full HD LCD
- Audio mixer: 8 channels (6 video + 2 XLR/TRS)
- Keys: 3 upstream (chroma key, luma key, PIP), 1 downstream (DSK), 1 logo; up to 6 overlays
- Macros: 20
- Streaming: RTMP, up to 32 Mbps
- Recording: MP4/TS up to 1080p60 to USB disk or SD card
- USB capture: up to 1080p60, works with OBS, Zoom, Teams, Skype
- Control: LAN (streaming, PC control, PTZ), RS-232/RS-485, DB-15 Tally; PTZ VISCA, ONVIF, Pelco D/P
- Power: DC 9-24 V, 50 W max
- Dimensions and weight: 433 x 307 x 75.5 mm; 5.24 kg
- Included: 15 V 4 A power adapter, USB-C cable, DB-15 Tally connector
Specifications
- Display: 17.3 inch Full HD LCD
- Video in: 3G-SDI x 6, 4K HDMI x 2
- Video out: HDMI (A/B, PGM) x 2, SDI (A/B, PGM) x 4, HDMI Multiview x 1, USB-C (UVC) x 1
- Audio in: XLR/TRS x 2 with +48 V phantom power, 3.5 mm TRS line x 1
- Audio out: XLR x 2, 3.5 mm TRS line x 1, 3.5 mm TRS headphone x 1
- Network: LAN x 1 (streaming, PC control, PTZ control, upgrade)
- USB: USB-C x 1 (capture), USB-A x 1 (recording, configuration, media import/export)
- Tally: DB-15 x 1
- Serial: RS-232/RS-485 x 1, PTZ camera control

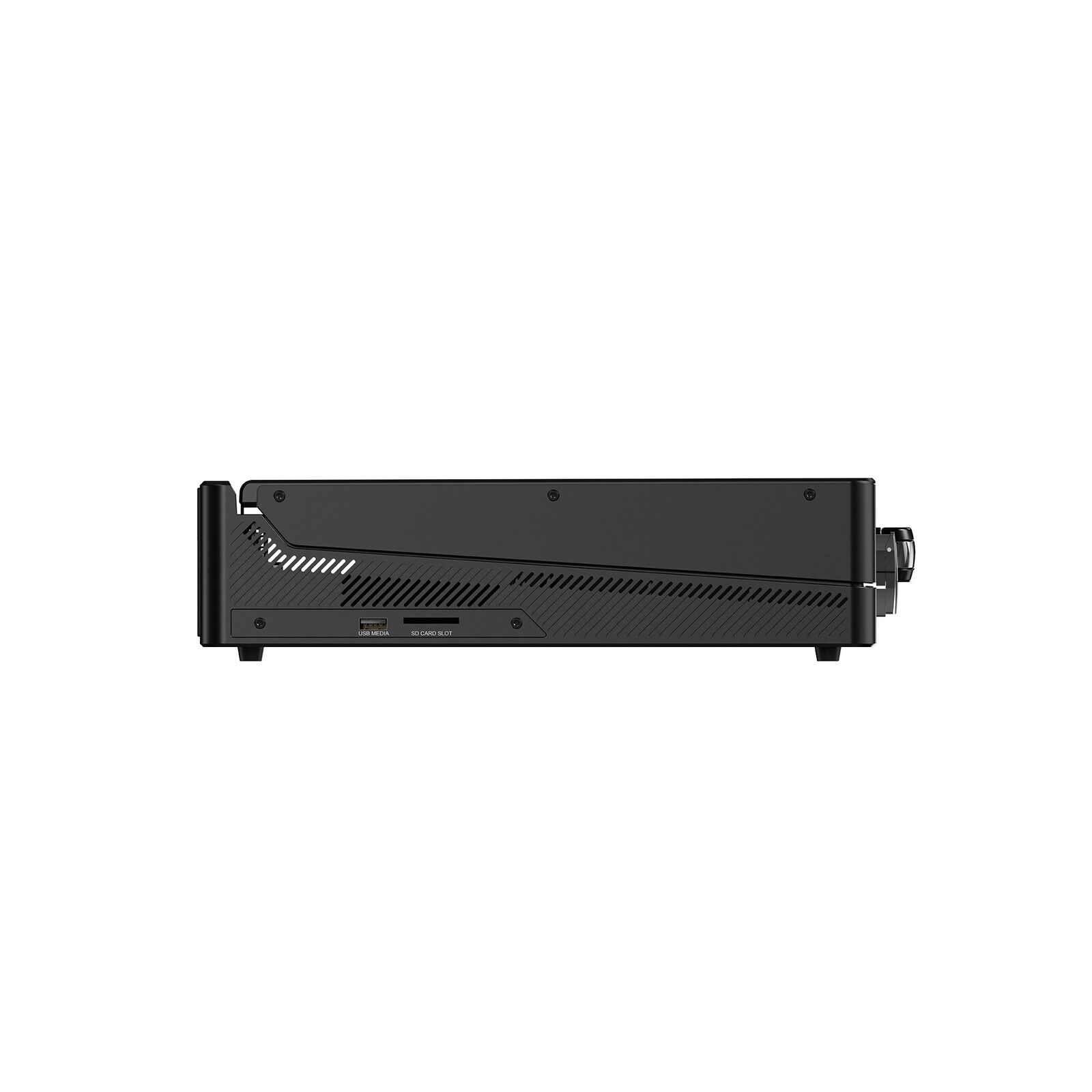

- Recording slots: USB disk x 1, SD card x 1
- SDI inputs: 1080p 60 to 23.98, 1080psF 30 to 23.98, 1080i 60/59.94/50, 720p 60 to 23.98, 625i 50, 525i 59.94
- HDMI inputs: 4K 60/50/30, 2K 60/50/30, 1080p and 720p 60 to 23.98, 576p 50, 480p 60/59.94
- SDI outputs: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
- HDMI outputs: 1080p 60/59.94/50/47.95/48/30/29.97/25/24/23.98, 1080i 60/59.94/50
- Video sampling: SDI YUV 4:2:2 10-bit; HDMI YUV, RGB full, RGB limited; colour space Rec. 709, Rec. 601
- USB capture out: YUY2, NV12, RGB32 up to 1080p60 (max 200 Mbps); Windows 7/8/10/11, Linux (kernel 2.6.38 or later), macOS 10.8 or later; works with OBS Studio, Skype, Zoom, Teams, YouTube Live
- Streaming: up to 32 Mbps
- Recording: USB disk, SD card; MP4/TS up to 1080p60 (32 Mbps); CBR/VBR
- Protocols: push stream RTMP; PTZ control VISCA, ONVIF, Pelco D/P
- Media: video MP4, TS; images JPG, PNG, BMP, JPEG up to 1920 x 1080; logo up to 650 x 650 pixels
- Macros: 20, with record and playback
- Keys: up to 6 overlays with adjustable size and position; 3 upstream keys (chroma key / luma key / PIP), 1 downstream key (DSK), 1 logo
- Audio mixer: up to 8 channels (6 video + 2 XLR/TRS)
- Power: 9-24 V, typical DC 15 V, 50 W max
- Temperature: operating 0 to 60 °C, storage -30 to 70 °C
- Dimensions: 433 x 307 x 75.5 mm
- Weight: 5.24 kg
In the box
- Switcher
- 15 V 4 A power adapter
- USB 3.0 Type-C cable
- Tally connector (DB-15)
| Product Condition | New |
|---|---|
| Manufacturer | AVMatrix |
| manufacturer code | S6-PLUS |
| Ean | 6971118003532 |
