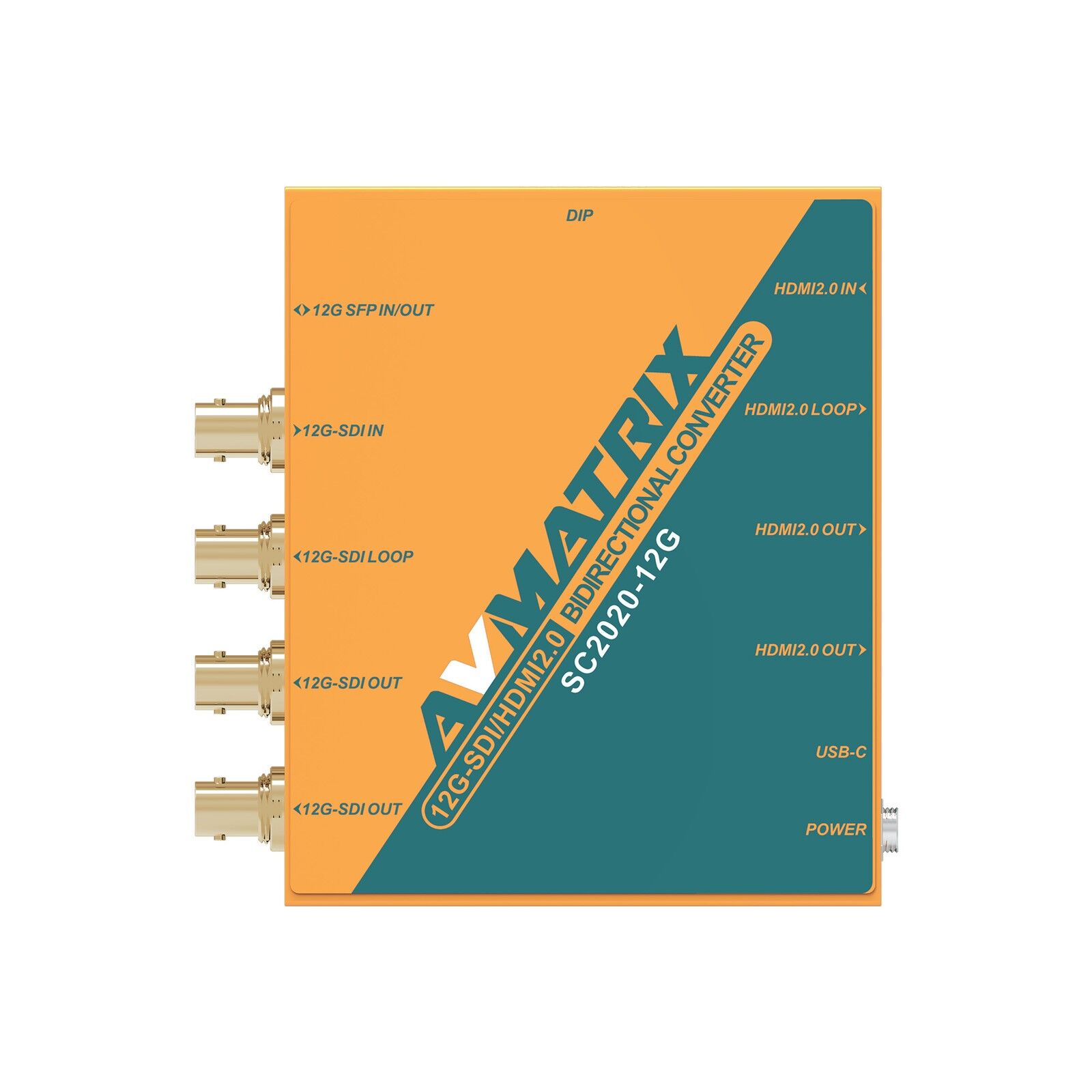

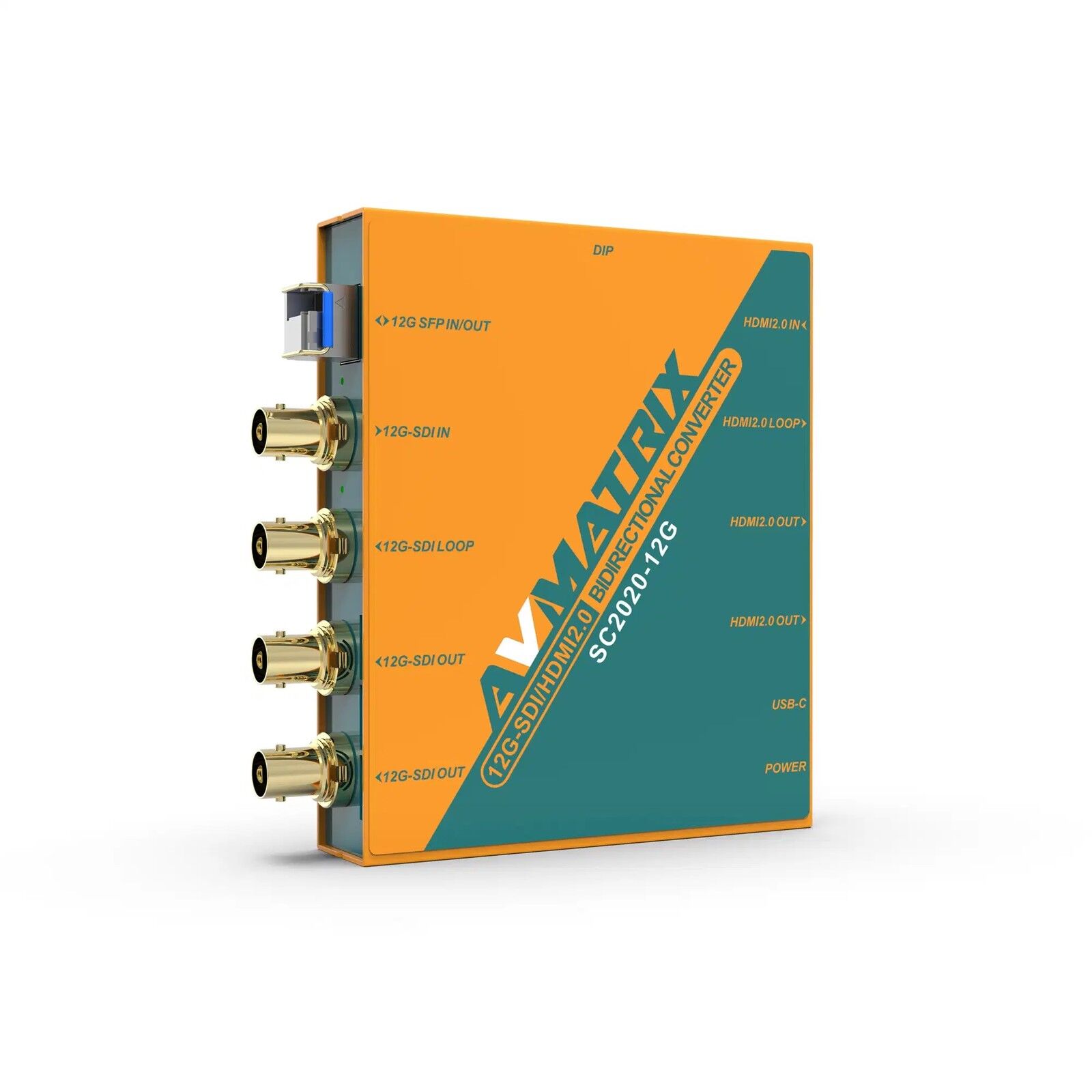

AVMatrix SC2020-12G – bi-directional 12G-SDI/HDMI 2.0 4K60 video converter with SFP fibre port
GTIN: 6971118003587
Available or to order (see message in the cart)
SKU
AVM-SC2020-12G
€340.38 €279.00
Bi-directional converter between 12G-SDI and HDMI 2.0 up to 4K60, with loop outputs and an SFP slot for optical fibre transport. Compact metal body, wide-range power input.
AVMatrix SC2020-12G – bi-directional 12G-SDI/HDMI 2.0 4K60 video converter with SFP fibre port
Bi-directional converter between 12G-SDI and HDMI 2.0 up to 4K60, with loop outputs and an SFP slot for optical fibre transport. Compact metal body, wide-range power input.
- Video inputs: 1x HDMI 2.0, 1x 12G-SDI or 12G fibre (one at a time)
- Video outputs: 1x HDMI 2.0 loop, 2x HDMI 2.0, 1x SDI loop, 2x 12G-SDI, 1x 12G fibre
- Resolutions: up to 4K60 (2160p, 1080p, 1080i, 720p)
- HDMI colour space: RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0
- USB: USB-C for upgrade and PC control
- Power: DC 12 V (5-24 V); consumption 15 W
- Dimensions and weight: 104 x 125.5 x 24.5 mm; 590 g
- Included: 12 V 2 A power adapter; SFP module, bracket and USB cable optional
- Manufacturer warranty: 3 years
Specifications
- Video input: HDMI 2.0 x 1, 12G-SDI / 12G fibre x 1 (one of the two selected)
- Video outputs: HDMI 2.0 loop x 1, HDMI 2.0 x 2, SDI loop x 1, 12G-SDI x 2, 12G fibre x 1 (SFP slot)
- USB: USB-C x 1 (upgrade, PC software control)
- Resolutions: up to 4K60 (2160p, 1080p, 1080i, 720p)
- HDMI colour space: full RGB 4:4:4, limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

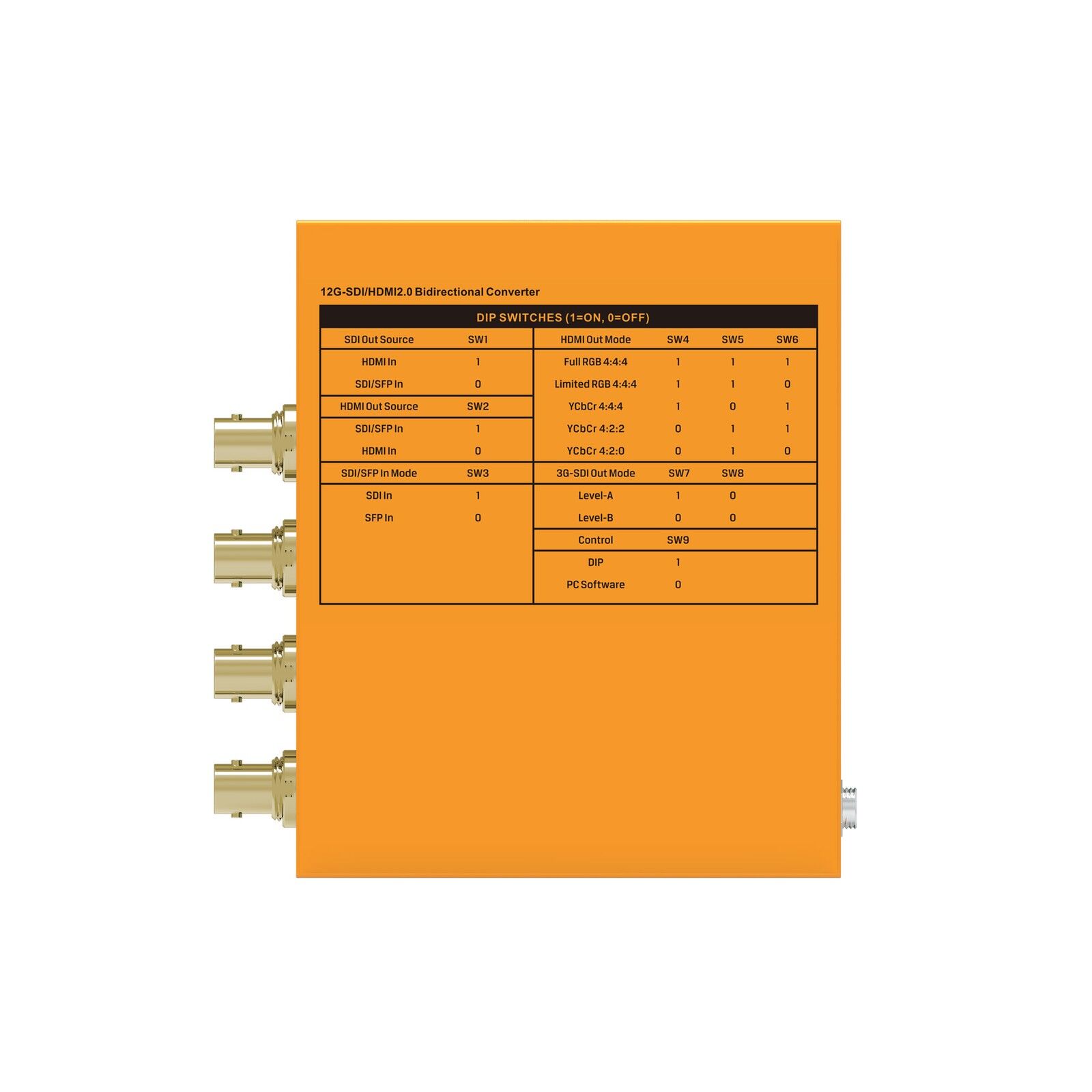

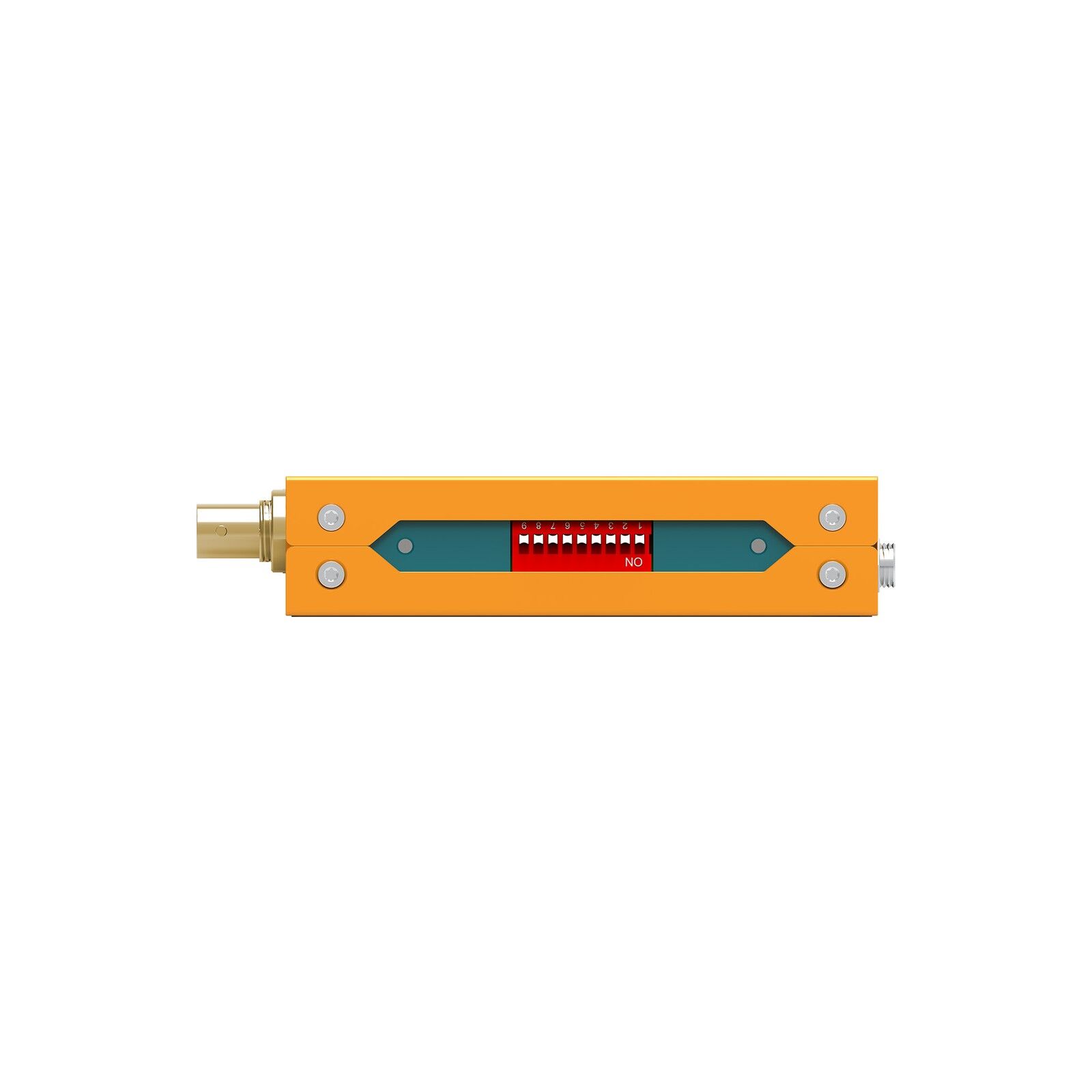

- Settings: DIP switches
- Power: DC 12 V x 1, wide range DC 5-24 V; consumption 15 W
- Dimensions: 104 x 125.5 x 24.5 mm
- Weight: 590 g
- Temperature: operating -20 to 60 °C, storage -30 to 70 °C
- Optional accessories: SFP module, mounting bracket, USB A-C cable
In the box
- SC2020-12G converter
- 12 V 2 A power adapter
| Product Condition | New |
|---|---|
| Manufacturer | AVMatrix |
| manufacturer code | SC2020-12G |
| Ean | 6971118003587 |
