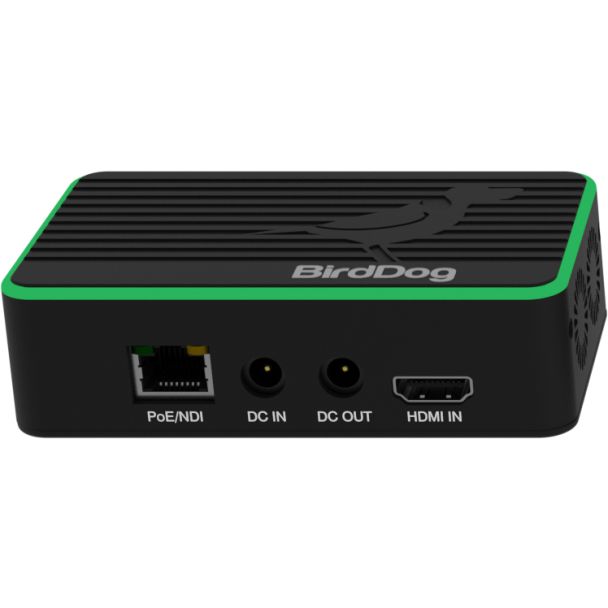

BirdDog Flex 4K IN video servers/encoder

BirdDog Flex 4K IN NDI Encoder BDFLEXENC

Flex 4K IN encodes an HDMI 2.0 source to Full NDI, with embedded HDMI audio and a 3.5 mm mic/line input. Its 12 V DC output supplies up to 15 W, enough to power a monitor, recorder or even the camera from the same Ethernet cable.

Flex is BirdDog's compact 4K NDI family, with a footprint only slightly larger than a credit card. It carries video, audio, tally, audio intercom, PTZ control and power over a single Ethernet cable, with PoE+ (802.3at). A thermal design with quiet fans keeps it cool, the integrated tricolour Halo Tally is visible to both camera operator and talent and needs no configuration with NDI production systems, and a 2.5 mm RS-232 (VISCA) port with the optional PTZ cable allows control of a PTZ camera. Settings are made through the embedded web panel, and the RESTful API allows custom automation.

Specifications

• Video formats: UHD 2160p 25/29.97/30, HD 1080p 25-60, 1080i 50/59.94, 720p 50/59.94/60
• Codec: Full NDI (full bandwidth i-frame)
• Video input: HDMI 2.0
• Audio: HDMI 2 channels 48 kHz, 3.5 mm mic/line input
• Power: PoE+ 802.3at or DC 12 V (30 W max)
• Power output: DC 12 V (15 W max)
• Dimensions: 107 x 63 x 31 mm
• Weight: 140 g
• PTZ control: 2.5 mm 4-pole RS-232 (VISCA)
• Network: Ethernet RJ45 1000BASE-T with PoE+ 802.3at
• Colour: black
