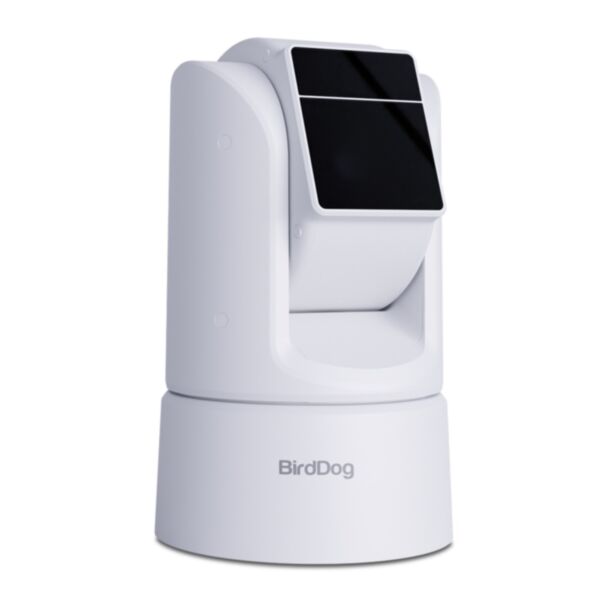

BirdDog O4 Outdoor Camera - White BDO4W

BirdDog O4 Outdoor PTZ Camera White BDO4W

BirdDog O4 is an outdoor 4K PTZ camera designed for stadiums, city infrastructure, outdoor events and perimeter monitoring. Its precision-machined die-cast aluminium body is IP66 rated and operates from -40 °C to +60 °C, with a built-in heater that prevents fogging and condensation and smudge-resistant hydrophobic lens coatings.

A 1/1.8" CMOS sensor captures 4K60 video, with a 30x optical zoom in 4K extending to 60x in HD, and a 500 m infrared laser emitter with IR cut filter and B&W mode for night vision. O4 streams High Bandwidth NDI and NDI HX3 simultaneously, plus SRT, RTMP and RTSP, and offers 12G-SDI and an SFP port for fibre. The I/O is housed in a sealed undercarriage with built-in cable management; power comes via PoE++ or DC input. AI tracking with adjustable motion profiles follows subjects smoothly, and the camera is controlled via BirdUI, the RESTful API or the BirdDog KBD.

Key features

• Sony 1/1.8" CMOS Ultra HD sensor, 4K60
• 30x optical zoom in 4K, 60x in HD, 8x digital
• IP66 die-cast aluminium enclosure, -40 °C to +60 °C
• Integrated heater against fog and condensation
• Hydrophobic, anti-fouling lens coating
• 500 m IR laser illuminator, IR cut filter and B&W mode
• Simultaneous High Bandwidth NDI and NDI HX3; SRT, RTMP, RTSP
• 12G-SDI output and SFP fibre port
• HDR with Rec.2020 colour space, WDR, full colour matrix
• AI auto tracking and AI gesture control
• FreeD support (UDP and embedded in NDI)
• Control via VISCA-IP, NDI, VISCA serial, Pelco-P/D and RESTful API 2.0

Specifications

• Colour: white
• Lens: f = 6.9 - 215 mm, F1.35 - F4.6
• Video formats: 2160p60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p30/29.97/25
• Effective pixels: 8.4 MP
• Presets: 255
• Audio: stereo unbalanced 3.5 mm TRS input/output
• Network: SFP fibre, 1 Gb Ethernet RJ45, PoE++
• Power: 24 V DC or PoE++, 40 W max
• Dimensions: 200 x 330 x 226 mm
• Weight: 7.6 kg
