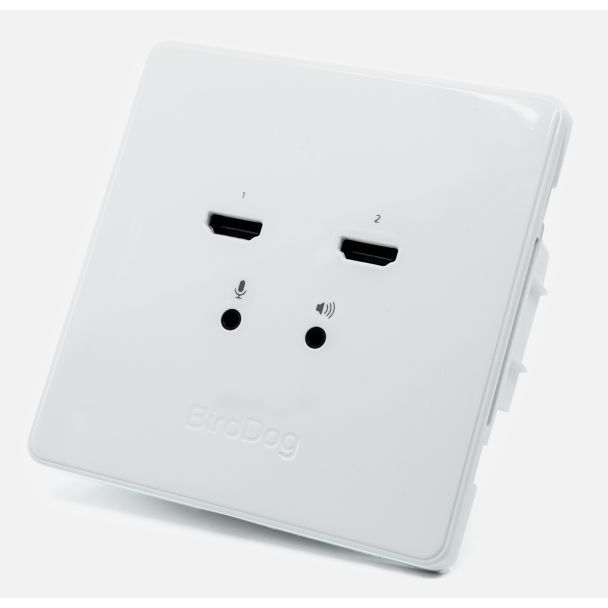

BirdDog NDI Wallplate Output (Dual HDMI) BDWPOUT

The BirdDog Wallplate Output has two independent HDMI outputs for driving content to screens: for example, the video-conference feed to one screen and the presentation or laptop screen share to another. The workflow can be automated with the RESTful API.

BirdDog NDI Wallplates are designed for elegant, permanent NDI installations such as boardrooms, meeting spaces, lecterns and stages. They are built on BirdDog's custom NDI chip, can be flush mounted in walls, tables and lecterns, and are powered by PoE, so a single Ethernet cable carries power, video and audio. Interchangeable faceplates, user-definable soft-glow status indicators, an embedded web management console and the RESTful API for automation complete the design.

Key features

• 2 independent HDMI outputs
• Full-bitrate, ultra-low latency NDI (i-frame) decoding
• Flush mounting in walls, tables and lecterns
• PoE powered: one cable for power, video and audio
• Interchangeable faceplates, soft-glow indicators
• Web management console and RESTful API

Specifications

• Video formats: 1080p 23.98/25/29.97/50/59.94, 1080i 50/59.94, 720p 50/59.94
• Video output: 2 x HDMI Type A, HDMI 1.4a, RGB or YCbCr
• Audio: 2-channel 24-bit 48 kHz HDMI embedded; 3.5 mm microphone input and stereo output
• Network: 10/100/1000 Ethernet RJ45
• Power: PoE 802.3af/at
• Colour: white
