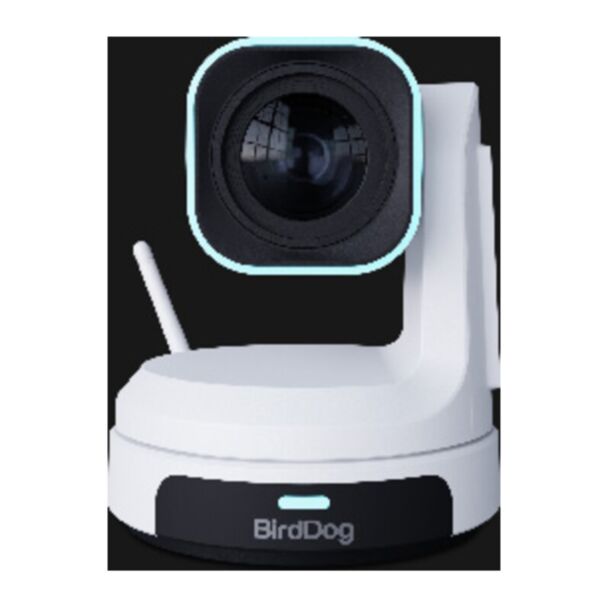

BirdDog X1 30x White BDX1-30W
GTIN: 9354873001512
1080p60 PTZ camera with 30x optical zoom, 52 mm filter ring, AI tracking and auto framing, Halo tally, E-Ink label, Wi-Fi, NDI HX3 with built-in NDI HX decoder, SRT, HDMI and USB-C UVC, PoE. White.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
BirdDog X1 30x White BDX1-30W
BirdDog X1 30x is a Full HD PTZ camera with a Sony 1/2.8" sensor and 30x optical zoom with a wider angle of view, recording up to 1080p60 (also in 9:16 vertical format) with HDR bracketing up to 30 fps and a 52 mm filter ring. Designed for smooth, controllable movement and easy integration into any workflow, it features AI tracking that follows the subject in real time, a Halo tally system with a large daylight-visible front border and illuminated interchangeable rear numbers, and an always-on E-Ink label showing information such as the network address even when the camera is off. It is the first PTZ camera range with a built-in NDI HX decoder (HX2 and HX3) for confidence monitoring, return feeds or teleprompter use. Video is output via NDI HX3 (over Ethernet or built-in Wi-Fi), SRT/RTMP, HDMI and USB-C UVC for direct use in Zoom and Teams; power comes from the included DC supply or PoE, with under 15 W consumption.
Key features
- AI tracking and auto framing
- Halo tally: RGB front border, illuminated rear numbers, ATEM tally support
- Always-on E-Ink label
- Built-in NDI HX2/HX3 decoder to HDMI
- NDI HX2/HX3, SRT, RTSP, RTMP streaming, H.264/H.265
- Wi-Fi 5 (IEEE 802.11ac) and 100M Ethernet with PoE
- HDMI and USB-C UVC 1.1 outputs
- Full colour matrix with 64-level saturation control of 6 colours, Kelvin control
- Control via IR remote, BirdDog KBD, VISCA, VISCA-IP, NDI, RS-232, RS-485, RESTful API 2.0, Q-SYS, Crestron, Companion
- NDI Mute for privacy
- Cloud remote management with Iris
In the box
- IR remote
- DC power supply
- Wi-Fi antenna (2 dBi)
Specifications
- Colour: white
- Sensor: Sony 1/2.8" CMOS Full HD, 2.07 MP effective
- Lens: f = 5.2 - 148.4 mm, F1.3 - 4.8, 30x optical zoom
- Horizontal angle of view: 58.1° (W) - 2.14° (T)
- Video formats: 1080p60/59.94/50/30/29.97/25, 720p60/50/30/25, 608x1080p (9:16) 60/59.94/50/30/29.97/25
- Filter ring: 52 mm
- Weight: 1.35 kg
- Pan/tilt: ±175°, -90° to +90°; 255 presets
- Minimum illumination: 0.5 lux
- Power: 12 V DC or PoE IEEE 802.3af, 13 W max
- Operating temperature: -10 to +40 °C
- Dimensions: 171.6 x 192.6 x 171.6 mm
| Product Condition | New |
|---|---|
| Manufacturer | BirdDog |
| manufacturer code | BDX1-30W |
| Ean | 9354873001512 |
