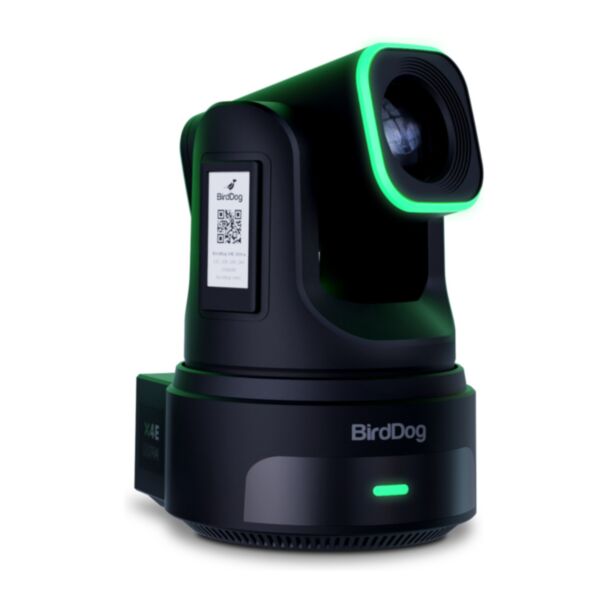

BirdDog X4E Ultra (Black) BDX4EUB

BirdDog X4E Ultra Black BDX4EUB

BirdDog X4E Ultra is the wired-first version of the X4 Ultra PTZ camera: the same Sony 1/1.8" sensor, image pipeline, AI features and professional connectivity, without built-in Wi-Fi or battery. It is designed for studios, venues, houses of worship and large installations with fixed wiring and controlled networks, and offers simpler integration and more accessible pricing for multi-camera deployments.

It delivers 4K60 video with a 20x optical zoom via BirdDog NDI HX3, SRT, RTMP and RTSP over 1 Gb Ethernet with PoE+, plus 3G-SDI, HDMI and USB-C UVC for direct use in Zoom and Teams. The Halo tally surrounds the lens with a large daylight-visible border, AI tracking keeps the subject framed, and the always-on E-Ink label gives quick access to the camera's network details.

Key features

• Sony 1/1.8" CMOS Ultra HD sensor, 20x optical zoom
• 4K up to 2160p60
• AI tracking (presenter, zone) and smart automatic framing
• Halo tally and rear number tally (red/green), ATEM tally support
• 2.13" always-on E-Ink label
• NDI HX2/HX3, SRT, RTSP and RTMP streaming, H.264/H.265
• 3G-SDI, HDMI and USB-C UVC outputs
• 3.5 mm TRS line/mic input
• Control via IR remote, BirdDog KBD, VISCA, VISCA-IP, NDI, ONVIF, RS-232 and RESTful API 2.0
• Wired-only: no Wi-Fi, no internal battery

In the box

• IR remote

Specifications

• Colour: black
• Lens: f = 6.25 - 125 mm, F1.58 - 3.95
• Horizontal angle of view: 60° (W) - 3.5° (T)
• Video formats: 2160p60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i59.94/50, 720p60/59.94
• Effective pixels: 8.42 MP; minimum illumination 0.5 lux
• Pan/tilt: ±170°, -30° to +90°; 255 presets
• Power: 12 V DC or PoE+ IEEE 802.3at
• Operating temperature: 0 to +40 °C
• Dimensions: 140.2 x 188.9 x 203.2 mm
• Network: 1 Gb Ethernet, PoE IEEE 802.3at
