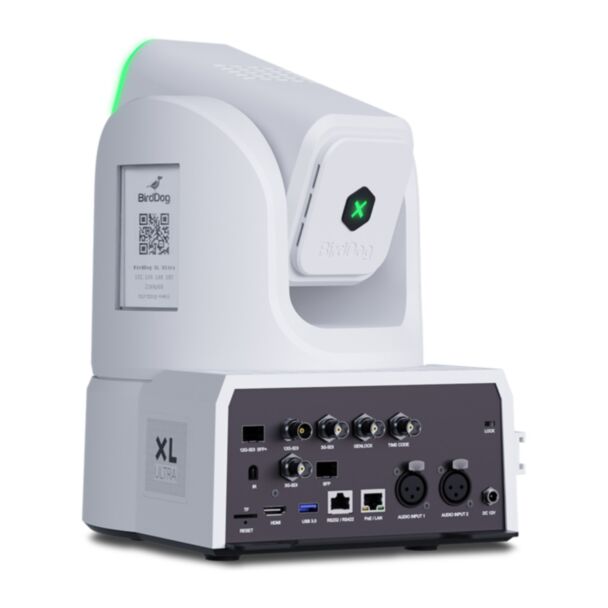

BirdDog XL Ultra - White BDXLUW
GTIN: 9354873001376
4K60 PTZ camera with 4/3" sensor, 20x optical zoom (40x HD) and second 4K panoramic camera, ND filters, genlock, FreeD, High Bandwidth NDI + NDI HX, 12G-SDI, XLR, PoE++. White.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
BirdDog XL Ultra White BDXLUW
BirdDog XL Ultra is a cinematic PTZ camera for broadcast, virtual production and premium AV. Its 4/3" Sony CMOS sensor with a 20x optical zoom (40x in HD, TELE mode) records 4K60 with shallow depth of field and strong low-light performance. A second built-in 100° panoramic camera with a 1/1.8" sensor also shoots 4K60: the two cameras are independently controllable and can output at the same time, over NDI or separately via SRT, RTSP, RTMP, HDMI or 3G-SDI for the wide shot.
Designed for LED walls and XR stages, it has an optical low-pass filter against moiré, genlock and timecode, FreeD for AR/XR workflows, built-in ND filters and a full colour matrix. It streams High Bandwidth NDI and NDI HX simultaneously and provides 12G-SDI, 3G-SDI, HDMI, two balanced XLR inputs with phantom power, RS-232/422 control, PoE++ and SFP for fibre or optical 12G-SDI. AI tracking with adjustable speed, style and sensitivity, RGB Halo tally, rear number tally and side-mounted E-Ink displays complete the package.
Key features
- Primary camera: 4/3" Sony CMOS 5K sensor, 20x optical zoom, PDAF autofocus
- Secondary panoramic camera: 1/1.8" Sony CMOS 4K sensor, 93° diagonal
- 4K60 on both cameras, independently controllable, simultaneous outputs
- Built-in ND filters (1, 1/4, 1/16, 1/64) and OLPF
- Genlock, timecode and FreeD (UDP)
- High Bandwidth NDI (SpeedHQ), NDI HX3, NDI HX2, SRT, RTSP, RTMP
- 12G-SDI, 2 x 3G-SDI, HDMI 2.0, USB-C, SFP+ cage (12G-SDI)
- 2 balanced XLR audio inputs with phantom power
- AI presenter tracking, auto framing, zone tracking and gesture control
- RGB Halo tally, rear number tally, ATEM tally support
- 2 x 3" E-Ink displays
- MicroSD recording, cold shoe mount, Kensington lock
Specifications
- Colour: white
- Primary lens: f = 9.8 - 186 mm, F2.8 - F4.5
- Primary horizontal field of view: 71° - 4°
- Secondary lens: fixed 4.4 mm, F2.0
- Video formats: 2160p60/59.94/50/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/59.94/50
- Pan/tilt: ±170°, -30° to +90°; 256 presets
- Network: 1 GbE with PoE++, SFP cage
- Control: VISCA-IP, NDI, VISCA serial, Pelco-P, Pelco-D; RS-232, RS-422
- Power: 12 V DC or PoE++, under 60 W
- Operating temperature: 0 to +40 °C
- Dimensions: 218.6 x 291.6 x 263.3 mm
- Weight: approx. 4 kg
| Product Condition | New |
|---|---|
| Manufacturer | BirdDog |
| manufacturer code | BDXLUW |
| Ean | 9354873001376 |
