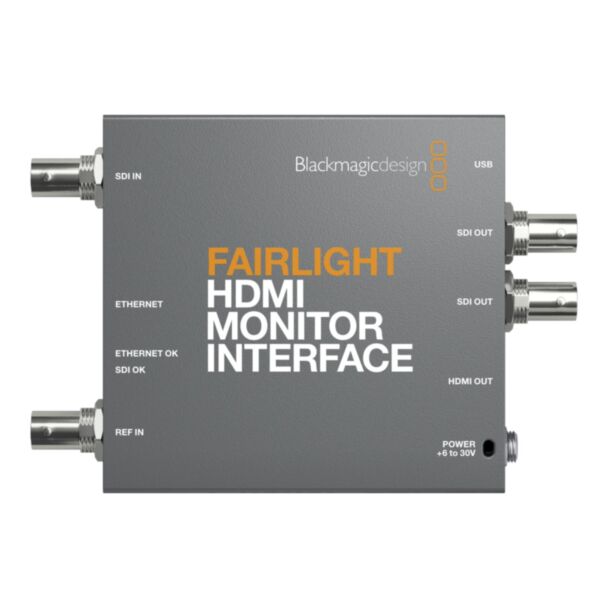

Blackmagic Design Fairlight HDMI Monitor Interface
GTIN: 9338716007015
In stock
SKU
BMD-DV/RESFA/MONINT
Special Price €268.25 €219.88 Regular Price €291.58
Compact converter that sends the graphical feedback of the Fairlight Console Channel Control to an HDMI monitor, for consoles built into custom desks.
Blackmagic Design Fairlight HDMI Monitor Interface
Fairlight HDMI Monitor Interface is for those using Fairlight Console modules in a custom desk with HDMI monitors: it generates on the monitor the graphical feedback of the Fairlight Console Channel Control, just as the Fairlight Console LCD Monitor would.
The compact converter fits on the back of the monitor and converts the console Ethernet data to HDMI. The input can also be switched to SDI to view a video signal.
Technical specifications
Connections
| Ethernet | Ethernet supports 10/100/1000 BaseT. |
|---|---|
| HDMI Video Output | HDMI Type A out. |
| SDI Inputs | 1 x 3G‑SDI |
| SDI Video Outputs | 2 x 3G‑SDI |
| SDI Rates | 1.5G, 3G. |
| Updates and Configuration | 1 x USB Type‑C for software configuration and software updates. |
Standards
| HDMI Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|---|---|
| SDI Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. |
| SDI Video Sampling | 4:2:2 |
| SDI Color Precision | 10-bit |
| SDI Color Space | YUV |
Updates and Configuration
| 1 x USB Type‑C for software configuration and software updates. |
Software
| Internal software upgrade via updater application. |
Settings Control
| Fairlight Studio and Console setup utility software when connected by USB. |
Power Requirements
| Power Supply | +12V universal power supply included with international socket adapters for most countries. |
|---|---|
| Power Consumption | 6W max. |
| Operational Voltage Range | 6 - 30V DC. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
| Fairlight HDMI Monitor Interface 12V universal power supply with international socket adapters for most countries. |
Warranty
| 1 Year Limited Manufacturer's Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | DV/RESFA/MONINT |
| Ean | 9338716007015 |
| Taric Code | 8543709099 |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI |
| Output interface | SDI/HDMI |
