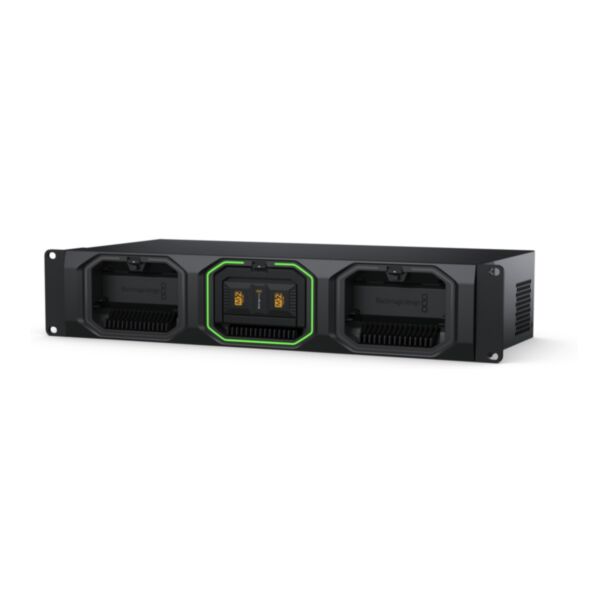

Blackmagic Design Media Dock – Network dock for 3 URSA Cine Media Modules
GTIN: 9338716008944
Media Dock: 2RU rack dock for 3 Blackmagic Media Modules from URSA Cine cameras, with 4 x 10G Ethernet ports, network sharing and Blackmagic Cloud upload.
Blackmagic Design Media Dock – Network dock for 3 URSA Cine Media Modules
Blackmagic Media Dock accelerates post production: it takes up to 3 Blackmagic Media Modules from URSA Cine cameras and shares them on the network at high speed, with upload to Blackmagic Cloud.
What it is for
The 4 x 10G Ethernet ports let 4 edit stations connect and work directly on freshly shot files without copying them first; up to 200 computers can access files over SMB or NFS. Modules are hot swappable.
Connections
4 x 10G BASE-T Ethernet ports, USB-C with Ethernet over USB, HDMI output for showing media status, user activity and Cloud sync on a monitor, dual power inputs for redundancy, 2RU rack size.
At emoc.com this product can be combined with the Blackmagic Design extended warranty.
Technical specifications
Connections
| Interface | 3 x removable and hot-swappable Blackmagic Media Modules. |
|---|---|
| 10G Ethernet Ports | 4 x 10G BASE-T |
| USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
| HDMI Monitor Outputs | 1 |
| Computer Interface | USB-C or Ethernet for shared file access, configuration and software updates. |
File Sharing Protocol
| Protocol | NFS (HFS+ formatted disks only) SMB |
|---|---|
| Computer Connections | 200 max. |
Storage
| Storage Type | Up to 3 Blackmagic Media Modules. |
|---|---|
| External Storage Format | Blackmagic (formatted in camera) |
Displays
| HDMI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
|---|---|
| Monitor Out Displays | Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
| Status Indicator | LED bezel indicator lights around media module bays. |
Device Control
| External Control | USB-C or Ethernet for configuration and software updates. |
|---|
Software
| Software Included | Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port |
|---|
Physical Installation
| 2 rack units. |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
|---|---|
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | DWCLDB/DOCNMD03 |
| Ean | 9338716008944 |
| Taric Code | 8517620000 |
| Warranty | 12 Month Limited Manufacturer’s Warranty. |
| Product specifications | ColourProduct colour Black Ports & interfacesRJ-45 ports quantity 4 Operational conditionsStorage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 482 mm Depth 206 mm Weight & dimensionsHeight 90 mm Technical detailsCompatibility Blackmagic URSA Cine Weight 4.96 kg Windows operating systems supported Windows 10, Windows 11 Logistics dataCountry of origin Indonesia |
| Device type | Media dock |
| Network | 10G Ethernet |
