Blackmagic Design Ultimatte 12 4K
GTIN: 9338716007626
In stock
SKU
BMD-ULTMKEY12/C/4K
Special Price €2,632.03 €2,157.40 Regular Price €2,860.90
Real time compositing processor for live keying in HD and Ultra HD, with 12G-SDI connections, SMPTE 2110 input and output and sub pixel processing.

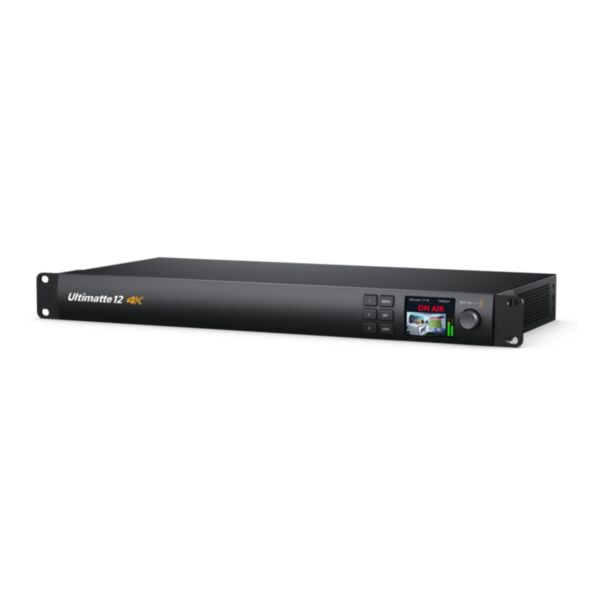

Blackmagic Design Ultimatte 12 4K
Ultimatte 12 4K is a real time compositing processor for keying live action video with broadcast graphics, virtual sets and more. Its algorithms and color science handle edges, color separation and spill suppression.
The 12G-SDI design lets you work in HD and Ultra HD with sub pixel processing. It has 8 SDI inputs and 9 SDI outputs, plus one SMPTE 2110 video input and output over Ethernet.
Technical specifications
Connections
| SDI Video Inputs | 8 |
|---|---|
| SDI Video Outputs | 9 |
| SDI Video Loop Outputs | 7 Reclocked SD, HD, Ultra HD for corresponding inputs. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| ST 2110 Video Inputs | 1 |
| ST 2110 Video Outputs | 1 |
| Video Input Re-Sync | On all inputs. |
| Reference Connections | 1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet Tri-Sync, Black Burst and PTP. |
| GPIO | DE15 |
| Ethernet | Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool. |
| Computer Interface | 1 x USB-C 3.0 for device configuration and software updates. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709, REC 2020. |
| Multiple Rate Support | Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. |
Composite Sources
| Foreground | 1 x 12G-SDI In with Loop Out 1 x RJ45 Ethernet for SMPTE 2110 IP video |
|---|---|
| Background | 1 x 12G-SDI In with Loop Out Still from Media Pool |
| Background Matte | 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
| Garbage Matte | 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
| Holdout Matte | 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
| Layer | 1 x 12G-SDI In with Loop Out Still from Media Pool |
| Layer Matte | 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool |
Composite Outputs
| Fill | 2 x 12G-SDI |
|---|---|
| Matte | 2 x 12G-SDI |
| Program | 2 x 12G-SDI, 1 x RJ45 Ethernet for SMPTE 2110 IP video |
| Talent | 2 x 12G-SDI |
Monitor
| Monitor In | 1 x 12G-SDI for monitor cascade |
|---|---|
| Monitor Out | 1 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction. |
Media Pool
| Background Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
|---|---|
| Background with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Layer Image Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
| Layer with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Garbage Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Media Pool Memory | 6GB non-volatile internal storage. |
Displays
| Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus. |
Control
| Front Panel | 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob. |
|---|---|
| Control Connection | Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. |
| Software Control | Ultimatte Software Control supported on Mac™ or Windows™ computers. |
| Hardware Control Panel | Ultimatte Smart Remote 4 |
| Custom Control | Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual. |
IP Compliance
| SMPTE 2110-20 | IGMP v2 |
|---|---|
| SMPTE 2110-21 | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 | Audio Conformance level: Level C |
| SMPTE 2110-40 | Access to SMPTE ancillary data stream RP 188/SMPTE 12M-2 |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
Software
| Software Updates | Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. |
|---|---|
| Configuration | Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB. |
Power Requirements
| Power Supply | 2 x Internal 100-240V AC, 50/60Hz |
|---|---|
| Power Usage | 54W |
Physical Installation
| 1 rack unit height |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing. |
What's Included
| Ultimatte 12 4K Welcome wallet with QR code for software download |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | ULTMKEY12/C/4K |
| Ean | 9338716007626 |
| Taric Code | 8543709099 |
| Rack mounting | Yes |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product specifications | DisplayBuilt-in display* Yes Display type LCD Display diagonal 5.59 cm (2.2") Ports & interfacesBNC output ports 1 Ethernet LAN (RJ-45) ports 1 PowerAC input voltage 100 - 240 V AC input frequency 50/60 Hz Power consumption (max) 54 W DesignRack mounting* Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 482 mm Depth 234.3 mm Height 44.2 mm Weight 3.3 kg |
| Built-in display | Yes |
| Maximum resolution | Ultra HD |
| Device type | Keyer |
| SDI rate | 12G |
| SD support (PAL/NTSC) | Yes |
| Video connection type | SDI, IP SMPTE 2110 |
| Reference input | Yes |
| Network | 10G Ethernet |
| Power | AC mains |
