Cambo Actus-MV camera body + ACDB-991 HV bayonet rear mount +ACDB-254

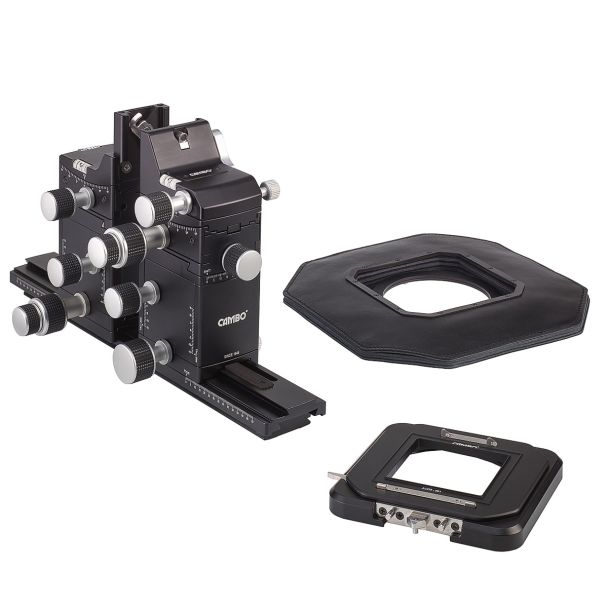

Cambo Actus-MV HV Kit with ACDB-991 Hasselblad V Adapter and ACDB-254 Bellows

The Cambo ACMV-HV kit is the Actus-MV base completed with the ACDB-991 digital back adapter and the ACDB-254 bellows, set up for digital backs with the Hasselblad V interface. The ACDB-991 adapter has integrated rotation from landscape to portrait orientation.

The Actus-MV is a fully adjustable, geared view camera that remains compact enough for field use and works with digital backs, mirrorless bodies and DSLRs. Front and rear standards can be separated from the optical bench without tools, and the front standard accepts all Actus lens plates.

Notes

• Lenses and lens plates are optional and not included

In the box

• 1 x Actus-MV base
• 1 x ACDB-254 bellows
• 1 x ACDB-991 digital back adapter

Specifications

• Tilt front and rear: 15/15 degrees
• Swing (front): 30/30 degrees
• Rise/fall (front and rear): 15/15 mm
• Side shift (front and rear): 20/20 mm
• Maximum extension (standard rail and bellows): 298 mm, lens mount to bayonet mount
• Dimensions: 20 x 12 x 28 cm (without rail, with DB frame)
• Weight: 2.8 kg
