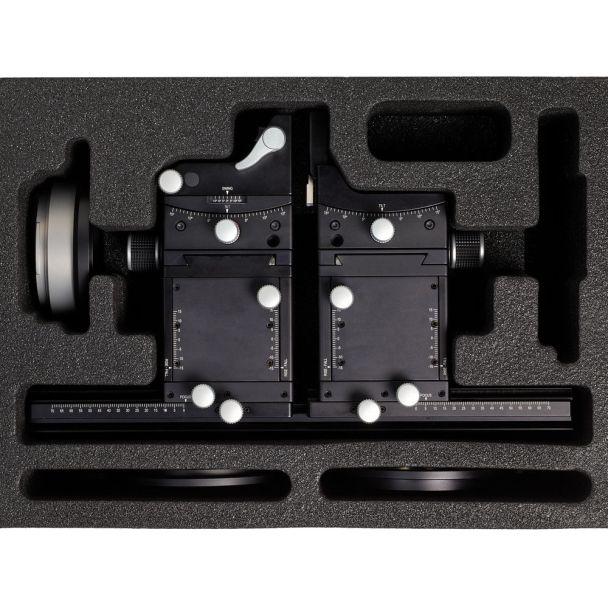

Cambo Actus-MV camera body + ACMV-86E+AC-214 bayonet mount

Cambo Actus-MV DC Kit with ACMV-86E Bayonet Holder and AC-214 Bellows

The Cambo ACMV-DC kit is the Actus-MV base completed with the ACMV-86E universal bayonet holder and the AC-214 bellows. The ACMV-86E accepts a wide range of bayonets for mirrorless and DSLR cameras and has integrated rotation from landscape to portrait. The bayonet for the camera body used must be added.

The Actus-MV is a fully adjustable, geared view camera that remains compact enough for field use and works with digital backs, mirrorless bodies and DSLRs. Front and rear standards can be separated from the optical bench without tools, and the front standard accepts all Actus lens plates.

Compatibility

• Bayonets (one required): AC-780 (Canon EOS), AC-781 (Canon M), AC-782 (Canon R), AC-783 (Nikon F), AC-785 (Leica M), AC-786 (Sony E), AC-787 (Pentax K), AC-788 (Micro Four Thirds), AC-789 (Olympus OM-D), AC-790 (Fujifilm X)

Notes

• Lenses and lens plates are optional and not included

In the box

• 1 x Actus-MV base
• 1 x AC-214 bellows
• 1 x ACMV-86E bayonet holder

Specifications

• Tilt front and rear: 15/15 degrees
• Swing (front): 30/30 degrees
• Rise/fall (front and rear): 15/15 mm
• Side shift (front and rear): 20/20 mm
• Maximum extension (standard rail and bellows): 298 mm, lens mount to bayonet mount
• Dimensions: 20 x 12 x 28 cm (without rail, with DB frame)
• Weight: 2.8 kg
