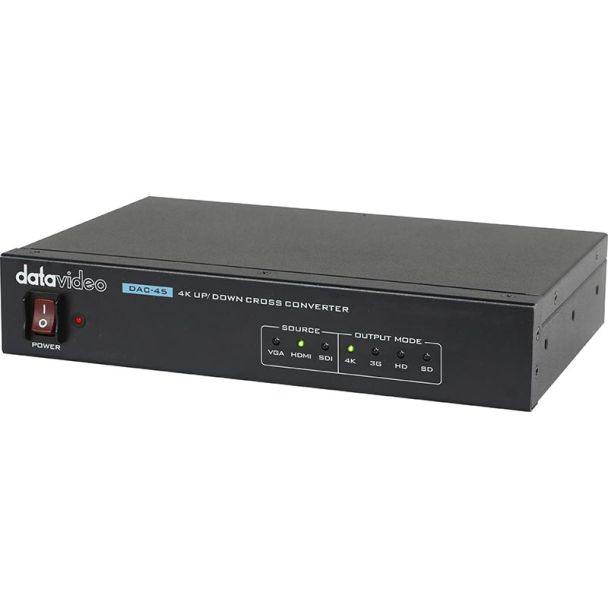

DataVideo DAC-45 Active video converter 3840 x 2160

Datavideo DAC-45 4K Up/Down Cross Converter

The Datavideo DAC-45 is the successor to the DAC-70 converter: it offers the same functions with the addition of 4K HDMI support. Its built-in super resolution engine up-converts from SD 480 resolution up to 4K with good image quality and sharpness. It can also convert a VGA signal to 4K HDMI or HD-SDI, and since all outputs are active at the same time it can be used as a distribution amplifier. The DAC Center software allows adjustment of the HDMI colour space, so consumer laptops can be used in a professional workflow.

Key features

• Super resolution engine for 4K up-conversion
• Resolution and frame rate up/down conversion
• Built-in de-interlacer and interlacer (I/P conversion)
• All outputs active at the same time: usable as a distribution amplifier
• Proc amp and audio embedder
• HDMI colour space adjustment via DAC Center software
• Converts VGA to 4K HDMI or HD-SDI
• DIP switch settings chart printed on the bottom
• HDMI strain relief to keep the cable in place
• Optional RMK-1 rack kit holds two DAC-45 units in a 19" rack

Specifications

• Maximum resolution: 3840 x 2160
• Supported resolutions: 800 x 600, 1280 x 1024, 1280 x 720, 1400 x 1050, 1920 x 1080, 3840 x 2160
• Input voltage: 12 V
• Power consumption: 9.4 W
