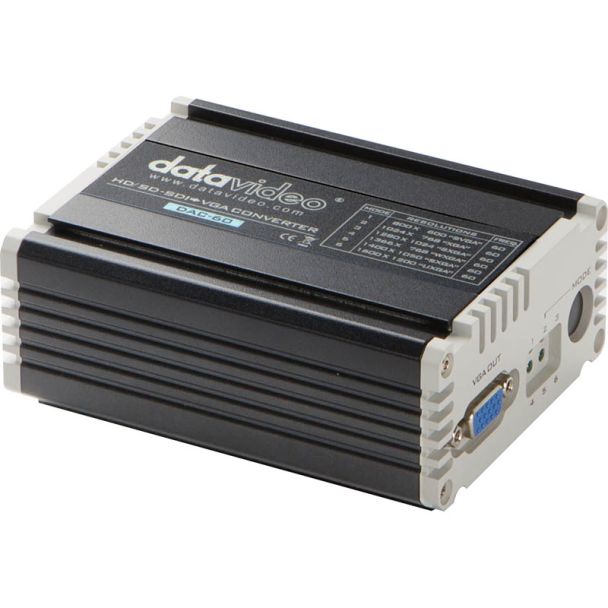

DataVideo DAC-60 Passive video converter 1920 x 1200 pixels
GTIN: 0672255004005
In stock
SKU
DAT-2000-2260
Special Price €486.21 €398.53 Regular Price €511.79
HD/SD-SDI to VGA converter for projectors, plasma and LCD screens, with SDI loop-through and colour, brightness and contrast adjustment via a Windows USB application.
Datavideo DAC-60 SDI to VGA Converter
The Datavideo DAC-60 converts HD/SD-SDI to VGA and is designed for use with equipment such as projectors, plasma TVs and LCD screens. Brightness, contrast, hue and saturation can be adjusted with the supplied Windows application, which connects via USB; the settings are retained when the computer and power are disconnected. The SDI loop-through output is not affected by the adjustments made to the VGA signal.
Key features
- Brightness, contrast, hue and saturation adjustment
- Windows application connected via USB for adjustments
- Settings retained after disconnecting computer and power
- SDI loop-through unaffected by VGA adjustments
- Dual output (SDI and VGA)
Specifications
- Input: 1 x 3G/HD/SD-SDI
- Output: 1 x VGA (D-Sub), SDI loop-through
- Video modes: 480i, 576i, 720p, 1080i, 1080p
- VGA resolutions: 800 x 600 to 1920 x 1080 (60 Hz), up to 1920 x 1200
- Operating voltage: 12 V
- Power consumption: 3.6 W
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2000-2260 |
| Ean | 0672255004005 |
| Modified on | 10-02-2018 |
| Product title | DataVideo DAC-60 Passive video converter 1920 x 1200 pixels |
| Long Product Name | SDI to VGA Converter |
| Product specifications | FeaturesConverter type* Passive video converter Product colour Black, Grey VideoMaximum video resolution* 1920 x 1200 pixels Supported video modes 480i, 576i, 720p, 1080i, 1080p Analog signal format system NTSC, PAL Ports & interfacesHost interface* SDI Output interface* VGA Ports & interfacesVideo in 1x 3G/HD/SD - SDI VGA (D-Sub) output ports 1 PowerOperating voltage 12 V Power consumption (typical) 3.6 W Other featuresSupported resolutions 800x600 (60Hz), 1024x768 (60Hz), 1280x800 (60Hz), 1280x1024 (60Hz), 1366x768 (60Hz), 1400x1050 (60Hz), 1600x1200 (60Hz), 1920x1080 (60Hz) |
| Essential qualities |
|
| Converter type | Passive video converter |
| Maximum video resolution | 1920 x 1200 pixels |
| Host interface | SDI |
| Output interface | VGA |
