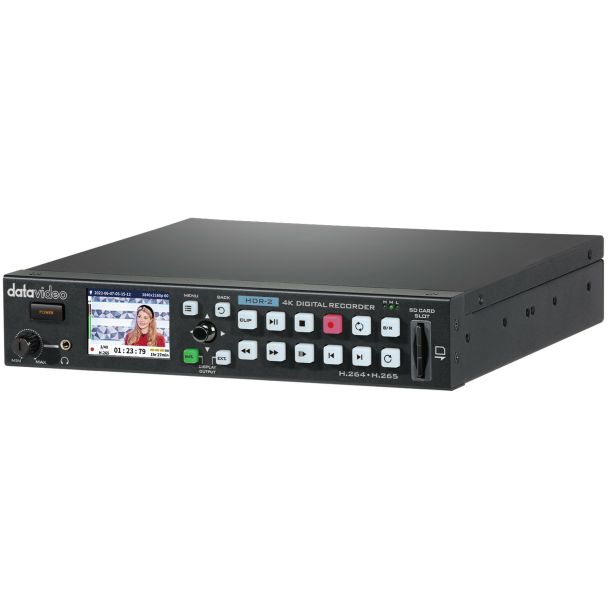

DataVideo HDR-2 Black
4K50/60p H.265/H.264 SD card recorder with HDMI 2.0 input, output and loop-through, 2" LCD, USB power option, DVIP, RS-422/RS-232 and GPI control and selectable audio sources.
Datavideo HDR-2 4K SD Card Recorder
The Datavideo HDR-2 is a 4K50/60p SD card recorder with H.265/H.264 encoding and selectable video formats and bitrates for different applications. It records and plays back 4K video without a computer, making it convenient on live production sites. HDMI 2.0 input, output and loop-through connect it to a wide range of devices, and a 2" LCD gives real-time visual feedback. It can be powered from a mobile power supply via USB and controlled via DVIP, RS-422/RS-232 or GPI. Audio can come from HDMI embedded audio, XLR microphones, RCA external audio or a mix of all sources.
Key features
- 4K UHD (3840 x 2160) recording up to 50/60p
- H.265/H.264 encoding with selectable format and bitrate
- Recording and playback to SD card without a computer
- HDMI 2.0 input, output and loop-through
- 2" LCD monitor
- USB power from a mobile power supply
- Remote control via DVIP, RS-422/RS-232, GPI
- Audio: HDMI embedded, XLR, RCA or mixed
In the box
- 1 x HDR-2
- 1 x 12 V DC power adapter
Specifications
- Video standards: 4K and HD
- Video formats: 3840 x 2160p 60/59.94/50 (H.265 only), 3840 x 2160p 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50
- Video input: 1 x HDMI 2.0 type A
- Video outputs: 2 x HDMI 2.0 type A, 1 x HDMI 2.0 type A loop-out
- Analogue audio inputs: 2 x 3-pin XLR, 1 x stereo RCA (L/R)
- Analogue audio output: 3.5 mm headphone jack
- Embedded audio: de-embedded 2-channel input, embedded 2-channel output
- Storage: 1 x SD card slot, SD/SDHC/SDXC (UHS-I, U3 or faster), up to 128 GB; exFAT
- Estimated recording time on 32 GB: HD 56 h (1 Mbps) to 7 h (8 Mbps); FHD 28 h (2 Mbps) to 3.5 h (16 Mbps); UHD 7 h (8 Mbps) to 1.7 h (32 Mbps)
- File format: MP4 (H.265 + AAC or H.264 + AAC); YUV 4:2:0 8-bit, 1-50 Mbps
- Encoding: H.264 up to 4K30, H.265 up to 4K60; audio AAC 2 channels 16-bit 48 kHz 192 kbps
- Preview display: 2" LCD (menu)
- External control: DVIP, RS-422/RS-232; GPI input on 3.5 mm jack (record start/stop pulse); front key buttons
- Power failure protection: redundant USB power supply (not included)
- Chassis: 1RU, half-rack width
- Dimensions (L x W x H): 220 x 237 x 47 mm
- Weight: 1.4 kg
- Operating temperature: 0-40 °C
- Power: DC 12 V, 2 A
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2600-0219 |
| Modified on | 10-10-2023 |
| Product title | DataVideo HDR-2 Black |
| Long Product Name | 2" LCD, 3840 x 2160 px, HDMI 2.0, 220 x 237 x 47 mm, 1.4 kg |
| Product specifications | PerformanceMaximum video resolution 3840 x 2160 pixels Video compression formats H.264, H.265, MP4 Audio formats supported AAC Video capturing speed 60 fps Channels quantity 2 channels Product colour* Black Rack capacity 1U Ports & interfacesHDMI ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 RS-232 ports 1 PowerPower supply type DC PowerDC voltage 12 V Weight & dimensionsWidth 220 mm Depth 237 mm Height 47 mm Weight 1.4 kg DisplayBuilt-in display Yes Display type LCD Display diagonal 5.08 cm (2") Operational conditionsOperating temperature (T-T) 0 - 40 °C |
| Essential qualities |
|
| Product colour | Black |
