DataVideo HDR-80 Black
GTIN: 0672255008195
ProRes 422 10-bit 4K recorder (desktop) up to 2160p60 on two 2.5" SSDs, with 12G-SDI, 3G-SDI and HDMI 2.0 inputs, up to four 1080p sources at once and 5" touchscreen with scopes.

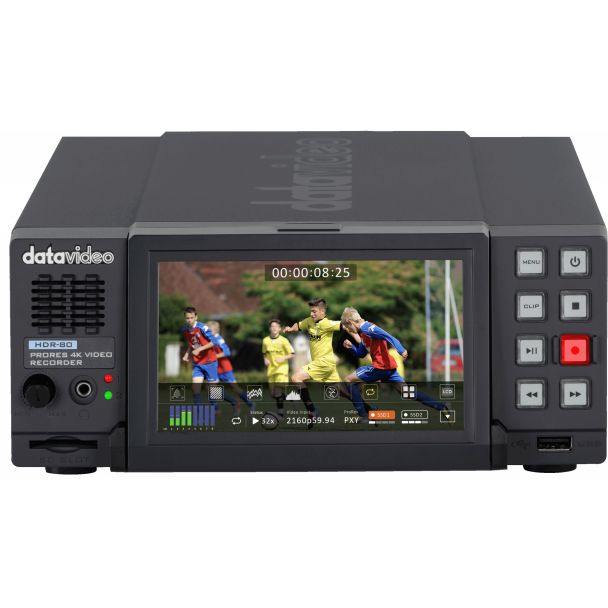

Datavideo HDR-80 ProRes 4K Video Recorder - Desktop
The Datavideo HDR-80 is a ProRes 4K recorder that records to two SSD drives; this is the desktop version. It records up to 2160p60 from the SDI and HDMI interfaces on the back, with SDI from HD up to 12G-SDI and HDMI 2.0 and 1.4 support, and can record up to four 1080p sources at the same time. It has one 4K HDMI input, one 12G-SDI input and three 3G-SDI inputs, plus video outputs with embedded audio. When one SSD is full, recording continues automatically on the second, and storage is easily extended by swapping a disk.
Video is recorded in 10-bit 4:2:2 Apple ProRes 422, a codec widely used in professional post-production. The 5" high-resolution LCD touchscreen on the front is used for monitoring, settings and configuration, and provides scopes and tools such as waveform, vectorscope, focus peaking, zebra and histogram.
Key features
- ProRes 422 10-bit 4:2:2 recording up to 2160p60
- Inputs: 1 x 4K HDMI, 1 x 12G-SDI, 3 x 3G-SDI
- Records up to four 1080p sources simultaneously
- Two 2.5" SSDs with automatic continuation
- Video outputs with embedded audio
- 5" touchscreen with waveform, vectorscope, focus peaking, zebra and histogram
In the box
- AC adapter
- Screws
Specifications
- Audio: 2 x balanced inputs, 2 x balanced XLR outputs
- Power: 12 V DC
- Operating temperature: 0-40 °C
- Dimensions: 313 x 220 x 97 mm
- Weight: 2.8 kg
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 2600-0280 |
| Ean | 0672255008195 |
| Modified on | 25-01-2021 |
| Product title | DataVideo HDR-80 Black |
| Long Product Name | UHD & HD, 720p - 2160p, 60 Hz, 2.5" SSD, 313 x 220 x 97 mm, 2.8 kg |
| Product specifications | PerformanceMaximum video resolution 3840 x 2160 pixels Video compression formats MOV Audio formats supported PCM Product colour* Black Display 5" Touch LCD LED indicators Yes Maximum frame rate 60 fps Ports & interfacesHDMI ports quantity 2 Audio input 2x Balanced Audio output 2x Balanced XLR Video in 1x HDMI 2.0 Video out 3x HDMI 1.4 Hard driveNumber of HDDs supported 2 HDD interface SATA HDD size 2.5" Solid state driveSSD interface SATA SSD form factor 2.5" PowerPower supply type DC DC voltage 12 V DC current (max) 3 A Weight & dimensionsWidth 220 mm Depth 313 mm Height 97 mm Weight 2.8 kg Packaging contentAC adapter included Yes Screws included Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C |
| Essential qualities |
|
| Product colour | Black |
