DataVideo PTC-285T Dome IP security camera Indoor Stand
GTIN: 0672255009536
4K auto tracking PTZ camera with HDBaseT: video, control, power and tally over one Cat 6 cable, 12x optical zoom, HDMI 2.0, 3G-SDI and PoE RJ-45, RMC-1AT remote included.

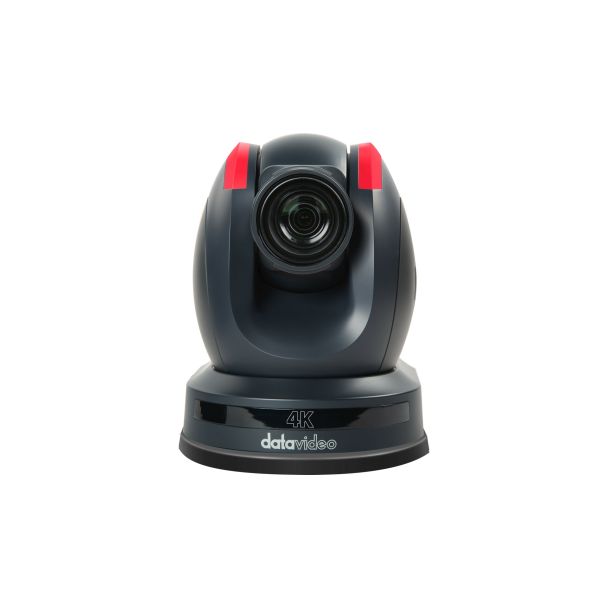

Datavideo PTC-285T 4K Auto Tracking PTZ Camera with HDBaseT
The Datavideo PTC-285T is the HDBaseT version of the 4K auto tracking PTZ camera: a single Cat 6 cable carries video, control, power and tally. It also has HDMI 2.0, 3G-SDI and a PoE Gigabit RJ-45 port.
Auto tracking can be accessed directly from the supplied RMC-1AT remote control and from DVIP controllers such as the RMC-300A and PTZ View Assist, as well as from switchers such as the KMU-200 and SHOWCAST 100. When filming several people, a designated person can be tracked while desks, passers-by and large objects are ignored. A PID algorithm adapts pan, tilt and zoom speed to the subject, an S-shaped speed curve smooths acceleration and deceleration, the subject can be placed centre, left or right, and the RMC-1AT quickly selects full-body, half-body or close-up framing.
Key features
- HDBaseT: video, control, power and tally on one Cat 6 cable
- Auto tracking of a designated person
- Smart PTZ speed adaptation (PID) and S-shaped speed curve
- Subject position: centre, left or right
- Full-body, half-body or close-up framing via RMC-1AT
- Auto tracking from RMC-1AT, RMC-300A, PTZ View Assist, KMU-200, SHOWCAST 100
In the box
- RMC-1AT IR remote controller
Specifications
- Sensor: 1/2.8" CMOS, 8.51 MP
- Zoom: 12x optical, 16x digital
- Focal length: 4.4-52.8 mm
- S/N ratio: 55 dB
- Minimum illumination: 0.5 lx
- Interfaces: 1 x HDMI 2.0, 1 x 3G-SDI, 1 x HDBaseT, 1 x 10/100/1000 RJ-45 (PoE)
- Dimensions: 185 x 229 x 195 mm
- Weight: 2.7 kg
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 7000-3087 |
| Ean | 0672255009536 |
| Form factor | Dome |
| Mounting type | Stand |
| Product colour | Blue, White |
| Modified on | 25-03-2023 |
| Product title | DataVideo PTC-285T Dome IP security camera Indoor Stand |
| Long Product Name | 1/2.8" CMOS, 8.51MP, 55dB, 0.5 Lux, 12x Optical Zoom, 16x Digital Zoom, HDMI 2.0 x1, 3G-SDI x1, HDBaseT x 1, 10/100/1000M RJ45 (PoE) x1, 185 x 229 x 195.08mm, 2.7 kg |
| Product specifications | PerformanceType* IP security camera Placement supported* Indoor Connectivity technology* Wired PTZ protocols Pelco-P/D Remote viewing Yes DesignForm factor* Dome Mounting type* Stand Product colour* Blue, White CameraMinimum illumination 0.5 lx Tilt angle range -15 - 130° Tilt speed 21.32 °/sec Pan range 0 - 300° Pan speed 43 °/sec White balance Auto, Indoor, Manual, Outdoor Camera shutter speed 1/30 - 1/10000 s Image sensorOptical sensor size 25.4 / 2.8 mm (1 / 2.8") Sensor type* CMOS Lens systemZoom capability Yes Optical zoom 12x Digital zoom 16x Number of lenses* 1 Focal length range 52.8 mm Auto focus Yes Night visionNight vision* No VideoTotal megapixels* 8.5 MP Video formats supported H.264, H.265 Supported graphics resolutions 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 720 x 480, 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 Supported video modes 720p, 1080i, 1080p, 2160p Frame rate 60 fps Noise reduction Yes VideoFlip & mirror Yes Bit rate control Constant Bit Rate (CBR), Variable Bit Rate (VBR) Bit rate 32Kbps ~ 50Mbps AudioAudio formats supported AAC, G.711 Signal-to-Noise Ratio (SNR) 55 dB Built-in microphone No Bit rate range 96 - 256 Kbit/s NetworkEthernet LAN* Yes Networking standards IEEE 802.3at Wi-Fi* No Bluetooth* No Streaming method Multicast StorageBuilt-in HDD* No Ports & interfacesEthernet LAN (RJ-45) ports 1 RS-232 ports 1 HDMI ports quantity 1 Management featuresReset button Yes PowerPower source type* DC Power consumption (typical) 22 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 185 mm Depth 195.1 mm Height 229 mm Weight 2.7 kg Packaging contentNumber of cameras* 1 |
| Essential qualities |
|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Total megapixels | 8.5 MP |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Power source type | DC |
| Number of cameras | 1 |
| Built-in HDD | No |
| Night vision | No |
