DataVideo PTC-305 8.51 MP White 3840 x 2160 pixels CMOS 25.4 / 1.8 mm (1 / 1.8")
GTIN: 0672255009932
4K50/60p auto tracking PTZ camera with 1/1.8" CMOS, 20x optical zoom, HDMI 2.0 and 3G-SDI outputs, RS-422/DVIP/VISCA over IP control and RMC-1AT remote included.

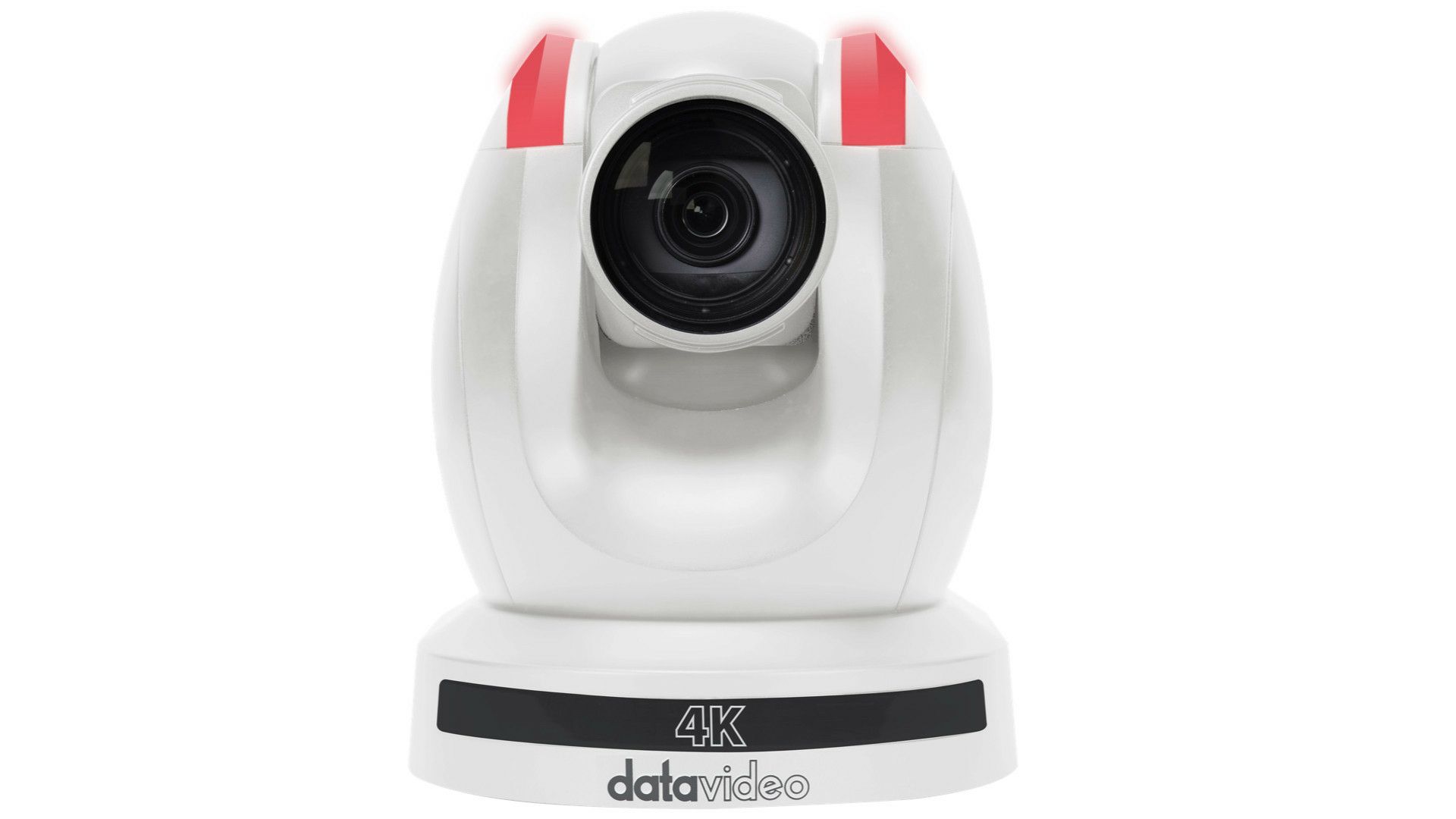

Datavideo PTC-305 4K Auto Tracking PTZ Camera (White)
The Datavideo PTC-305 is a 4K50/60p PTZ camera with auto tracking for live production. Its 1/1.8" CMOS sensor supports up to 2160p 50/60, with 20x optical and 16x digital zoom. It can be controlled via the RS-422 serial port or over IP with DVIP or Sony VISCA over IP, and all outputs are active at the same time. The PTC-305 is ONVIF Profile S compliant for interoperability in network video environments. This version is white.
Auto tracking can be accessed directly from the supplied RMC-1AT remote control and from controllers such as the RMC-300A and PTZ View Assist app, as well as from switchers such as the KMU-300 and SHOWCAST 100. When filming several people, a designated person can be tracked while desks, passers-by and large objects are ignored. A PID algorithm adapts pan, tilt and zoom speed to the subject for smooth movements, and the RMC-1AT quickly selects full-body, half-body or close-up framing.
Key features
- 4K 2160p 50/60, 1/1.8" CMOS
- 20x optical and 16x digital zoom
- ONVIF Profile S
- Auto tracking of a designated person
- Smart PTZ speed adaptation (PID)
- Full-body, half-body or close-up framing via RMC-1AT
- Tally light
In the box
- RMC-1AT IR remote controller
Specifications
- Sensor: 1/1.8" CMOS, 8.51 MP
- Zoom: 20x optical, 16x digital
- Focal length: 6.7-125 mm
- Field of view: 60°
- S/N ratio: 55 dB
- Minimum illumination: 0.5 lx
- Shutter: 1/30-1/10000 s
- Presets: 255
- Protocols: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
- Interfaces: HDMI 2.0, 3G-SDI, microphone input, RJ-45
- Operating temperature: 0-40 °C
- Dimensions: 173 x 219 x 189 mm
- Weight: 2.6 kg
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 7000-3102 |
| Ean | 0672255009932 |
| Modified on | 10-10-2023 |
| Product title | DataVideo PTC-305 8.51 MP White 3840 x 2160 pixels CMOS 25.4 / 1.8 mm (1 / 1.8") |
| Long Product Name | 1/1.8" CMOS, 8.51MP, 55dB, 0.5 Lux, 1/30s ~ 1/10000s, 4K |
| Product specifications | CameraCamera type Single camera Megapixel (approx.)* 8.51 MP Sensor type CMOS Optical sensor size 25.4 / 1.8 mm (1 / 1.8") Zoom capability Yes Optical zoom 20x Digital zoom 16x Focal length range 6.7 - 125 mm Field of view (wide) 60° Minimum illumination 0.5 lx Signal-to-Noise Ratio (SNR) 55 dB White balance Auto, Indoor, Manual, One push, Outdoor Auto focusing (AF) modes Auto, Manual Wide Dynamic Range (WDR) No Number of camera presets 255 VideoHD type* 4K Ultra HD Maximum video resolution* 3840 x 2160 pixels Supported video modes 720p, 1080i, 1080p, 2160p Video formats supported H.264, H.265, M-JPEG High Dynamic Range (HDR) supported No DesignProduct colour* White DesignMounting type Stand Tally light Yes Tilt speed (max) 21.32 °/sec Pan speed (max) 43 °/sec Ports & interfacesHDMI ports quantity 1 HDMI version 2.0 3G-SDI output Yes Microphone in Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Packaging contentRemote control included Yes NetworkNetworking standards IEEE 802.3at Streaming capability Yes Supported network protocols Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, Onvif Weight & dimensionsWidth 173 mm Depth 189.1 mm Height 219 mm Weight 2.6 kg |
