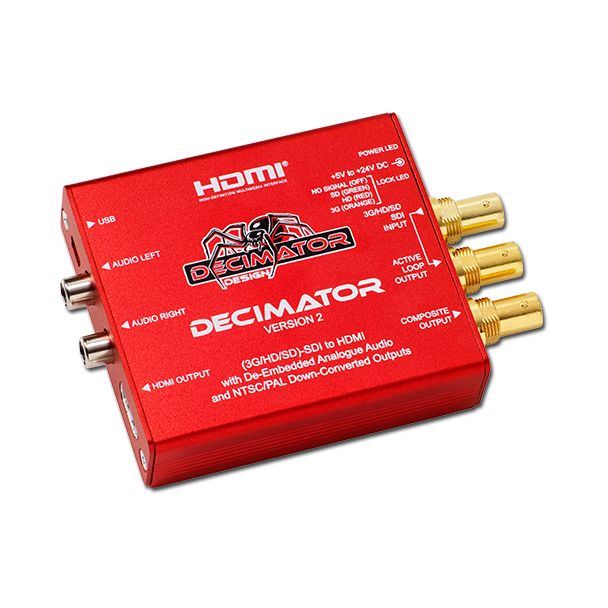

Decimator Design DECIMATOR 2 1920 x 1080 pixels

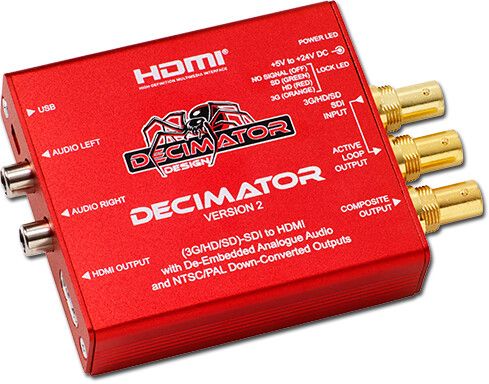

Decimator Design DECIMATOR 2 SDI to HDMI and NTSC/PAL Converter

The Decimator Design DECIMATOR 2 converts 3G, HD or SD-SDI (26 formats, auto-detected) to HDMI and to composite NTSC or PAL at the same time, with simultaneous scaling on both outputs and a maximum delay of one input frame. The HDMI output offers optional full scaling and aspect ratio conversion, plus overlays for 16-channel audio metering, adjustable graticules and text. The composite output provides low latency down-conversion with anamorphic, letterbox or centre cut aspect ratio conversion, a full 10-bit data path, 16 times over-sampling and EIA-708/608 closed caption pass-through. De-embedded analogue audio is available on two RCA connectors, and there is an active SDI loop-through output.

Key features

• 3G/HD/SD-SDI input with auto detection (26 formats)
• Simultaneous scaled HDMI and composite NTSC/PAL outputs
• Down-conversion with 16:9 anamorphic, 4:3 letterbox or 4:3 centre cut
• Passes EIA-708/608 closed captions to the composite output
• 16-channel audio metering on HDMI, with multiple scales (AES/EBU, VU, BBC, EBU, DIN, Nordic)
• Safe action, safe title, centre cross and 16-character text overlays
• De-embedded analogue audio on 2 x RCA at -10 dBu = -20 dBFS
• 3G/HD/SD-SDI active loop-through output
• Configuration via external dip switches
• USB port for control and firmware updates
• Locking DC power socket

In the box

• 1 x DECIMATOR 2
• 1 x Power supply
• 1 x HDMI cable
• 1 x USB cable
• 1 x Mounting bracket

Specifications

• HDMI output formats: 720p, 1080i, 1080p
• Power consumption: 5 W
• Dimensions: 90 x 71 x 23 mm
• Colour: red
