Decimator Design DMON-QUAD Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD
GTIN: 5060417390182
3G/HD/SD-SDI 1 to 4 multiviewer or 4 to 1 multiplexer with linked SDI and HDMI outputs, custom layouts, UMD, 8-channel audio meters and tallies, GPI and RS-422/485 on RJ-45.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

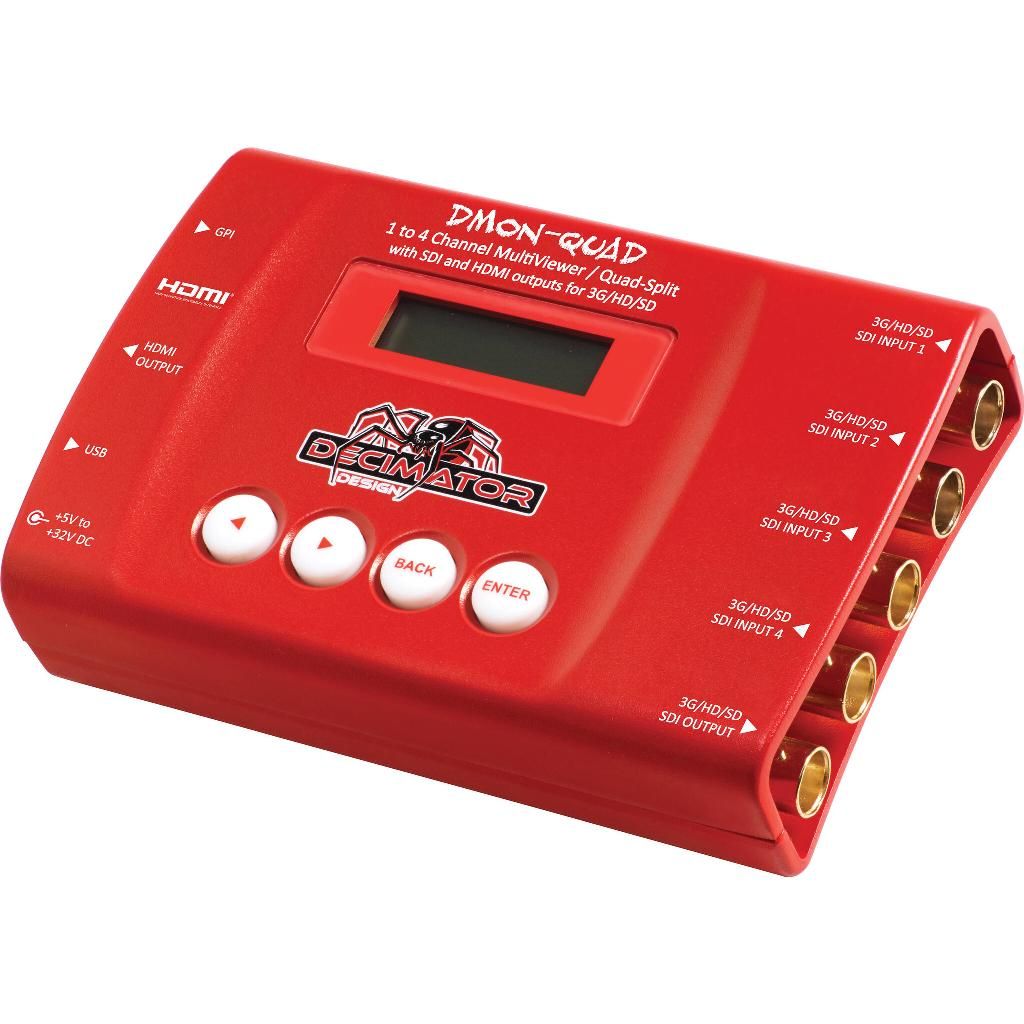

Decimator Design DMON-QUAD 1 to 4 Channel MultiViewer
The Decimator Design DMON-QUAD is a compact 1 to 4 channel multiviewer or 4 to 1 input multiplexer for 3G/HD/SD-SDI. The four SDI inputs auto-detect 26 formats and support 3G level A and B; each window is independent, so any 3G/HD/SD format at any frame rate can be displayed at the same time, with low latency buffering for non-synchronous sources. Custom layouts, per-window 16-character UMD, 8-channel audio meters, audio ID, image flipping and tallies are available, and in pass-through mode the selected input goes to both the SDI and HDMI outputs. Settings are made on the built-in LCD and buttons, without dip switches or a computer.
Key features
- 4 x 3G/HD/SD-SDI inputs with auto detection (26 formats)
- Linked 3G/HD/SD-SDI and HDMI outputs
- Supports 3G level A and B, with conversion between them
- Custom layouts with various standard layouts
- 16-character UMD and 8-channel audio metering overlay per window
- Horizontal and/or vertical image flipping per window
- Audio ID overlay, up to 4 tallies per window
- Fast full-screen switching and pass-through mode
- GPI and RS-422/485 on RJ-45 for tallies, remote switching and dynamic UMD
- USB port for control and firmware updates
- Aluminium box with metal thread locking DC power socket
In the box
- 1 x DMON-QUAD
- 1 x Power supply
- 1 x HDMI cable
- 1 x USB cable
Specifications
- Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
- Dimensions: 79.5 x 123 x 29.5 mm
- Colour: red
| Product Condition | New |
|---|---|
| Manufacturer | Decimator Design |
| manufacturer code | DD-DMON-QUAD |
| Ean | 5060417390182 |
| Housing colour | Red |
| Built-in display | Yes |
| Display technology | LCD |
| Modified on | 15-02-2019 |
| Product title | Decimator Design DMON-QUAD Red 1920 x 1080 pixels NTSC, PAL Built-in display LCD |
| Long Product Name | 1 to 4 Channel MultiViewer, SDI/HDMI, 1080p, 5-32V DC, NTSC/PAL, Red |
| Product specifications | FeaturesMaximum resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Analog signal format system* NTSC, PAL Update Manager Download Service (UMDs) Yes Audio ID overlay Yes Low latency buffering Yes DesignHousing colour* Red Housing material Aluminium Built-in display* Yes Display technology* LCD Control type Buttons Ports & interfacesHDMI output ports quantity 1 Ports & interfaces3G/HD/SD-SDI outputs quantity 4 USB port Yes RS-422/485 ports 1 DC-in jack Yes PowerDC input voltage 32 V Weight & dimensionsWidth 79.5 mm Depth 123 mm Height 29.5 mm Packaging contentPower supply included Yes Cables included HDMI, USB |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | 1920 x 1080 pixels |
