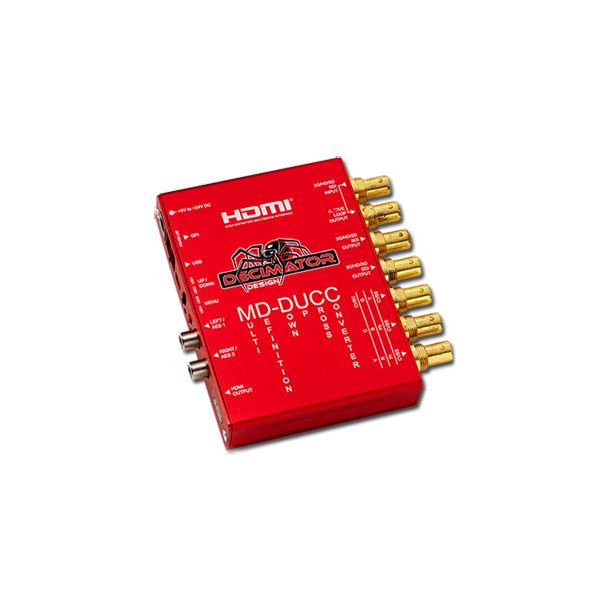

Decimator Design MD-DUCC 1920 x 1080 pixels

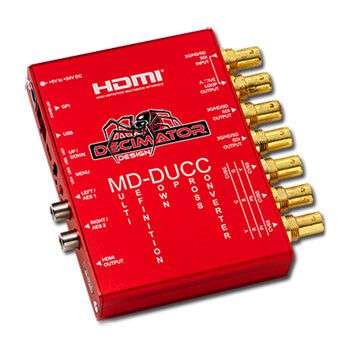

Decimator Design MD-DUCC Down/Up/Cross Converter

The Decimator Design MD-DUCC is a true down/up/cross converter: you select the required output format and it converts from any of the supported 3G, HD or SD input formats (26 in total, auto-detected), with a full 10-bit data path, multipoint interpolation and motion-adaptive de-interlacing. It supports 16:9, 14:9 and 4:3 aspect ratio conversion, separately for HD to HD, HD to SD, SD to HD and SD to SD. Outputs include HDMI, two 10-bit SDI outputs with delayed audio, an active SDI loop-through and a selectable analogue video output (CVBS, YPbPr, RGB or CVBS & Y/C). De-embedded audio is available on two RCA connectors as AES or analogue, and overlays include 16-channel audio meters, graticules and text.

Key features

• 3G/HD/SD-SDI input with auto detection (26 formats)
• Down/up/cross conversion between all supported formats
• Motion-adaptive de-interlacing, 10-bit data path
• 16:9, 14:9 and 4:3 aspect ratio conversion
• Supports 3G level A and B, with conversion between them
• HDMI output and 2 x 3G/HD/SD-SDI outputs, plus active loop-through
• Analogue video output: 3 x CVBS, YPbPr, RGB or CVBS & Y/C
• De-embedded audio on 2 x RCA as AES or analogue, adjustable level
• Audio pair selection for the HDMI and SDI outputs
• 16-channel audio metering, safe area, centre cross and text overlays
• GPI on RJ-45 for tallies
• LEDs and buttons, USB port for control and firmware updates
• Locking DC power socket

In the box

• 1 x MD-DUCC
• 1 x Power supply
• 1 x HDMI cable
• 1 x USB cable
• 1 x Mounting bracket

Specifications

• Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
• Dimensions: 90 x 123 x 23 mm
• Colour: red
