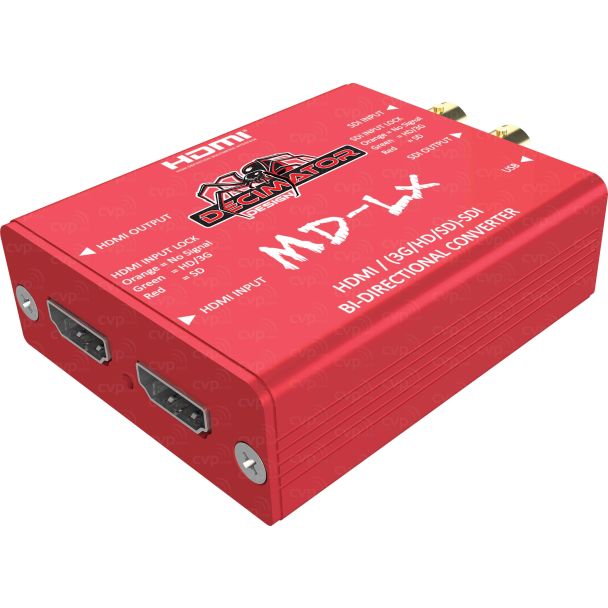

Decimator Design MD-LX 1920 x 1080 pixels

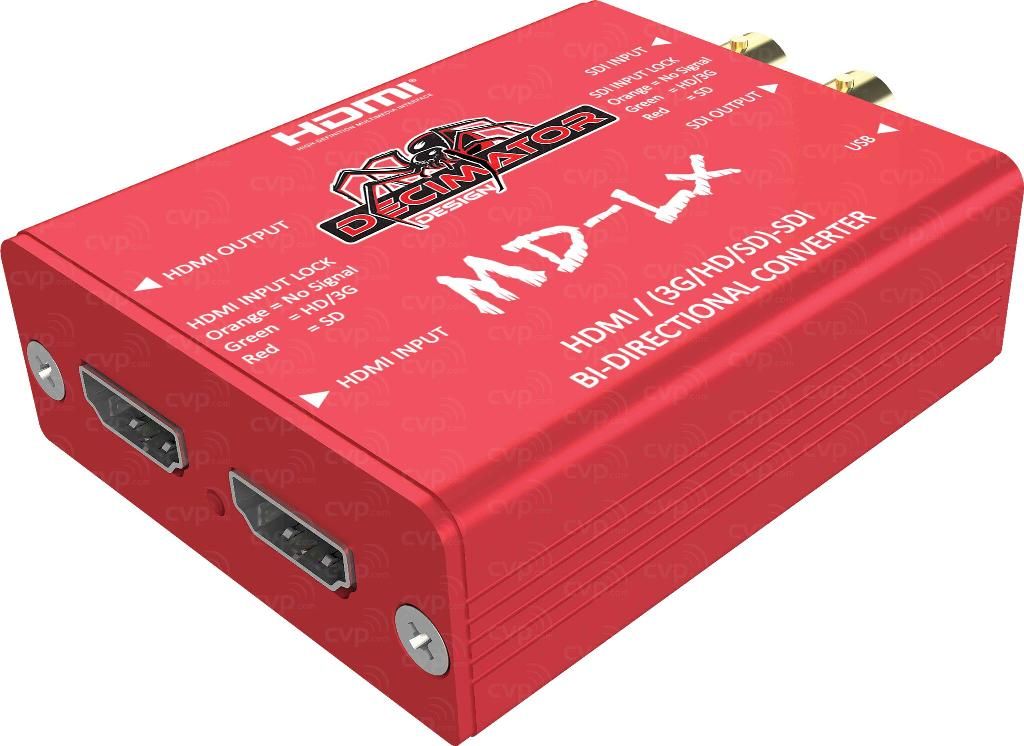

Decimator Design MD-LX HDMI / SDI Bi-Directional Converter

The Decimator Design MD-LX is a pocket-sized bi-directional converter between HDMI and 3G/HD/SD-SDI, measuring 60 x 73.7 x 23 mm. In auto-select mode the active input feeds all outputs, or, with both inputs active, SDI goes to HDMI and HDMI to SDI; other modes send HDMI to SDI and SDI to HDMI, SDI to HDMI and SDI, or HDMI to HDMI and SDI. It supports 3G level A and B with conversion between them. The low-power unit is powered over USB, which also provides control and firmware upgrades.

Key features

• Bi-directional HDMI / 3G/HD/SD-SDI conversion
• Modes: auto-select, HDMI to SDI and SDI to HDMI, SDI to HDMI and SDI, HDMI to HDMI and SDI
• Supports 3G level A and B, with conversion between them
• USB power, control and firmware upgrades
• Low power consumption

Notes

• HDMI cable not included

In the box

• 1 x MD-LX
• 1 x Power supply
• 1 x USB cable

Specifications

• Formats: 720p, 1080i, 1080p (NTSC/PAL SD)
• Power consumption: 2.5 W
• Dimensions: 60 x 73.7 x 23 mm
• Colour: red
