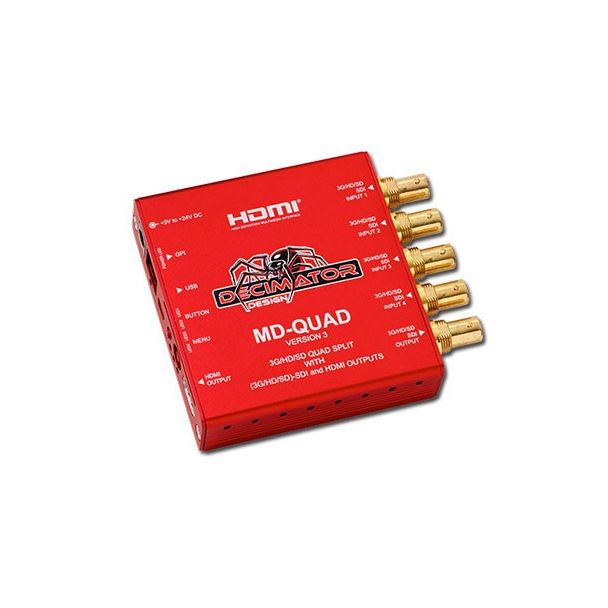

Decimator Design MD-QUAD V3 1920 x 1080 pixels

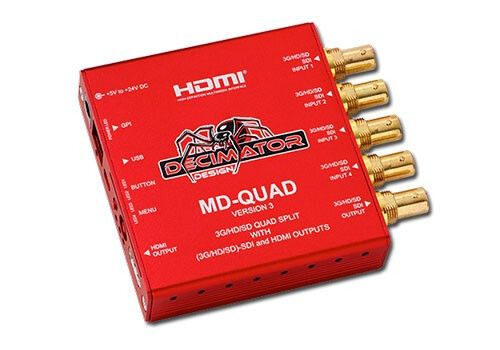

Decimator Design MD-QUAD V3 1 to 4 Channel MultiViewer / Quad-Split

The Decimator Design MD-QUAD V3 is a miniature 1 to 4 channel multiviewer or 4 to 1 input multiplexer for 3G/HD/SD-SDI. The four inputs auto-detect 26 formats and each window is independent, so any 3G/HD/SD format at any frame rate can be displayed together, with low latency buffering for non-synchronous inputs. Custom layouts, per-window 16-character UMD, 8-channel audio meters, image flipping and up to four tallies per window are available, and pass-through mode routes any input to both the SDI and HDMI outputs. It also includes a test pattern generator with 54 patterns and an audio tone generator, and is set up with a rotary encoder, LEDs and a push button.

Key features

• 4 x 3G/HD/SD-SDI inputs with auto detection (26 formats)
• Linked 3G/HD/SD-SDI and HDMI outputs
• Supports 3G level A and B, with conversion between them
• Custom layouts with save and recall
• 16-character UMD and 8-channel audio metering overlay per window
• Up to 4 tallies per window (green, red, blue, yellow)
• Test pattern generator: 26 output formats and 54 patterns; audio tone generator
• 5 GPI on RJ-45 for tallies and remote switching
• RS-422/485 on the same RJ-45 for dynamic UMD and tallies via TSL
• Rotary encoder menu, LEDs and push button; USB port for control and updates
• Locking DC power socket

In the box

• 1 x MD-QUAD V3
• 1 x Power supply
• 1 x HDMI cable
• 1 x USB cable
• 1 x Mounting bracket

Specifications

• Output formats: 720p, 1080i, 1080p (NTSC/PAL SD)
• Power consumption: 6 W
• Dimensions: 90 x 94 x 23 mm
• Colour: red
