DeLOCK 89592 interface cards/adapter Internal RS-232
GTIN: 4043619895922

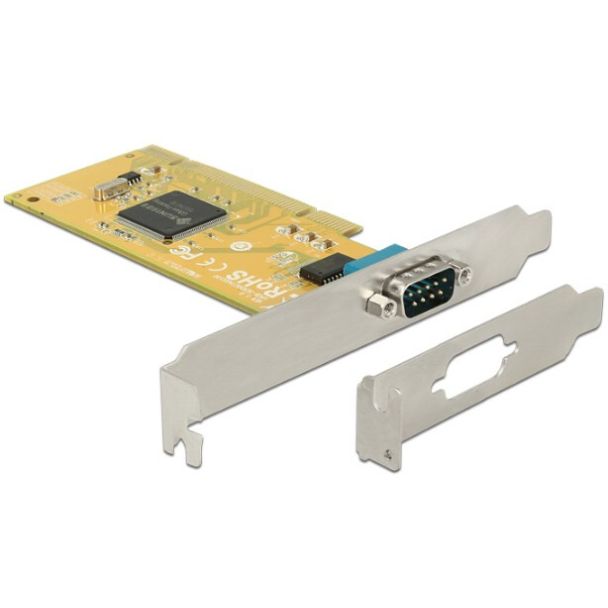

PCI card with one external RS-232 DB9 serial port, SUN1989 chipset, up to 115.2 Kbps, low profile bracket included.
Delock PCI Card 1 x Serial RS-232 89592
This PCI card by Delock expands a PC with one external serial port, to which devices such as scanners, printers or mice can be connected. With the included low profile bracket the card can also be installed in a mini PC.
Key features
- PCI 33 MHz specification 3.0 / 2.3 / 2.2 / 2.1
- Works in 64 bit and 32 bit PCI slots, 3.3 V and 5 V
- Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
- ±2 kV ESD protection for all serial signals
- Compatible with 16C950 UART
Compatibility
- Windows 7 / 8.1 / 10
Specifications
- Connectors: external 1 x RS-232 DB9 male, internal 32 bit PCI
- Chipset: SUN1989
- Data rate: up to 115.2 Kbps
- FIFO: 128 byte
- Operating temperature: 0 - 60 °C
- Humidity: 5 - 95 %
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 89592 |
| Ean | 4043619895922 |
| Taric Code | 84718000 |
| Internal | Yes |
| Product title | DeLOCK 89592 interface cards/adapter Internal RS-232 |
| Long Product Name | PCI Card - 1x Serial RS-232 |
| Product specifications | Ports & interfacesHost interface* PCI Output interface* RS-232 Expansion card standard PCI 3.0 Serial ports quantity 1 Serial interface type RS-232 DesignInternal* Yes Product colour Silver Purpose PC FeaturesChipset Sunix1989 Data transfer rate (max) 0.001152 Gbit/s FIFO (First In, First Out) 128 B PowerLow power mode Yes Operational conditionsOperating temperature (T-T) 0 - 60 °C Operating relative humidity (H-H) 5 - 95% System requirementsWindows operating systems supported Windows 10, Windows 7, Windows 8.1 Weight & dimensionsWidth 51 mm Depth 120 mm Height 6.6 mm Packaging dataManual Yes Package type Box Logistics dataHarmonized System (HS) code 84733020 Other featuresRS-232 interface Yes |
| Essential qualities |
|
| Host interface | PCI |
| Output interface | RS-232 |
