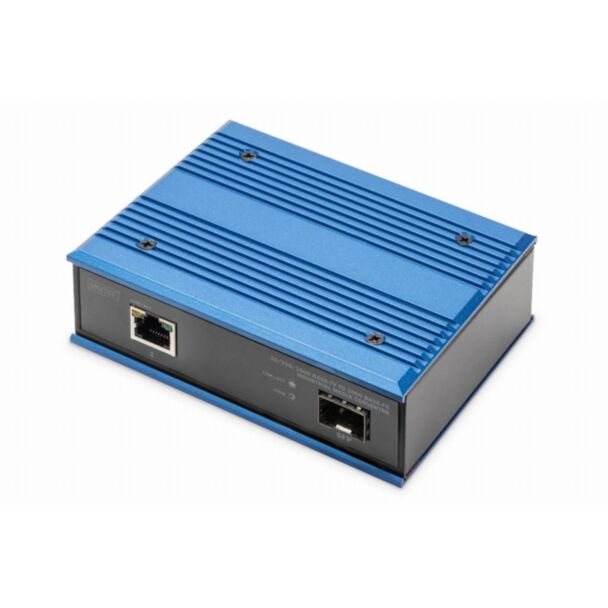

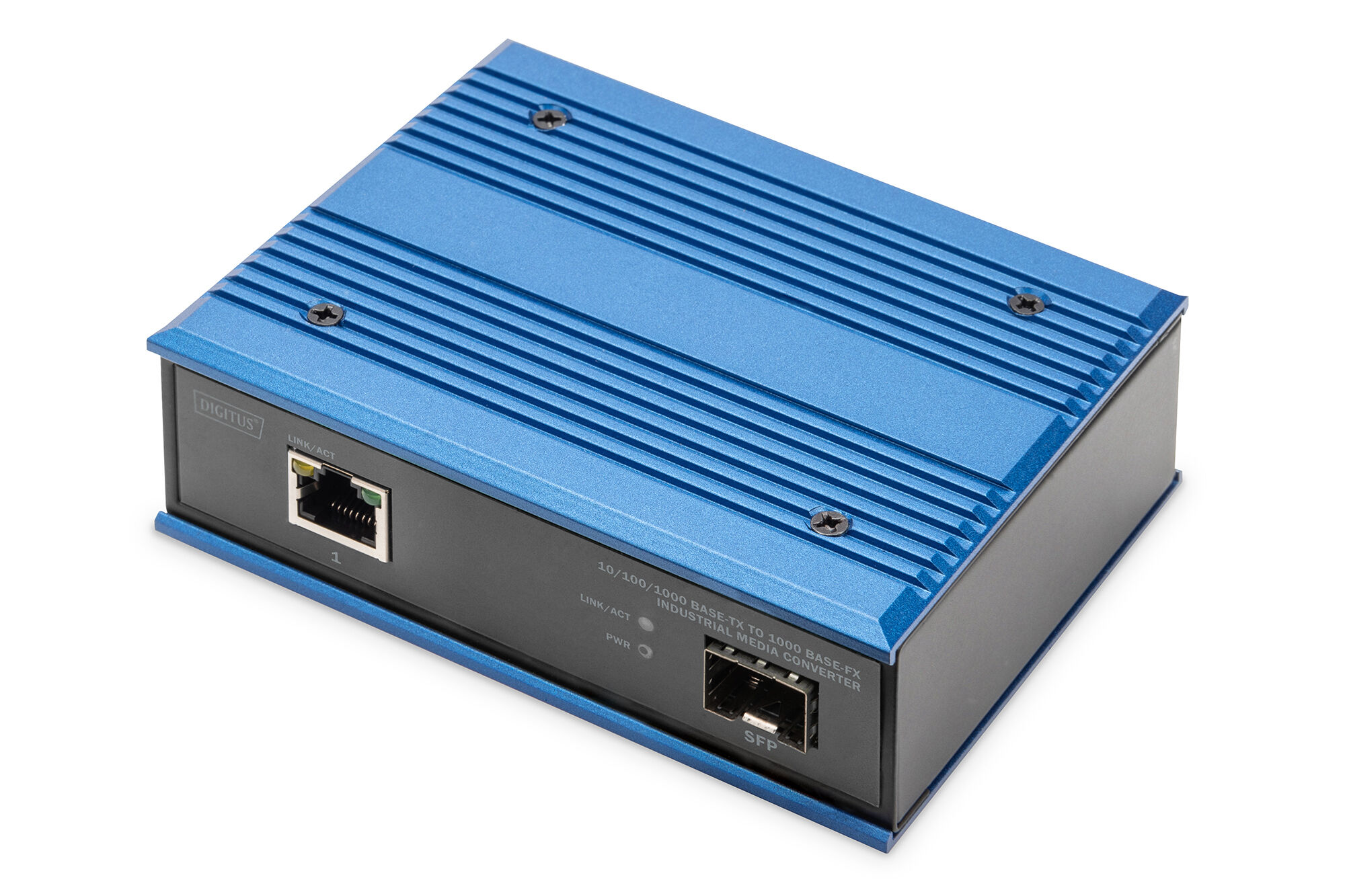

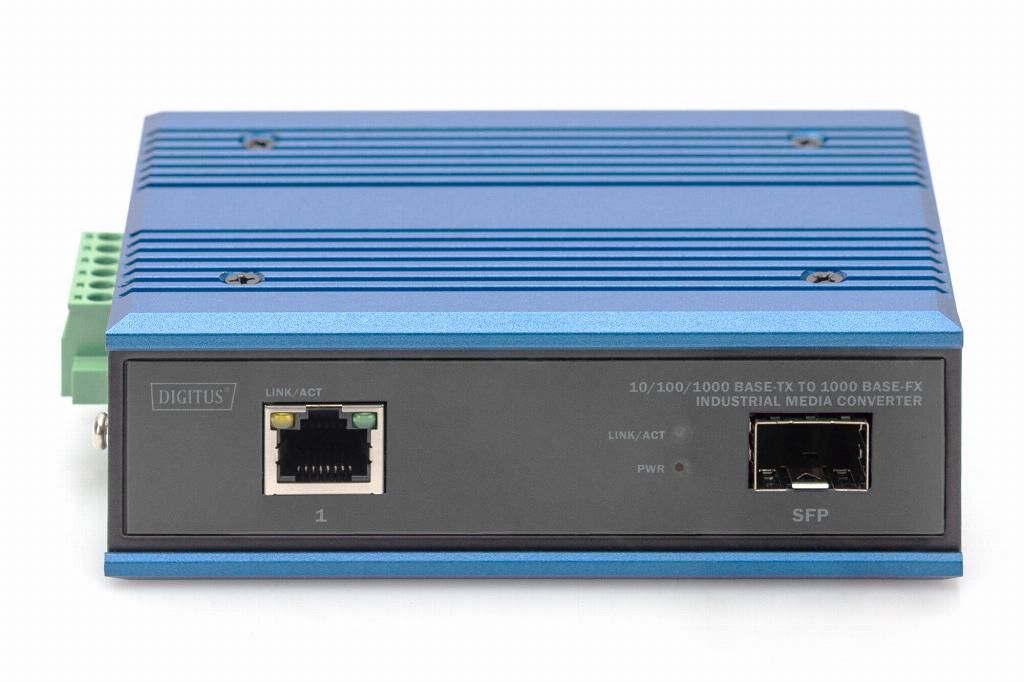

Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter
GTIN: 4016032488200
Industrial Gigabit Ethernet Media Converter, SFP SFP Open Slot, without SFP Module
Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire.
- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism, support a variety of protocols
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours

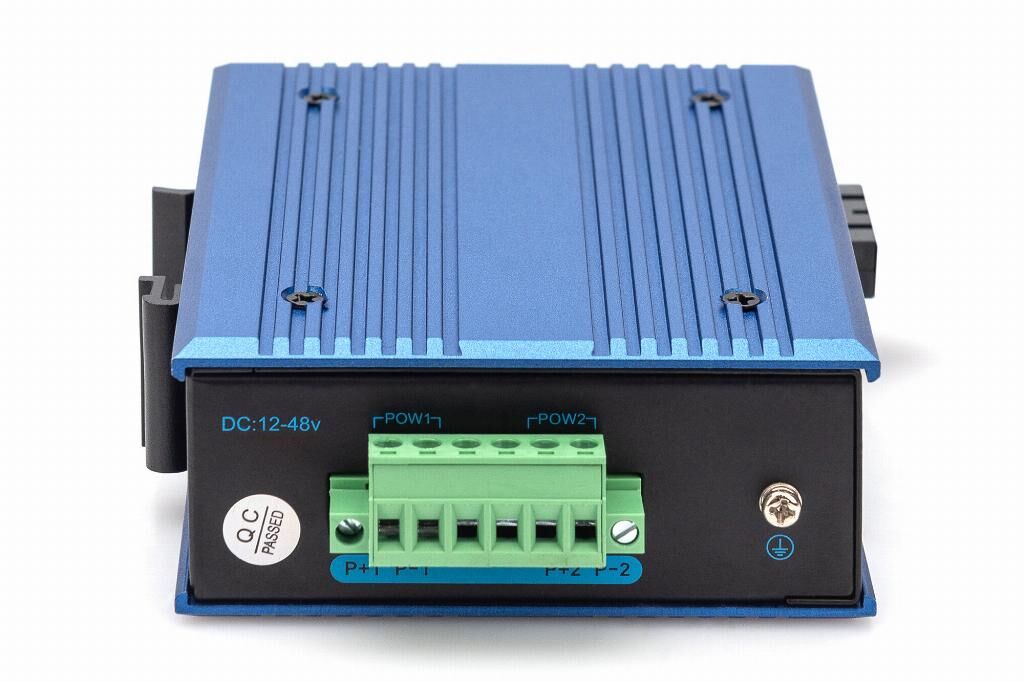

- Working power supply: DC 12-48V to provide reverse protection

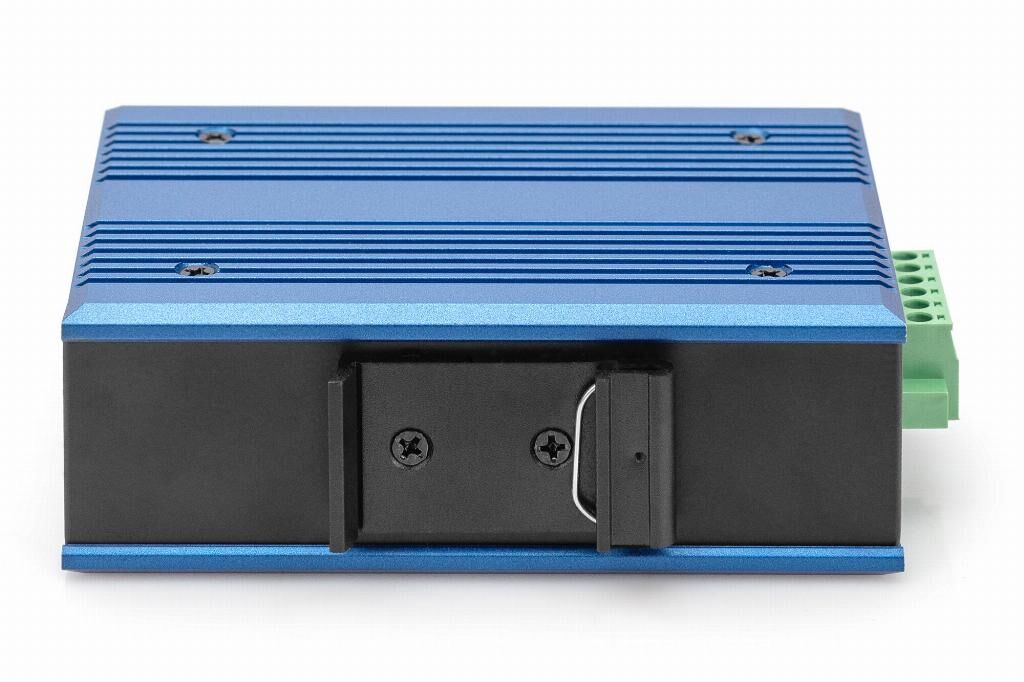

Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire. The Digitus DN-652103-1 series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40°C to 80°C allows the Digitus DN-652103-1 series to be placed in almost any difficult environment. Digitus DN-652103-1 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000 Base-TX and 1000 Base-FX network. The Digitus DN-652103-1 series provides the flexibility to all kinds of 10/100/1000 Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. The Digitus DN-652103-1 series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-652103-1 |
| Ean | 4016032488200 |
| Modified on | 11-08-2023 |
| Product title | Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter |
| Long Product Name | Industrial Gigabit Ethernet Media Converter, SFP SFP Open Slot, without SFP Module |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 1000Base-FX, 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX Converter output interface 1000Base-FX Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,1000,100 Mbit/s Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX Fiber ethernet cabling technology 1000BASE-FX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Duplex system Full, Half Cable types supported Cat3, Cat4, Cat5 Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 2 Fiber optic connector* FX PerformanceMaximum transfer distance* 80000 m Fiber mode structure Multi-mode, Single-mode Buffer size 1200 KB Mean time between failures (MTBF) 300000 h DesignInternal* No LED indicators Link, Power Product colour Black, Blue Housing material Aluminium International Protection (IP) code IP40 DesignDIN rail mounting Yes Country of origin China PowerInput voltage 12 - 48 V Power consumption (typical) 3 W Power over Ethernet (PoE) No Management featuresDigital Diagnostics Monitoring (DDM) No Weight & dimensionsWidth 118 mm Depth 92.4 mm Height 40 mm Weight 400 g Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Packaging dataPackage width 135 mm Package depth 54 mm Package height 165 mm Package volume 1202.85 cm³ Package weight 558.333 g Packaging contentQuick installation guide Yes Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 80000 m |
| Internal | No |
| Fiber optic connector | FX |
