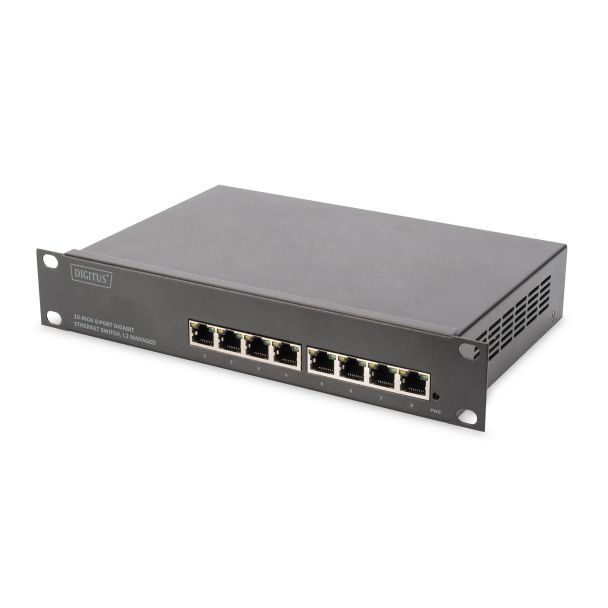

Digitus 10" Gigabit 8-Port L2+ Managed Switch
GTIN: 4016032464358
10 inch 8-Port Gigabit L2+ Managed Switch 8-port, 10 inch
Professional network segmentation, prioritization, and security—in a compact 10-inch format.
- L2+ Managed Switch with Extensive Enterprise Features
- VLAN (port-based & 802.1Q tag-based)
- Spanning Tree (STP/RSTP/MSTP) and EAPS Ring for Redundant Architectures
- Static routing and up to 32 VLAN interfaces for inter-VLAN routing
- Link aggregation with up to 8 groups
- QoS with 4 queues per port for prioritized applications
- IGMP/MLD Snooping and Multicast Management for IPTV and CCTV
- Comprehensive ACL support (IP, MAC, ARP)
- Management via the Web, SNMP, CLI, Telnet, SSH, TACACS+, and RMON
- IPv6 Support (ICMPv6, ND, MLD Snooping)
- Fanless metal enclosure for quiet 24/7 operation
The DIGITUS® DN-80117 is a professional 8-port Gigabit L2+ managed switch in a 10-inch form factor designed for small and medium-sized business networks. It combines Gigabit performance with a comprehensive range of Layer 2 and Layer 2+ features: VLAN (port-based & 802.1Q), QoS with four queues per port, link aggregation with up to eight groups, Spanning Tree (STP/RSTP/MSTP), and an EAPS ring for redundant structures, as well as multicast management (IGMP/MLD snooping) for IPTV and CCTV applications. With eight 10/100/1000Base-TX ports, a 16 Gbps backplane, jumbo frames up to 16 KB, and a forwarding capacity of 11.9 Mpps, it is ideally suited for converged networks handling data, voice, and video traffic. Features such as port isolation, loop detection, port mirroring, and rate limiting enable granular control of the infrastructure, while comprehensive ACLs (IP/MAC/ARP) and authentication via RADIUS and TACACS+ enhance security. Using static routing and up to 32 VLAN interfaces, the switch handles inter-VLAN routing directly at the network edge, reducing the load on the firewall. Management is flexible and audit-compliant via Web GUI, SNMP, CLI, Telnet, SSH, TACACS+, or RMON—including IPv6 support. The fanless metal housing ensures quiet and reliable 24/7 operation. This makes the DN-80117 the managed core for professional SMB networks in a space-saving 10-inch form factor.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-80117 |
| Ean | 4016032464358 |
| Rack mounting | Yes |
| Stackable | No |
| Modified on | 25-04-2020 |
| Product title | Digitus 8 Port Gigabit Switch, 10 Inch, Managed |
| Long Product Name | L2 managed Gigabit Ethernet Switch 8-port, 10 inch |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2+ Quality of Service (QoS) support Yes ARP inspection Yes Configuring Location Settings (CLI) Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Full duplex Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support Yes Data transmissionMAC address table* 8000 entries SecurityIGMP snooping Yes MAC address filtering Yes IP-MAC-Port binding Yes Multicast featuresMulticast support Yes DesignRack mounting* Yes Stackable* No Product colour Black Housing material Metal LED indicators Link, Power Wall mountable Yes Vandal-proof No Suitable for outdoor use No DesignCountry of origin China PowerPower supply included* Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 15 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 20 - 85% Weight & dimensionsWidth 250 mm Depth 150 mm Height 44 mm Weight 1.14 kg Packaging dataCables included AC Quick start guide Yes Package width 240 mm Package depth 70 mm Package volume 5376 cm³ Package weight 1.6 kg Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
