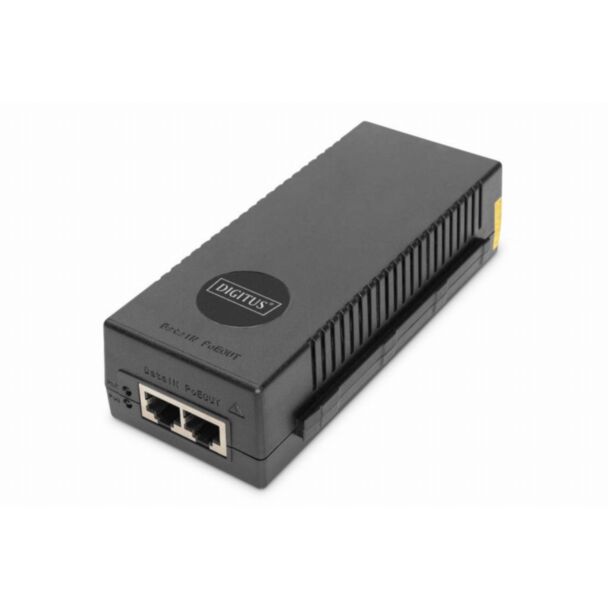

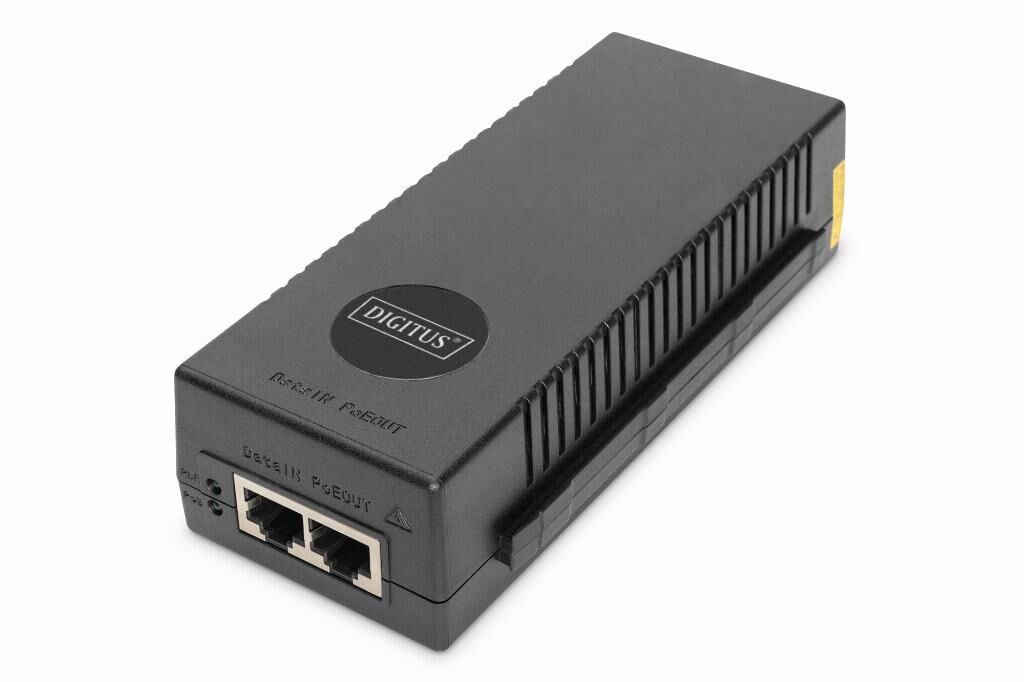

Digitus 10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W
GTIN: 4016032464501
10 Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:3/6(+), 1/2(-), 30W
Power supply and data transfer with up to 10G bandwidth and 30 watt output with just one network cable, for PoE-enabled devices such as access points, IP phones or IP cameras
- PoE power supply with up to 30 W and 10 Gbps
- Supports the IEEE 802.3af/at PoE standard
- Supports 10G, 5G, 2.5G, 10/100/1000 Base-T
- PoE output: 30 W
- For distances of up to 100 m

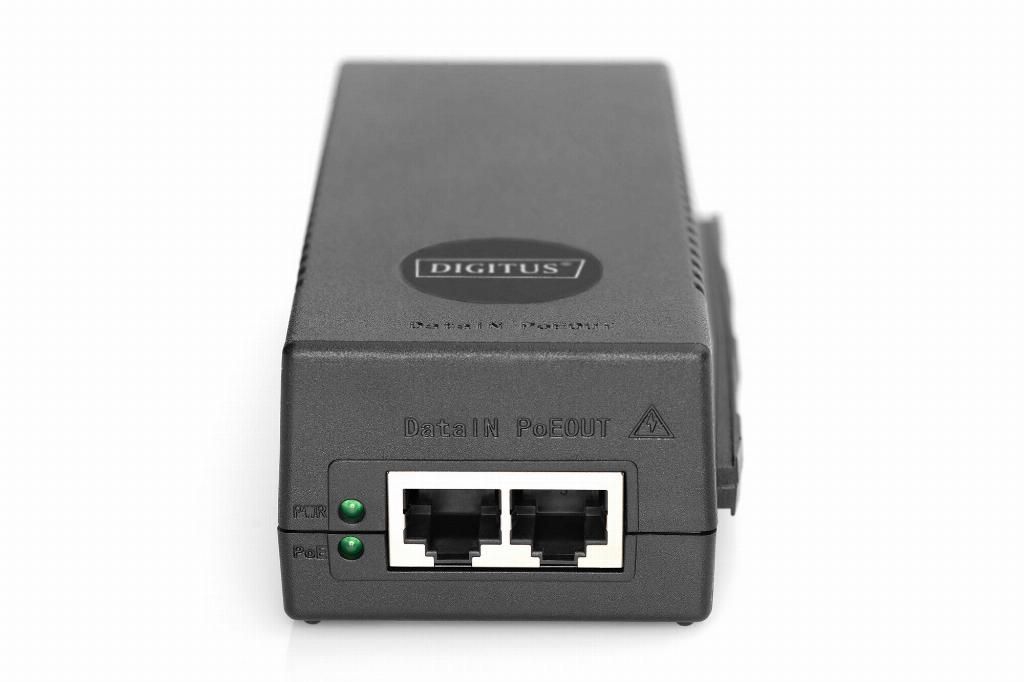

- LED operating display

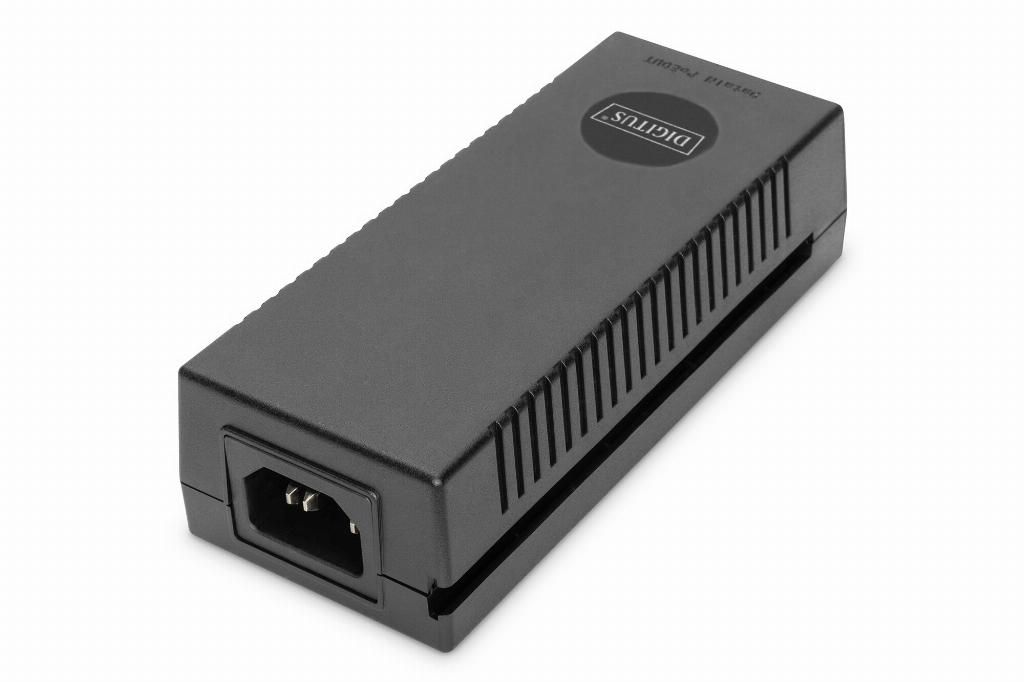

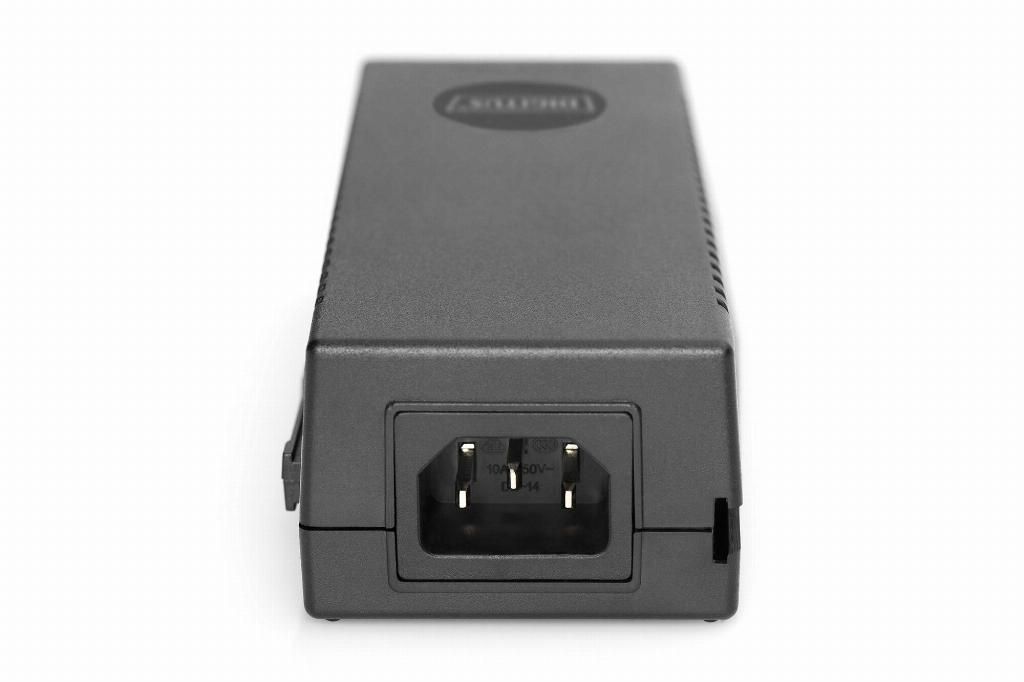

- Integrated power connection for non-heating appliances (C14)
- Excess voltage and short circuit protection
- Automatic detection of PoE devices
- Suitable for wall installation
The PoE+ injector from DIGITUS® offers a 30 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3at-compliant. With support for 10 Gbps network connections, the PoE injector can also be used in environments where the highest possible data transfer speed is essential. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones and other installations with PoE functionality. The injector makes an external power supply for your devices unnecessary, eliminating the connected power cables / plugs. PoE & PoE+ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95108 |
| Ean | 4016032464501 |
| Modified on | 22-06-2020 |
| Product title | Digitus 10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W |
| Long Product Name | 10 Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:3/6(+), 1/2(-), 30W |
| Product specifications | NetworkEthernet interface type 10 Gigabit Ethernet Ethernet LAN data rates 10,100,1000,2500,5000,10000 Mbit/s Power over Ethernet (PoE) Yes Networking standards IEEE 802.3at FeaturesProduct colour Black Wall mountable Yes Maximum operating distance 100 m LED indicators PoE, Power Power protection features Short circuit Country of origin China Ports & interfacesEthernet LAN (RJ-45) ports 2 PowerPower over Ethernet (PoE) voltage* 52 V AC adapter input voltage 100-240 V AC adapter frequency 50/60 Hz Input current 0.58 A Total Power over Ethernet (PoE) budget 30 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 5 - 95% Storage temperature (T-T) -10 - 70 °C Weight & dimensionsWidth 61.5 mm Depth 145.5 mm Height 40 mm Weight 450 g Packaging dataPackage width 120 mm Package depth 60 mm Package weight 287.4 g Package volume 1260 cm³ Packaging contentNumber of products included 1 pc(s) Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85044095 |
| Essential qualities |
|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) voltage | 52 V |
