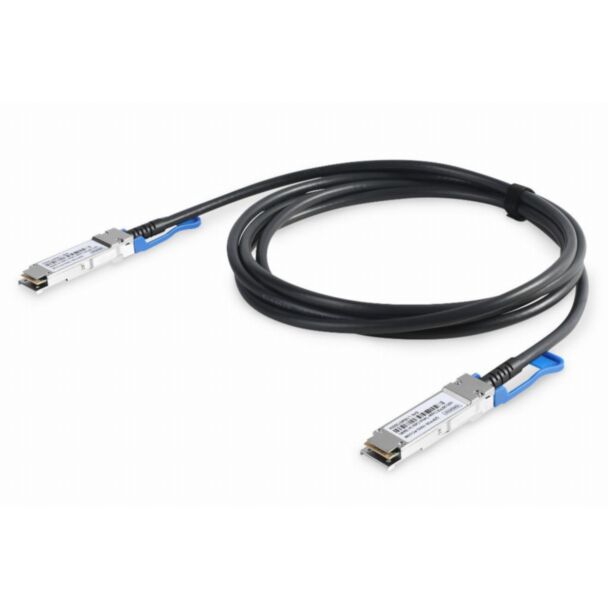

Digitus 100G QSFP28 DAC Cable 1m, AWG 30

100G QSFP28 DAC cable, 1 m AWG30

- 100G QSFP28 DAC cable, 1m
- Maximum data transfer rate: 100 Gb/s ( 4x 25 Gb/s)
- 100G QSFP28 to QSFP28
- AWG 30, full duplex channels
- Maximum supported data rate per channel 28.3125 Gbps
- The connector is compatible with the SFF-8665 specification
- Power: + 3.3V supply voltage
- AWG: 30
- Compatible with the following manufacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

The Digitus® QSFP28 100G DAC cables are the ideal connection between switches in the backbone area. The 100G QSFP28 to QSFP28 Direct Attach Cable copper cable assemblies(DAC) are a low cost alternative for short reach applications. It is compliant with 100G Ethernet (100GBASE-CR4) specifications. It contains four high-speed copper pairs, each operating at data rates of up to 25GbE. So the QSFP28 DAC cable assembly is suitable for power-efficient connectivity for short distance interconnects, such as Data center, enterprise storage systems and High-Performance Computing.
