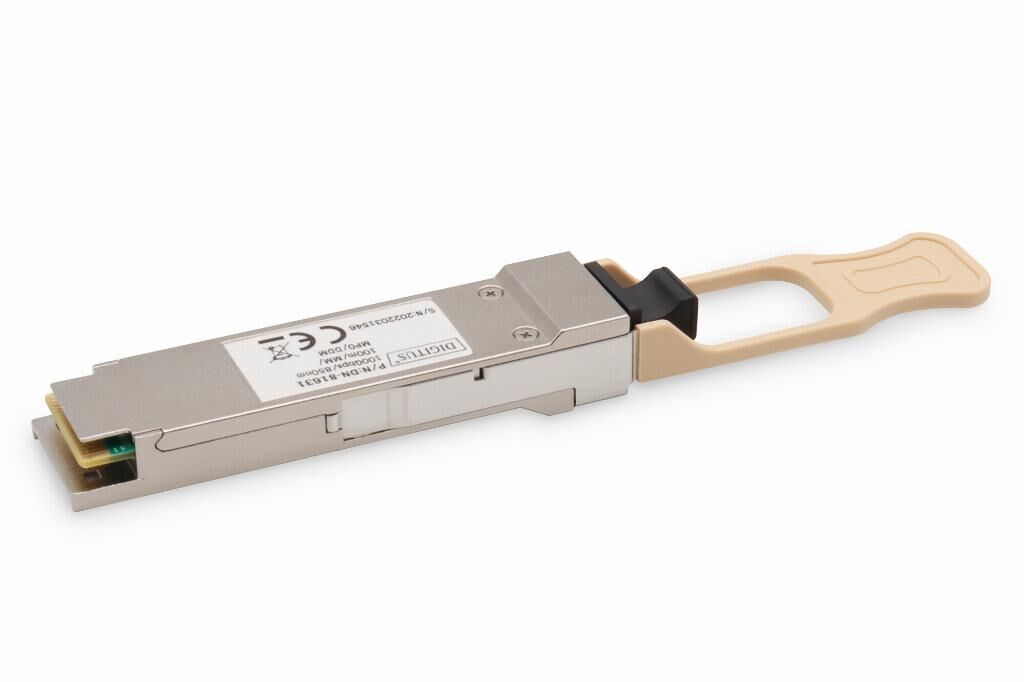

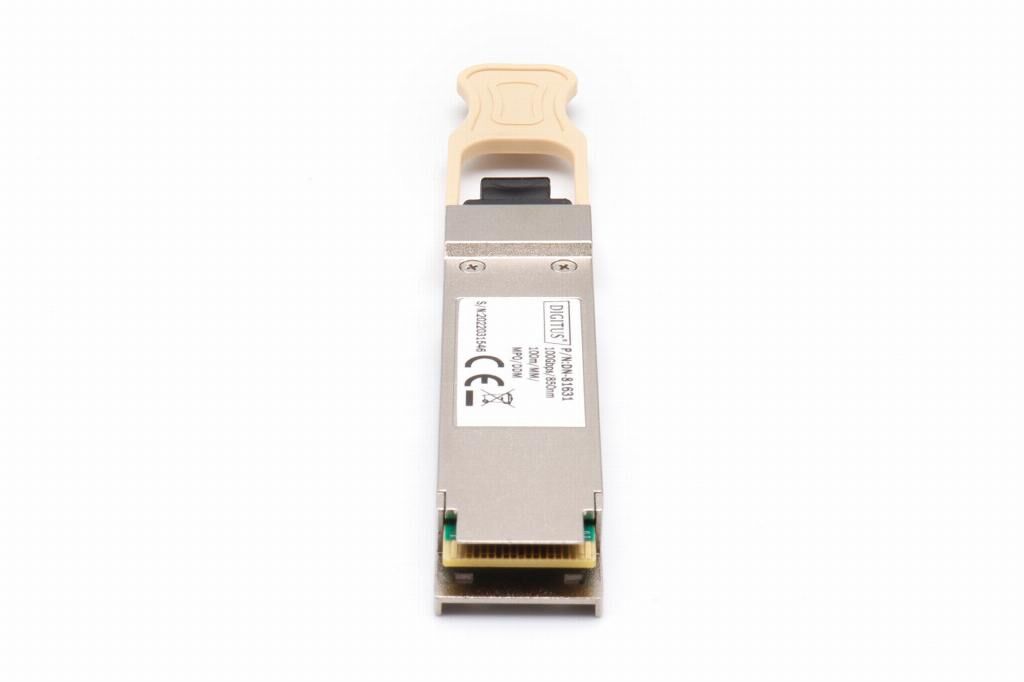

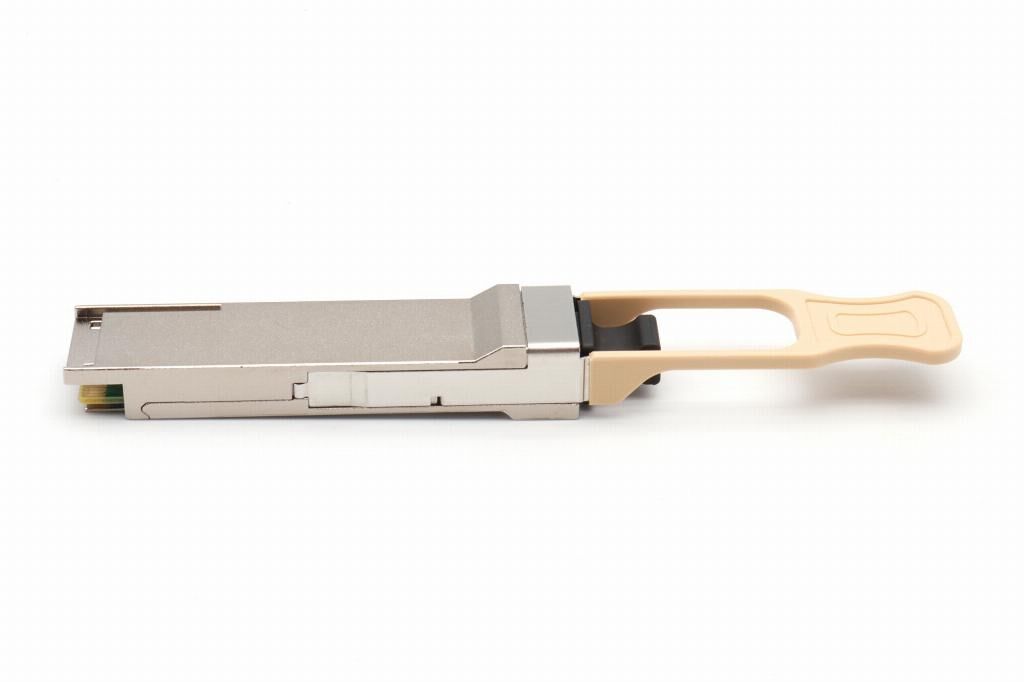

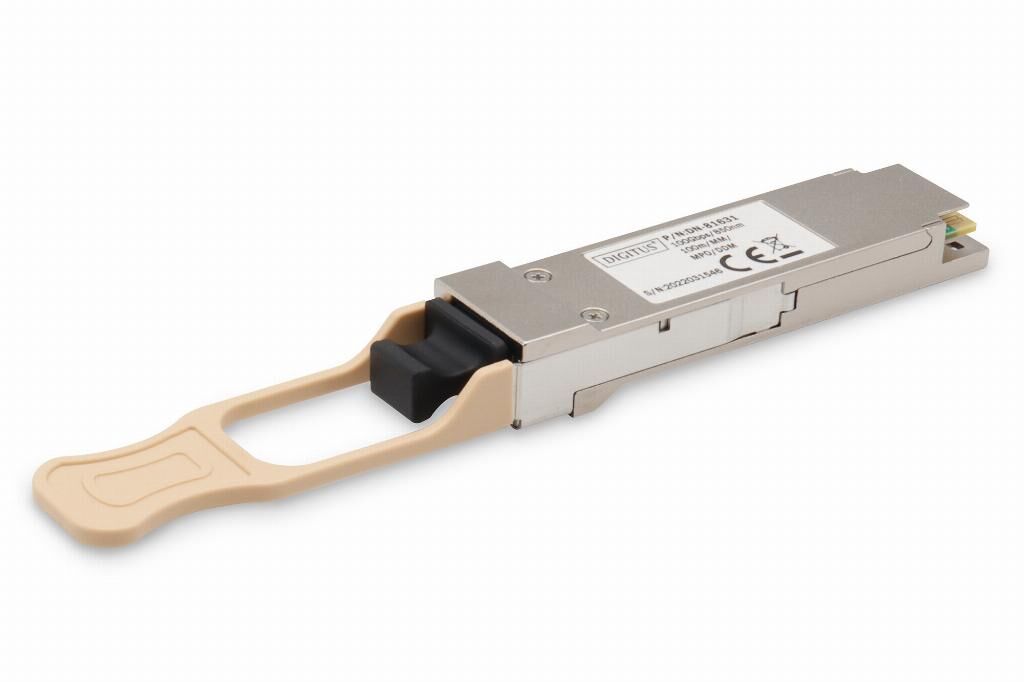

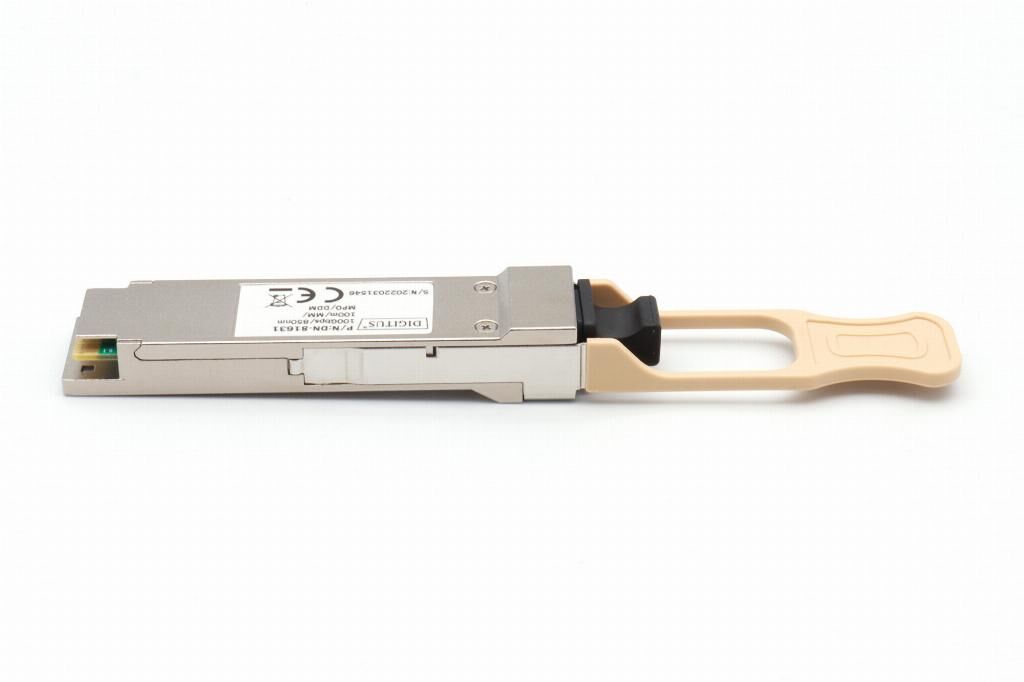

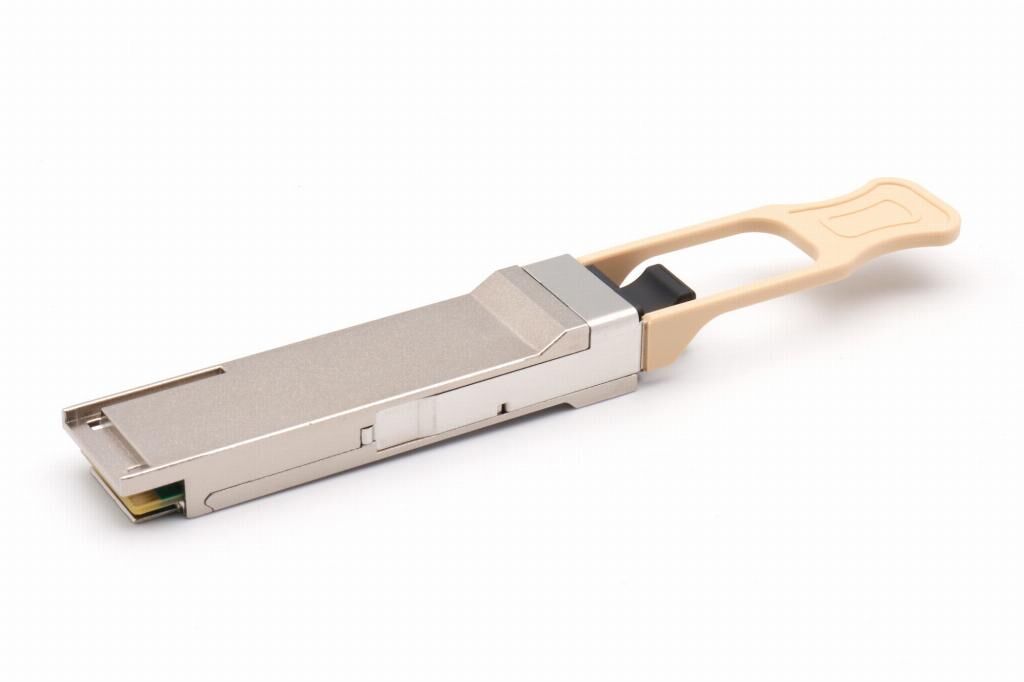

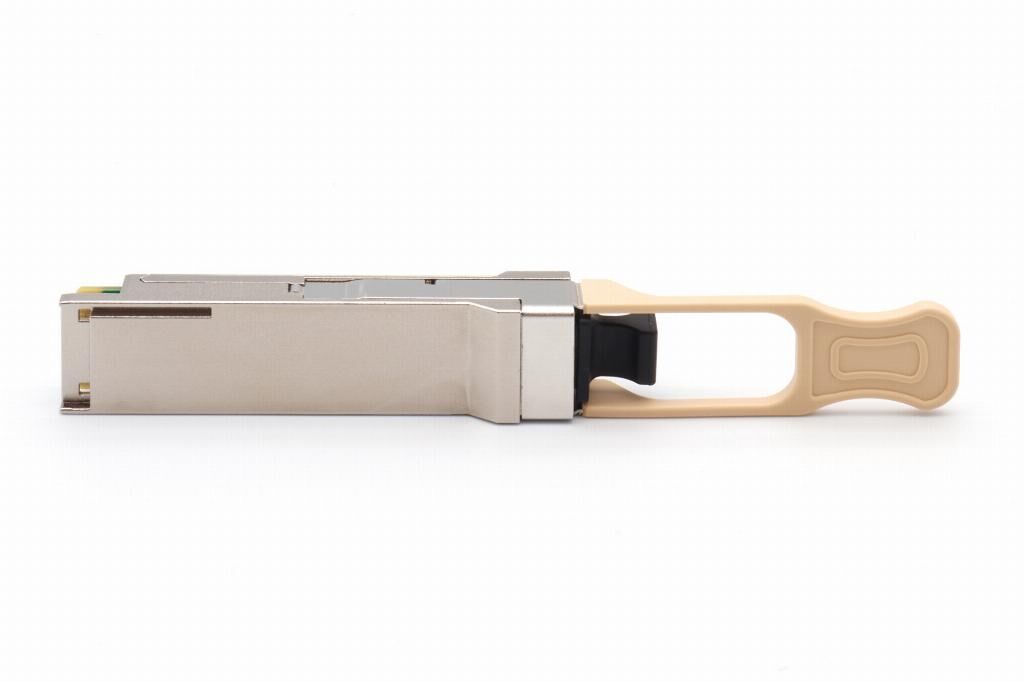

Digitus 100Gbs QSFP28 SR4 Module
GTIN: 4016032483427
100Gbs QSFP28 SR4 Module
100Gbs QSFP28 SR4 Module
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
- Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- MPO connector receptacle
- Built-in digital diagnostic function
The Digitus DN-81631 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 Applications,or 40 Gigabit Ethernet and Infiniband FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-81631 |
| Ean | 4016032483427 |
| Modified on | 01-05-2022 |
| Product title | Digitus 100Gbs QSFP28 SR4 Optical Transceiver |
| Long Product Name | 100Gbs QSFP28 SR4 Module |
| Product specifications | PerformanceSFP transceiver type* Fiber optic Maximum data transfer rate* 100000 Mbit/s Interface type* SFP28 Multi-mode fiber (MMF) supported Yes Fiber optic connector QSFP SFP transceiver standard SR4 Maximum transfer distance 70 m Wavelength 850 nm Networking standards IEEE 802.3bm Digital Diagnostics Monitoring (DDM) Yes FeaturesCountry of origin China PowerInput voltage 3.3 V Power consumption (typical) 3.5 W Operational conditionsOperating temperature (T-T) 0 - 70 °C Weight & dimensionsWeight 50 g Packaging dataNumber of products included 1 pc(s) Package width 100 mm Package depth 900 mm Package volume 2610 cm³ Package weight 69.167 g Technical detailsSustainability certificates RoHS Compliance certificates RoHS Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | SFP28 |
