Digitus 10Gb/s SFP+SR MM 850nm 300m DDM Industrial
GTIN: 4016032476948
10G SFP+SR 850nm 300m LC DDM Industrial 300m LC DDM Industrial

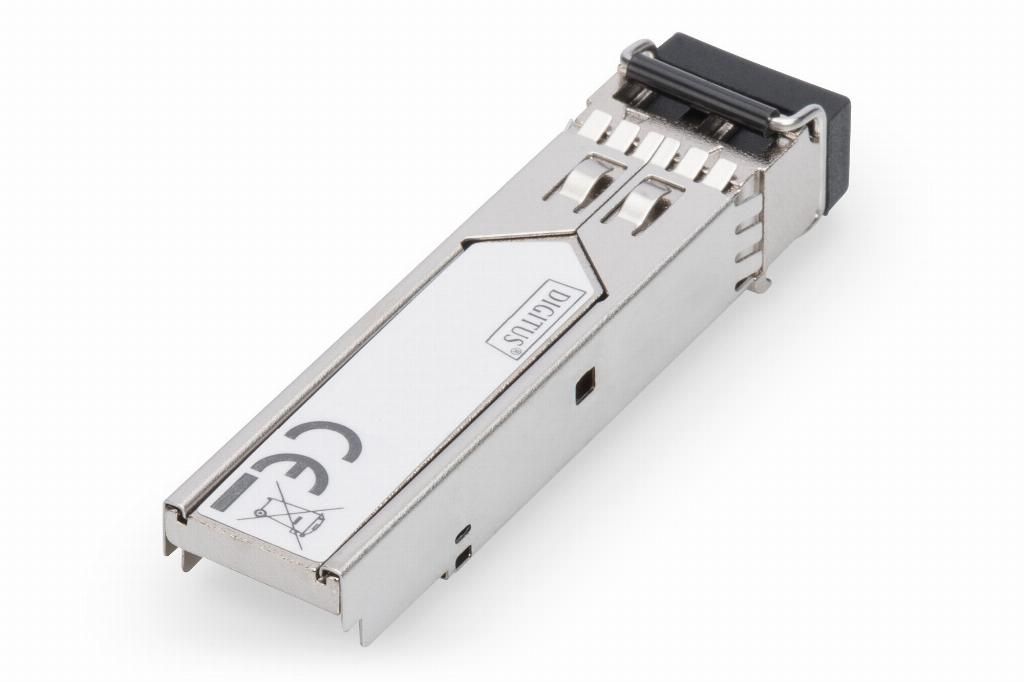

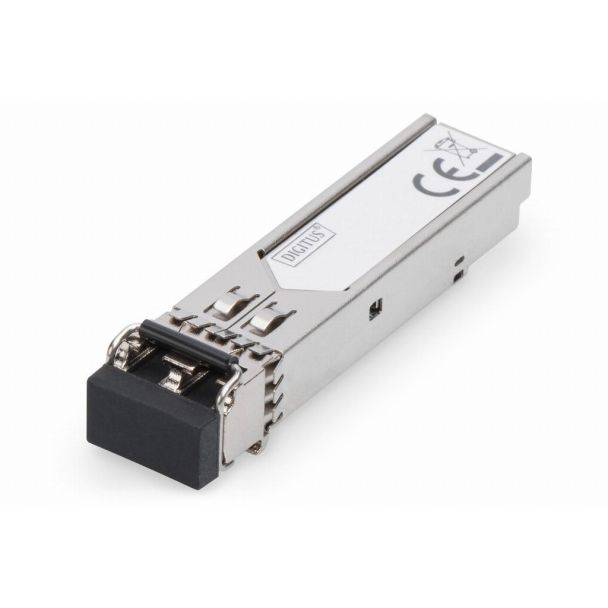

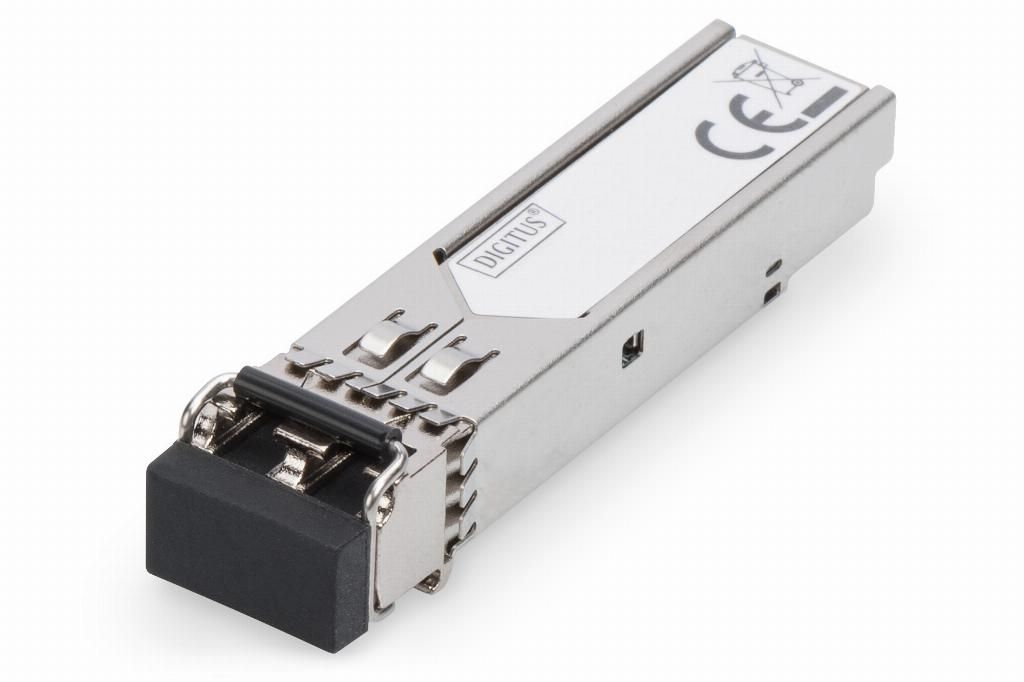

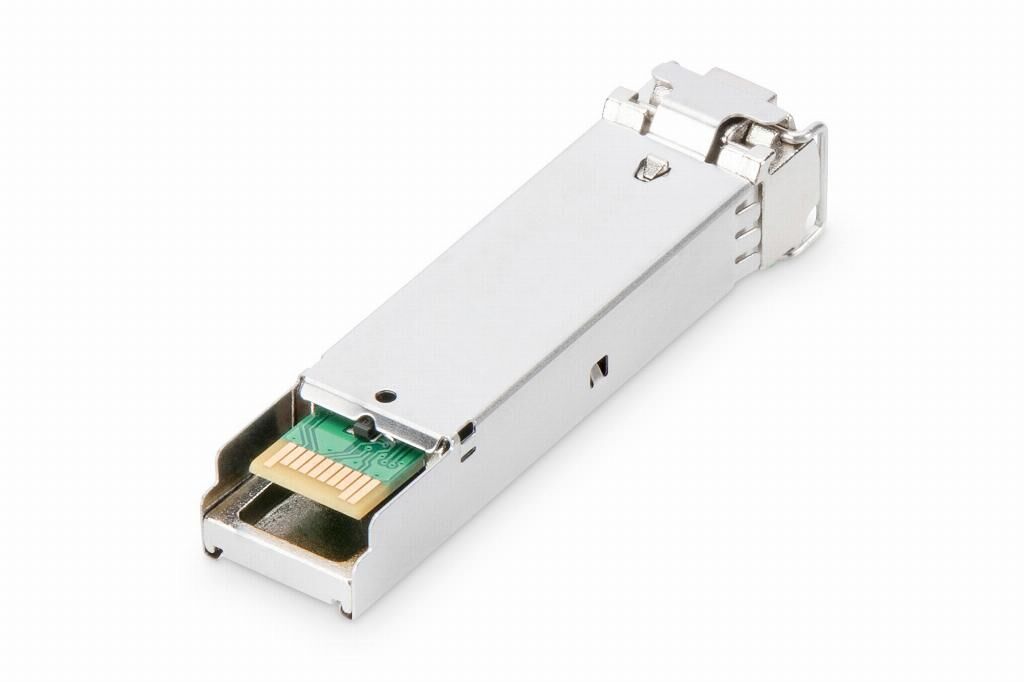

10Gb/s SFP+SR MM Module 850nm 300m DDM Industrial grade
- SFP+ package with LC connector
- 850nm VCSEL Laser and PIN photo detector
- Up to 300m transmission on 2000MHz-km MMF
- Up to 11.3Gbps Data Links
- Power dissipation < 1W
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compatible with SFF8472
- Operating temperature: -40 ~ 85 ° C
The 10Gb/s industrial SFP+ module allows network connectivity in industrial environments. The range of up to 300m and the wide temperature range of -40 °C up to 85°C with a power consumption of < 1W make the DN-81212 SFP+ a reliable transceiver in harsh environments.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-81212 |
| Ean | 4016032476948 |
| Modified on | 10-02-2022 |
| Product title | Digitus 10Gb/s SFP+SR MM 850nm 300m DDM Industrial |
| Long Product Name | 10G SFP+SR 850nm 300m LC DDM Industrial 300m LC DDM Industrial |
| Product specifications | PerformanceSFP transceiver type* Fiber optic Maximum data transfer rate* 11300 Mbit/s Interface type* SFP+ Multi-mode fiber (MMF) supported Yes Fiber optic connector LC Maximum transfer distance 300 m Wavelength 850 nm Digital Diagnostics Monitoring (DDM) No FeaturesProduct colour Silver Housing material Metal Easy to install Yes Country of origin China Brand compatibility Digitus PowerPower consumption (typical) 1 W Operational conditionsMinimum operating temperature -40 °C Maximum operating temperature 85 °C Weight & dimensionsWidth 57.5 mm Depth 13.7 mm Height 10.8 mm Weight 30 g Packaging dataNumber of products included 1 pc(s) Package width 117 mm Package depth 93 mm Package height 32 mm Package volume 348.192 cm³ Package weight 41.667 g Logistics dataUK Trade Tariff code 85176200 Master (outer) case width 560 mm Master (outer) case length 400 mm Master (outer) case height 260 mm Master (outer) case gross weight 10 kg Master (outer) case volume 58240 cm³ Products per master (outer) case 240 pc(s) |
| Essential qualities |
|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11300 Mbit/s |
| Interface type | SFP+ |
