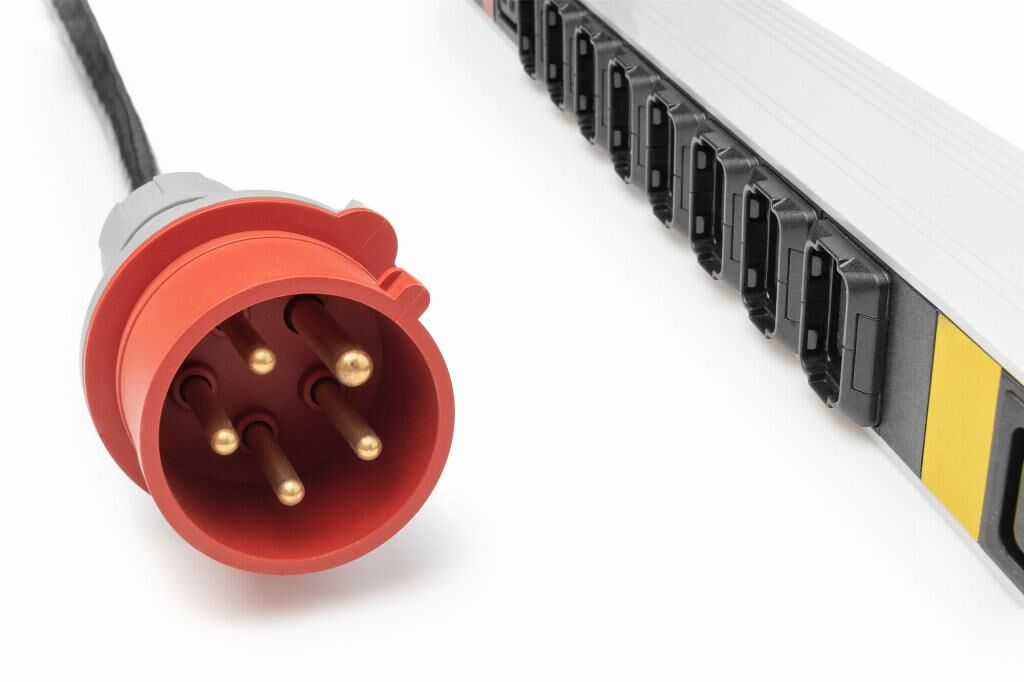

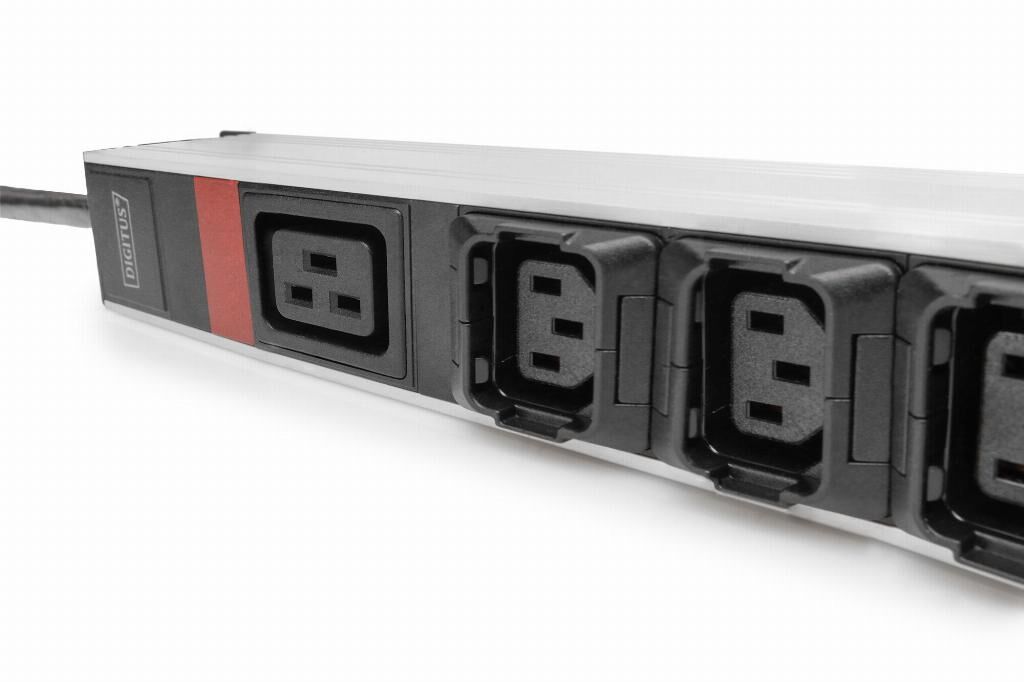

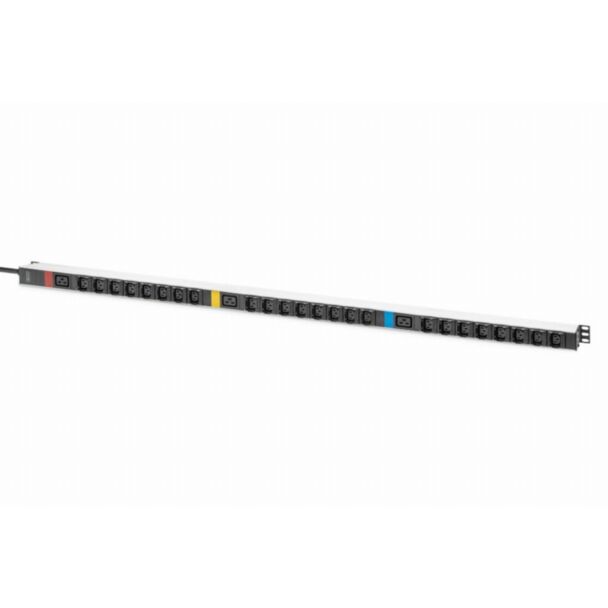

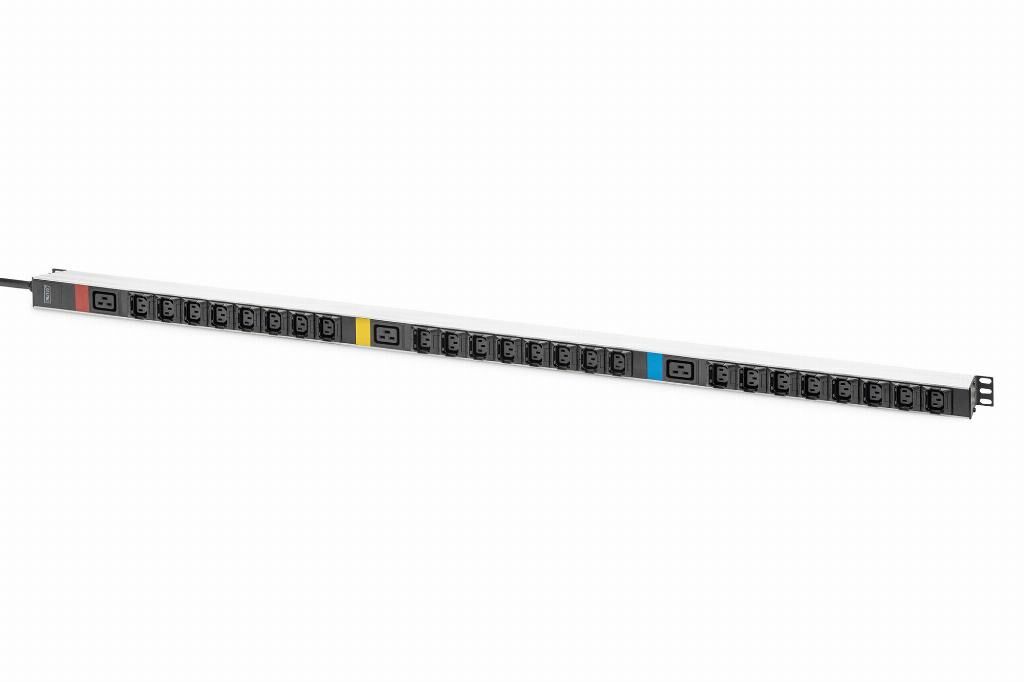

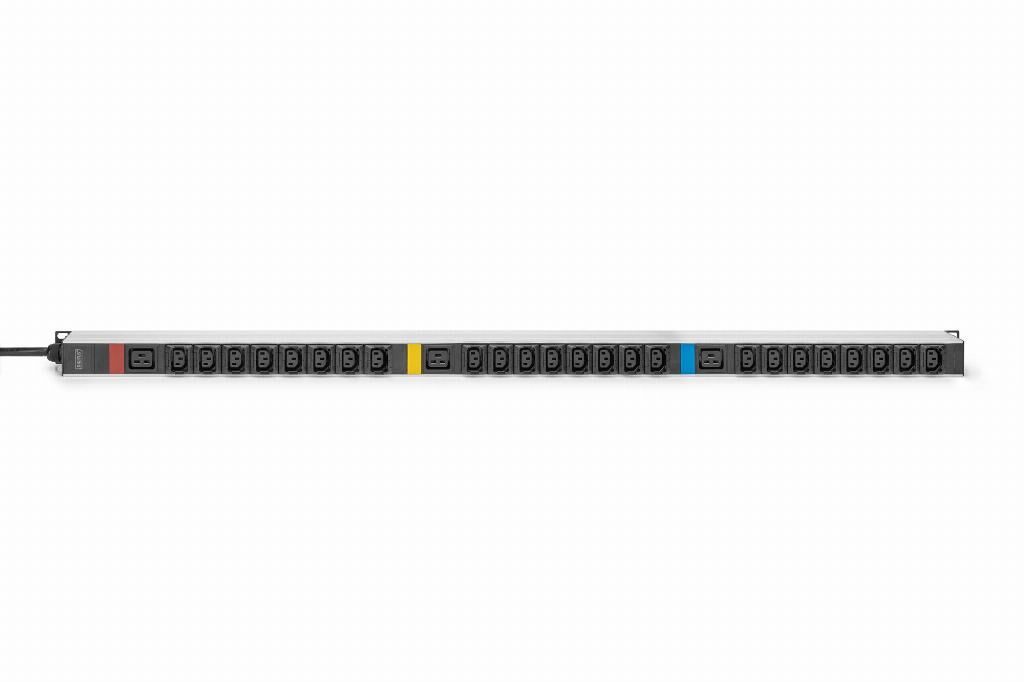

Digitus Basic IT PDU, 3-phase 16A, 24 x C13, 3 x C19, 3 m supply cable, IEC 60309 16 A plug
GTIN: 4016032485971
IT BASIC PDU, 3PH, 16A, 24 x C13, 3 x C19 Vertical, 3m cable, IEC309 3Ph-16A plug
Secure and professional power distribution solution for demanding IT requirements in network and server cabinets
- Optimum design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets

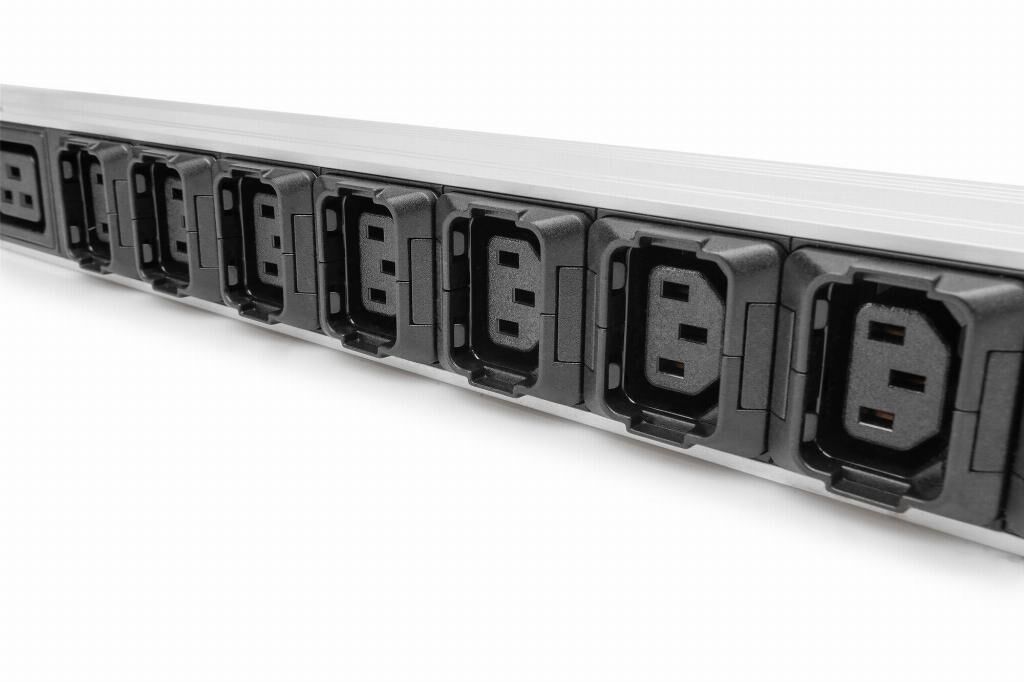

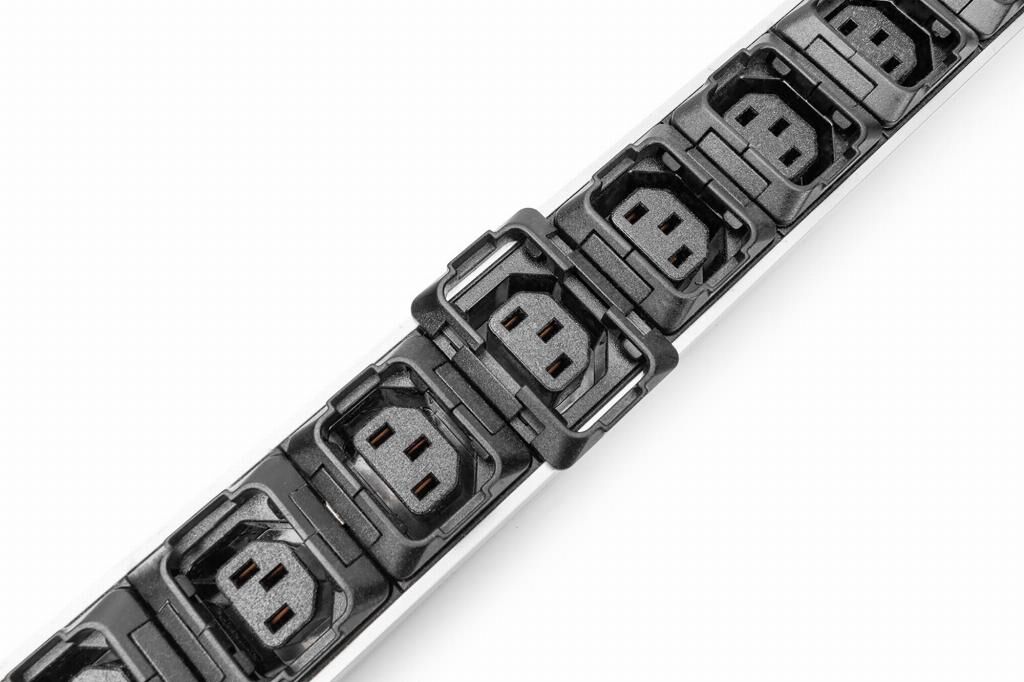

- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging
- Color display for each phase
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with pull-out protection. It is designed for vertical installation, which saves height units and provides more space for additional devices. The socket strip with 27 outlets has excellent physical properties and is designed for an output of up to 4,000 W (250VAC / 16A), enabling the best performance to be achieved with the corresponding load.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95452 |
| Ean | 4016032485971 |
| Modified on | 12-02-2023 |
| Product title | Digitus Basic IT PDU, 3-phase 16A, 24 x C13, 3 x C19, 3 m supply cable, IEC 60309 16 A plug |
| Long Product Name | IT BASIC PDU, 3PH, 16A, 24 x C13, 3 x C19 Vertical, 3m cable, IEC309 3Ph-16A plug |
| Product specifications | DesignPDU types* Basic Type Three-phase Rack capacity* 0U Mounting Vertical Housing material Aluminium Product colour Black On/off switch Yes Ports & interfacesAC outlets quantity* 28 AC outlet(s) Power plug IEC 60309 AC outlet types* C13 coupler, C19 coupler Master AC outlets quantity 24 Slave AC outlets quantity 3 FeaturesCable length 3 m PowerNominal input voltage* 400 V AC input frequency 50 - 60 Hz Maximum current* 16 A Block 1 output current 10 A PowerBlock 2 output current 16 A Nominal output voltage 230 V Load capacity 11000 VA Number of phases 3 Maximum power 4000 W Weight & dimensionsWidth 45 mm Depth 1288.5 mm Height 60 mm Packaging dataPackage weight 1.5 kg Package width 145 mm Package depth 1400 mm Package volume 14210 cm³ Packaging contentManual Yes Logistics dataUK Trade Tariff code 85444290 Country of origin China |
| Essential qualities |
|
| PDU types | Basic |
| Rack capacity | 0U |
| AC outlets quantity | 28 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 230 V |
| Maximum current | 16 A |
