Digitus Breakout cable 12 Fiber, SM G.657.A1 LC/UPC-LC/UPC, universal, Color black, 30 m
GTIN: 4016032485100

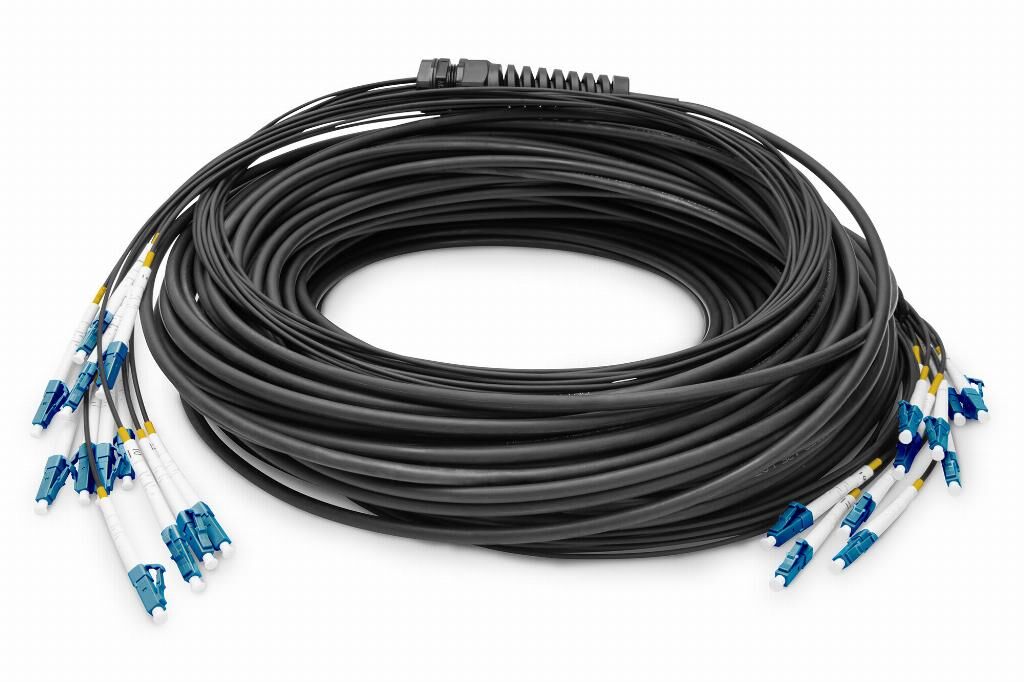

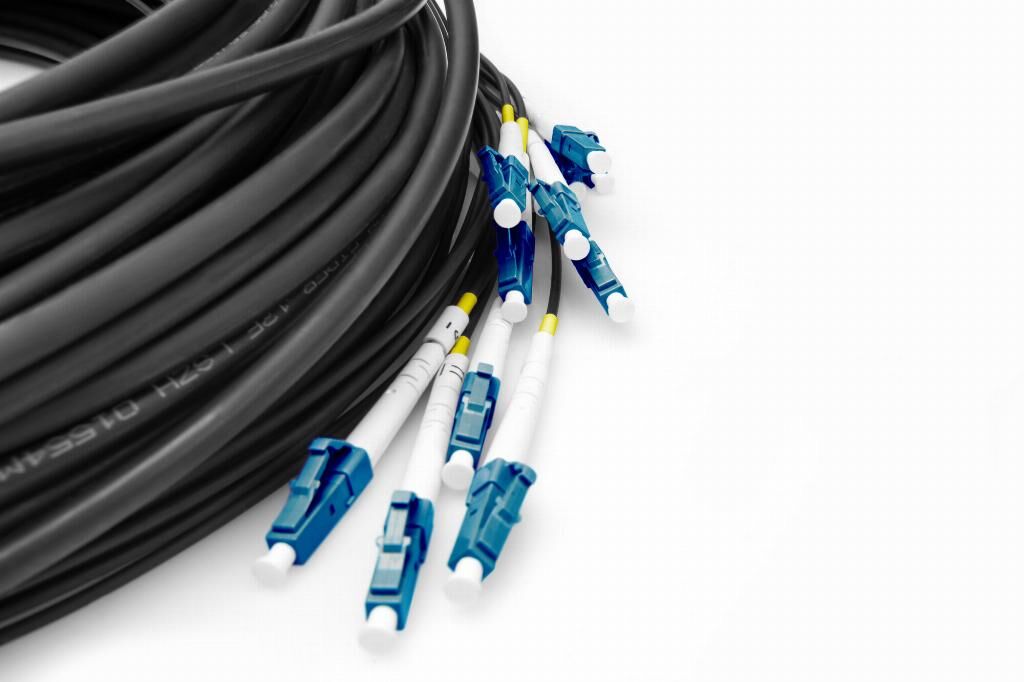

Breakout cable 12 Fiber, SM G.657.A1 LC/UPC-LC/UPC, universal, Color black, 30m
Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.
- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences

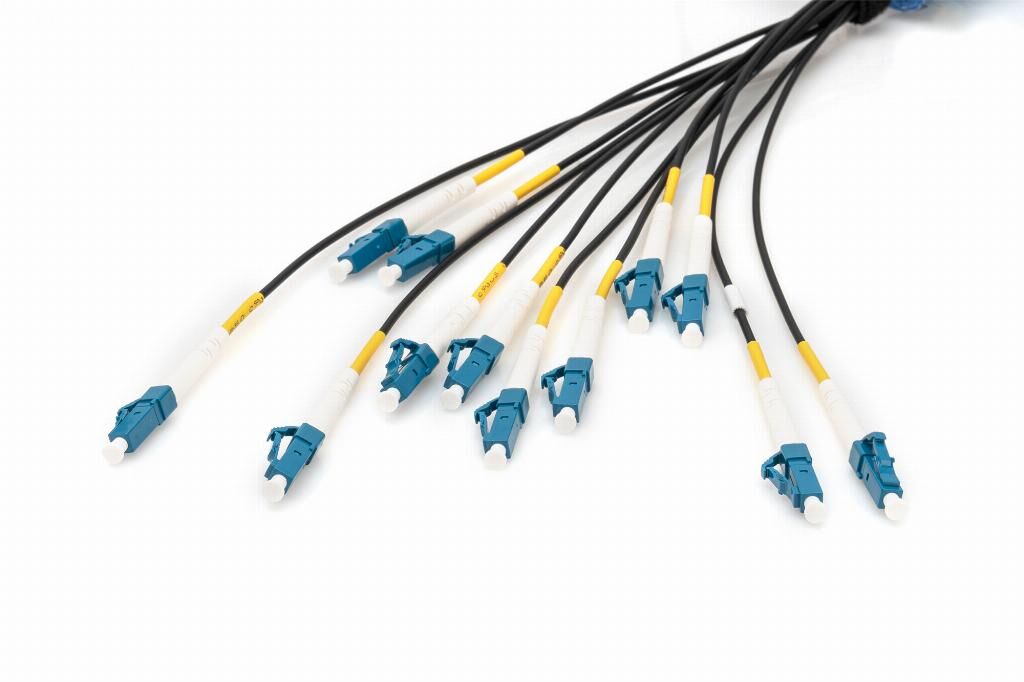

- Individual mechanically protected fibers
- Robust cable construction

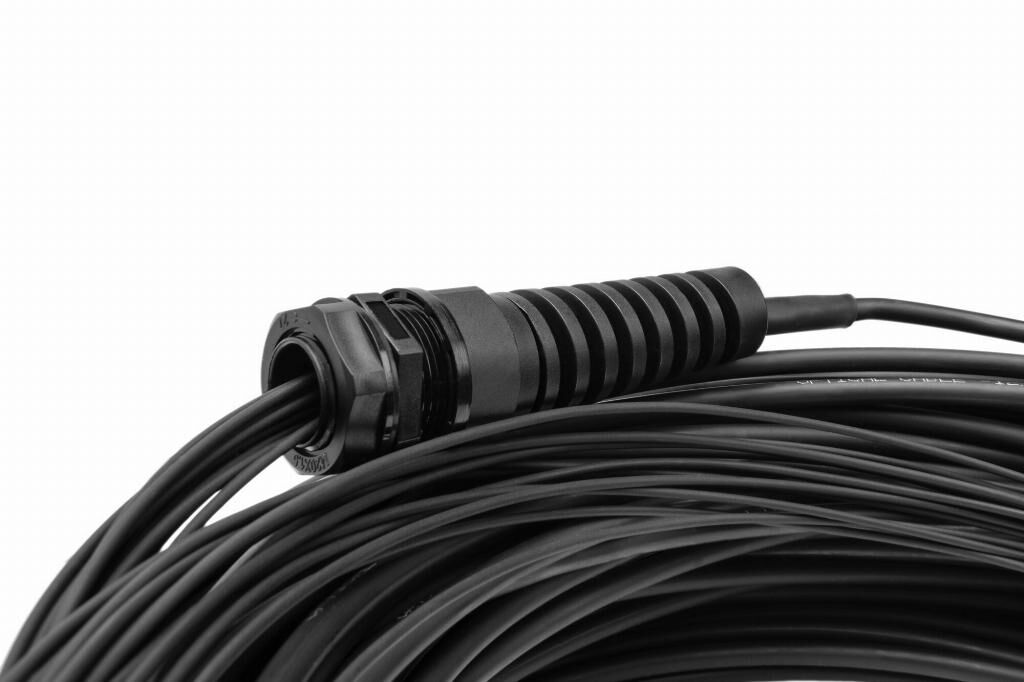

- Pull-in aid on both sides for secure installation
This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-2A33CU030BK-BBB |
| Ean | 4016032485100 |
| Modified on | 24-10-2022 |
| Product title | Digitus Pre-assembled Fiberglass Universal Breakout Cable, Single Mode OS2, 12 Fibers, LC/UPC - LC/UPC |
| Long Product Name | Breakout cable 12 Fiber, SM G.657.A1 LC/UPC-LC/UPC, universal, Color black, 30m |
| Product specifications | FeaturesCable length* 30 m Fibre optic type OS2 Connector 1* LC Connector 2* LC Connector 1 gender* Male Connector 2 gender* Male Connector polish type UPC Cable type* U-DQ(ZN) BH Product colour* Black Core diameter 9 µm Cladding diameter 125 µm Fiber mode structure Single-mode Insertion loss 0.3 dB Return loss 50 dB Jacket material* Low smoke zero halogen (LSZH) Plug and Play Yes FeaturesCountry of origin China Operational conditionsOperating temperature (T-T) -20 - 70 °C Storage temperature (T-T) -20 - 70 °C Packaging dataQuantity per pack 1 pc(s) Package width 360 mm Package depth 360 mm Package volume 23328 cm³ Package weight 2.75 kg Logistics dataUK Trade Tariff code 85447000 Other featuresNumber of optical fibres 12 |
| Essential qualities |
|
| Cable length | 30 m |
| Cable type | U-DQ(ZN) BH |

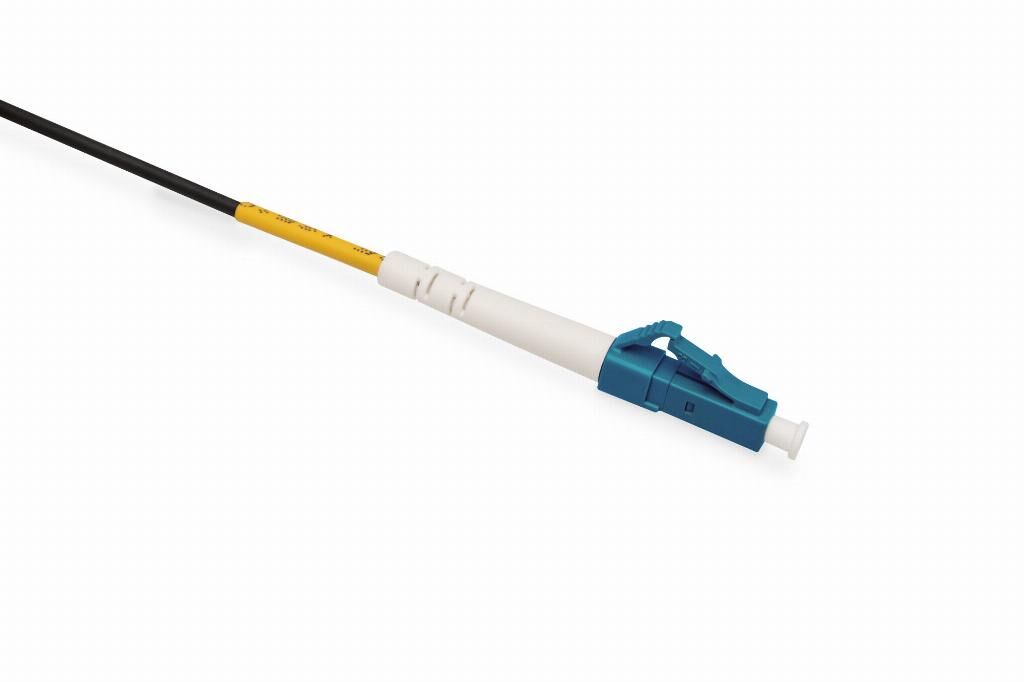

| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Low smoke zero halogen (LSZH) |
