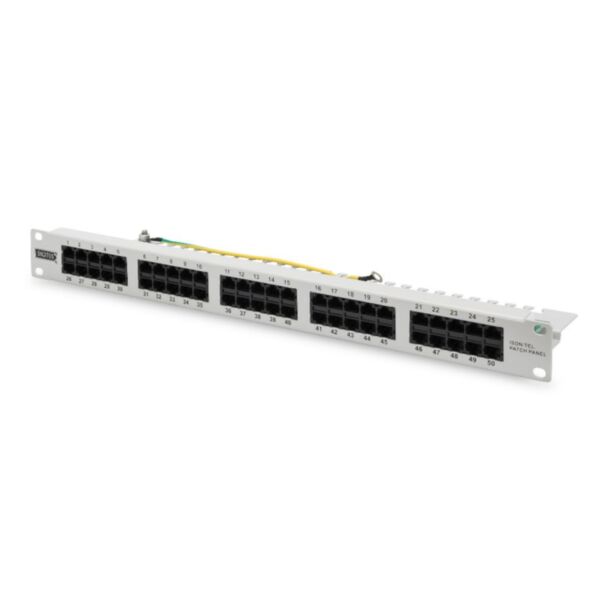

Digitus CAT 3 ISDN patch panel 50-port, unshielded

Name: Digitus CAT 3 ISDN patch panel 50-port, unshielded
Brand: Digitus
SKU: DIG-DN-91350-1
Price: 63.257001 EUR
Availability: InStock

GTIN: 4016032269021

In stock

SKU

DIG-DN-91350-1

Be the first to review this product

€63.26 €51.85

Your legal guarantee rights

Manufacturers: Digitus

CAT 3 ISDN Patch Panel, unshielded, 50-port RJ45, 8P4C, LSA, 1U, rack mount, grey, 482x44x109

Digitus CAT 3 ISDN patch panel 50-port, unshielded

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

The ISDN Patch Panels from DIGITUS® are available as 25- or 50-port version. With 1.5 mm galvanized cold-rolled steel they are perfectly suitable for 19" rack mounting.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91350-1
Ean	4016032269021
Modified on	12-09-2009
Product title	Digitus CAT 3 ISDN patch panel, unshielded, grey
Long Product Name	CAT 3 ISDN Patch Panel, unshielded, 50-port RJ45, 8P4C, LSA, 1U, rack mount, grey, 482x44x109
Product specifications	Network Ports quantity 50 Connector(s) RJ-45 Cable types supported Cat3 Design Product colour Grey Mounting Rack mounting Rack capacity 1U Packaging data Package width 514 mm Packaging data Package depth 50 mm Package weight 1.2 kg Package volume 3777.9 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098

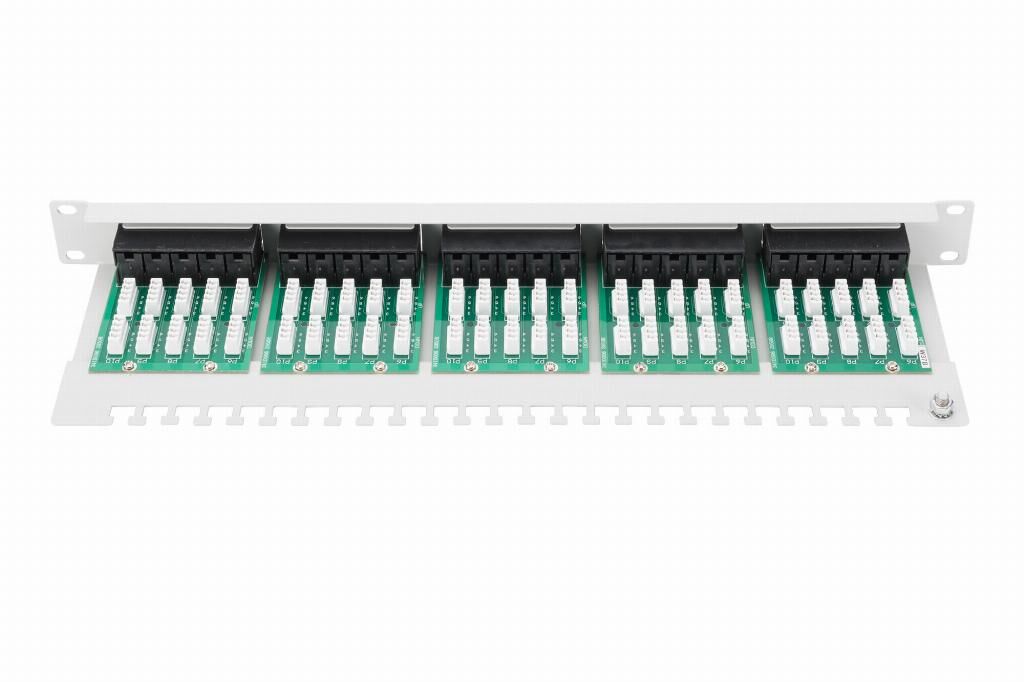

Essential qualities	Transmission properties: Category 3 Area of application: Up to 16 MHz, 10Base-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P4C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Central ground connection Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.6 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze Ground wire: 18 AWG, 40 cm Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Carrying capacity: 1A at 50 °C Insulation resistance: > 500 MOhm Contact resistance: > 2.5 MOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Color: Grey (RAL 7035)
Ports quantity	50
Mounting	Rack mounting
Rack capacity	1U
