Digitus CAT 5e Class D Keystone Module, shielded

Name: Digitus CAT 5e Class D Keystone Module, shielded
Brand: Digitus
SKU: DIG-DN-93512
Price: 5.270401 EUR
Availability: InStock

GTIN: 4016032366300

In stock

SKU

DIG-DN-93512

Be the first to review this product

€5.27 €4.32

Manufacturers: Digitus

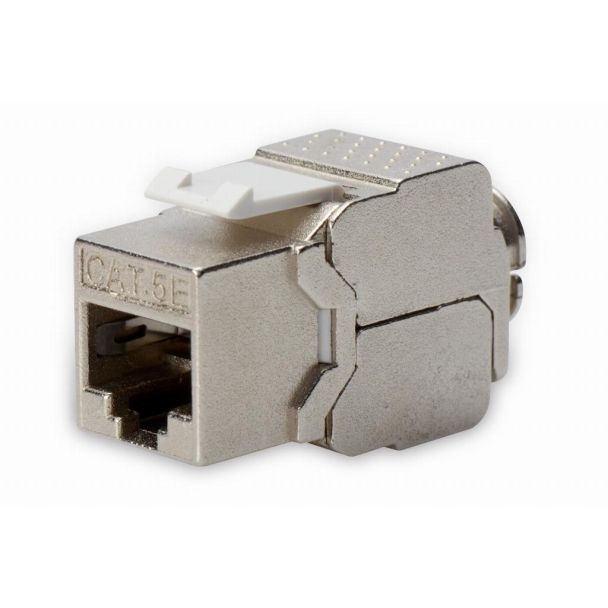

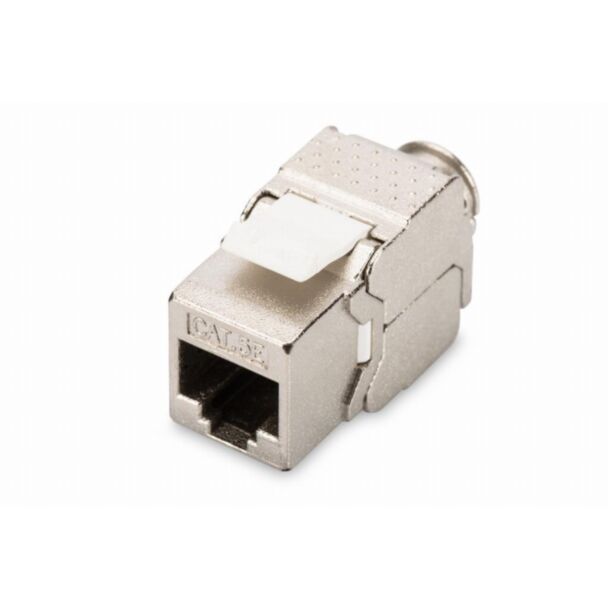

CAT 5e Keystone Jack, shielded Class D, RJ45 to LSA, tool free connection

Digitus CAT 5e Class D Keystone Module, shielded

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

CAT 5e Keystone Jack, shielded,Class D, RJ45 to LSA, tool free connection

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-93512
Ean	4016032366300
Modified on	01-05-2015
Product title	Digitus CAT 5e Class D Keystone Module, shielded
Long Product Name	CAT 5e Keystone Jack, shielded Class D, RJ45 to LSA, tool free connection
Product specifications	Features Product colour* Silver Connector 1* RJ45 Connector 2* LSA Weight & dimensions Weight 23 g Packaging data Package volume 210 cm³ Package width 100 mm Packaging data Package depth 20 mm Package weight 12 g Logistics data UK Trade Tariff code 85366990 Country of origin China Harmonized System (HS) code 85369010
Essential qualities	Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for patch panels and mounting outlets RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Tool-free installation 360° shield coverage Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Product colour	Silver
Connector 1	RJ45
Connector 2	LSA
