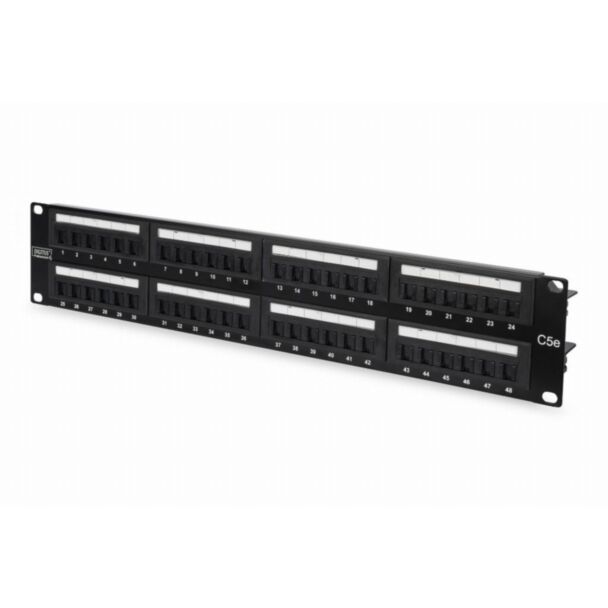

Digitus CAT 5e Patch Panel 48-port

Name: Digitus CAT 5e Patch Panel 48-port
Brand: Digitus
SKU: DIG-DN-91548U
Price: 56.242001 EUR
Availability: InStock

GTIN: 4016032241478

In stock

SKU

DIG-DN-91548U

Be the first to review this product

€56.24 €46.10

Your legal guarantee rights

Manufacturers: Digitus

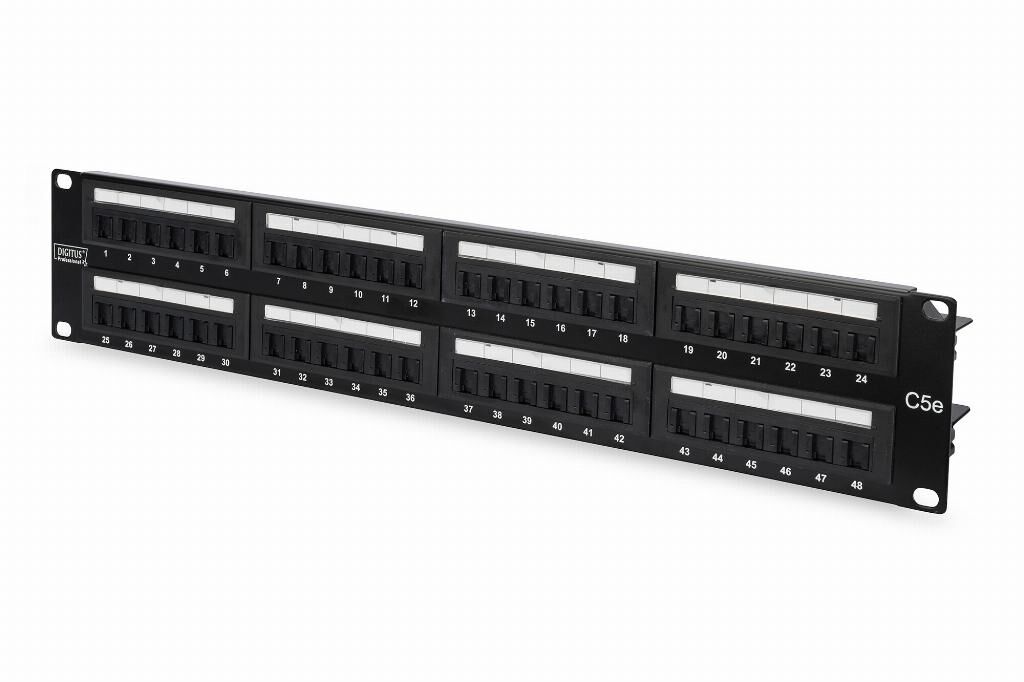

CAT 5e Patch Panel, unshielded, 48-port RJ45 8P8C, LSA, 2U, rack mount, black, 482x44x109mm

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

The unshielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units).The housing is made of 1.5 mm galvanized, cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91548U
Ean	4016032241478
Modified on	26-01-2013
Product title	Digitus CAT 5e Patch Panel
Long Product Name	CAT 5e Patch Panel, unshielded, 48-port RJ45 8P8C, LSA, 2U, rack mount, black, 482x44x109mm
Product specifications	Network Ports quantity 48 Connector(s) RJ-45 Design Product colour Black Material Galvanized steel, SECC Mounting Rack mounting Rack capacity 1U Packaging data Package width 560 mm Packaging data Package depth 75 mm Package weight 1.04 kg Package volume 6300 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ports quantity	48
Mounting	Rack mounting
Rack capacity	1U
