Digitus CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount

Name: Digitus CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount
Brand: Digitus
SKU: DIG-DN-9002-N
Price: 9.406201 EUR
Availability: InStock

GTIN: 4016032175681

In stock

SKU

DIG-DN-9002-N

Be the first to review this product

€9.41 €7.71

Your legal guarantee rights

Manufacturers: Digitus

CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

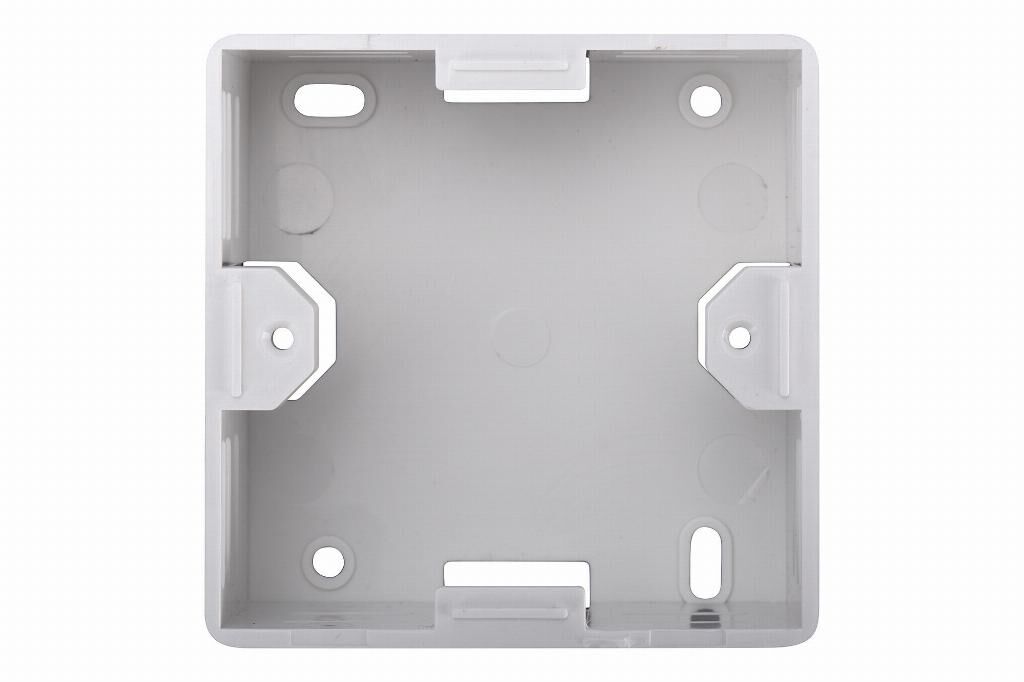

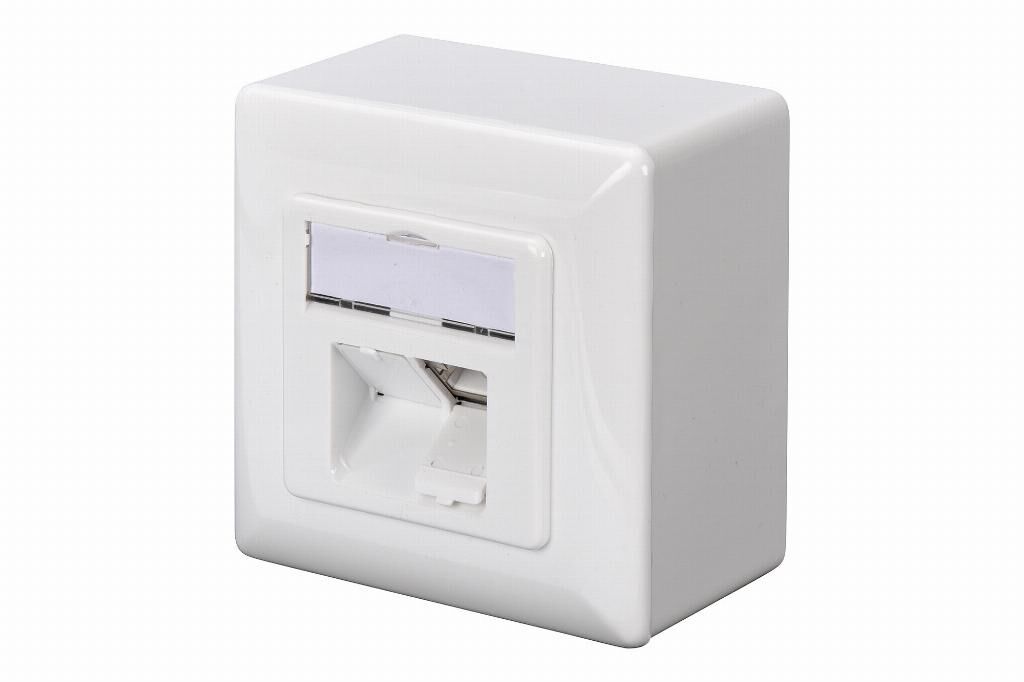

- Surface mount design and horizontal cable entry provide a neat and easy accessable installation

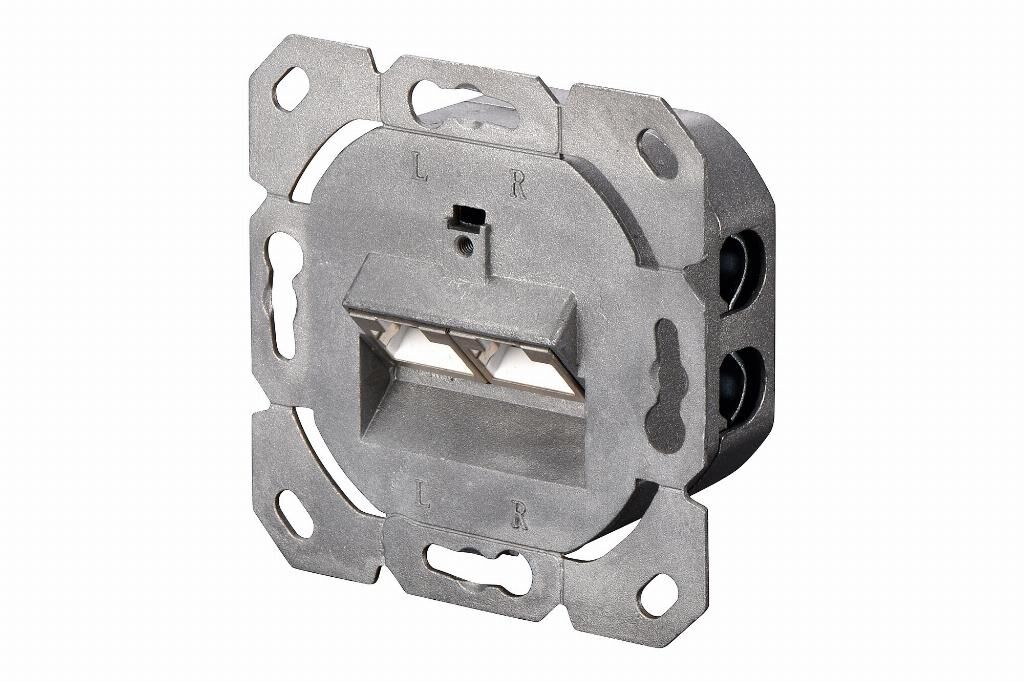

- Ensured safety due to completely shielded RJ45 sockets and LSA strips

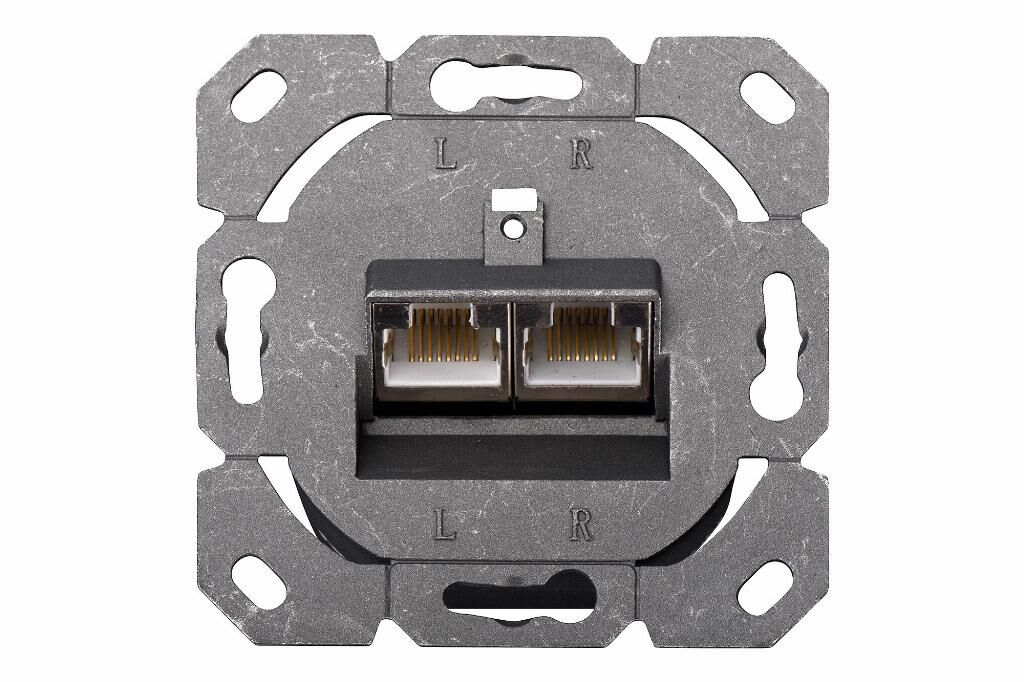

- The sockets are angled by 40° which makes the plug in of patch cables very easy

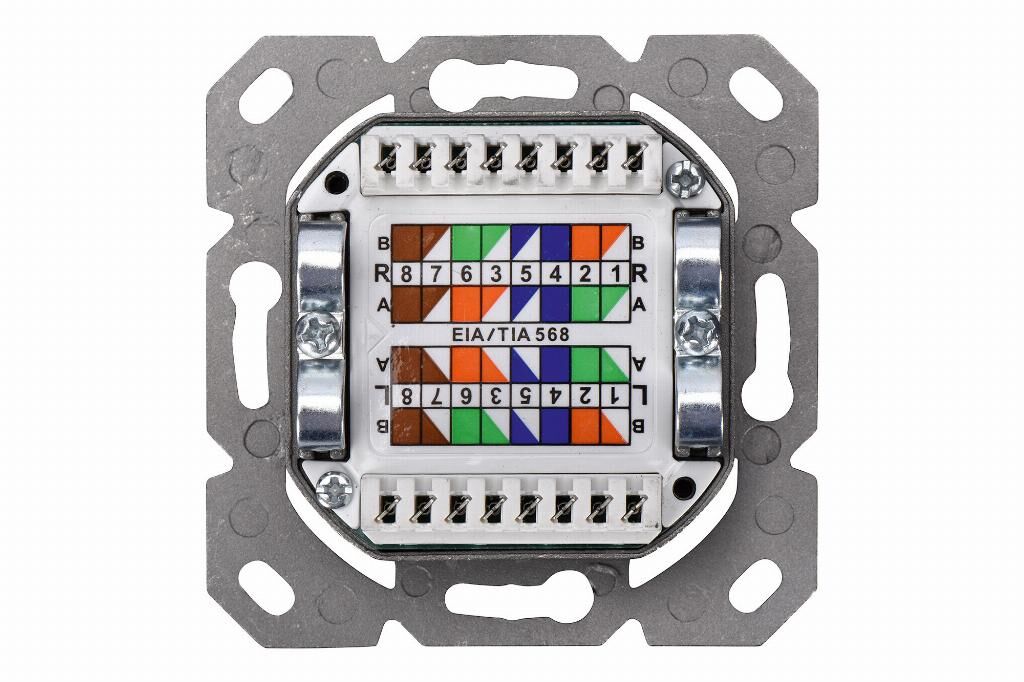

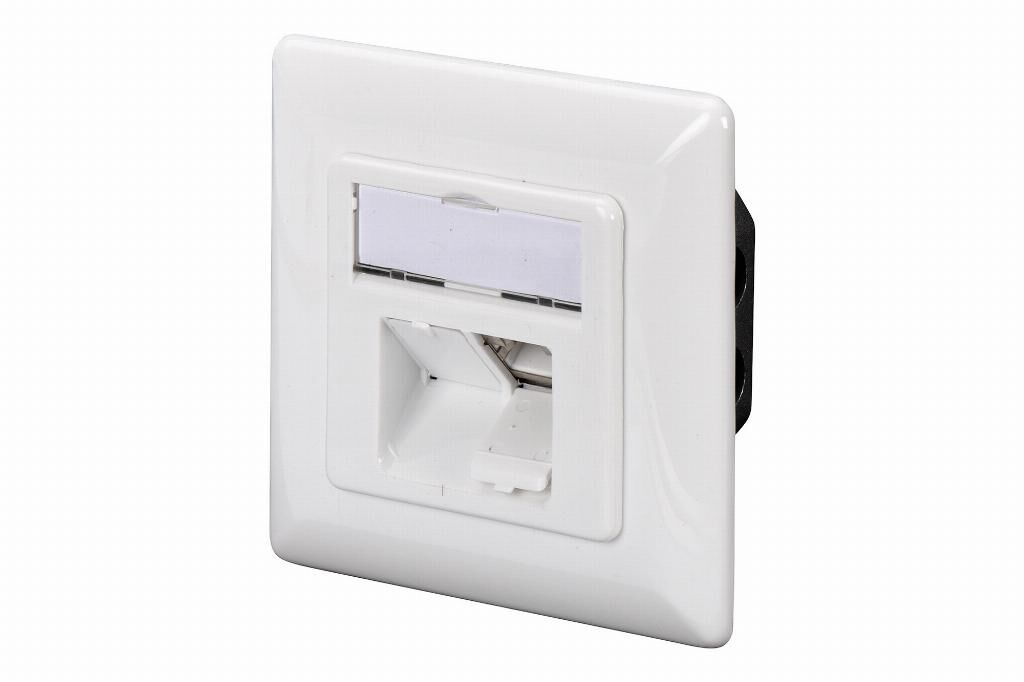

The shielded CAT 5e network outlets from DIGITUS® are certificated to CAT 5e EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-9002-N
Ean	4016032175681
Modified on	24-06-2013
Product title	Digitus CAT 5e, Class D, wall outlet, shielded, surface mount
Long Product Name	CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, surface mount
Product specifications	Features Socket type* RJ-45 Sockets quantity* 2 Networking cable category 5e Design Product colour* White Weight & dimensions Width 80 mm Height 80 mm Logistics data Country of origin China Harmonized System (HS) code 85366990

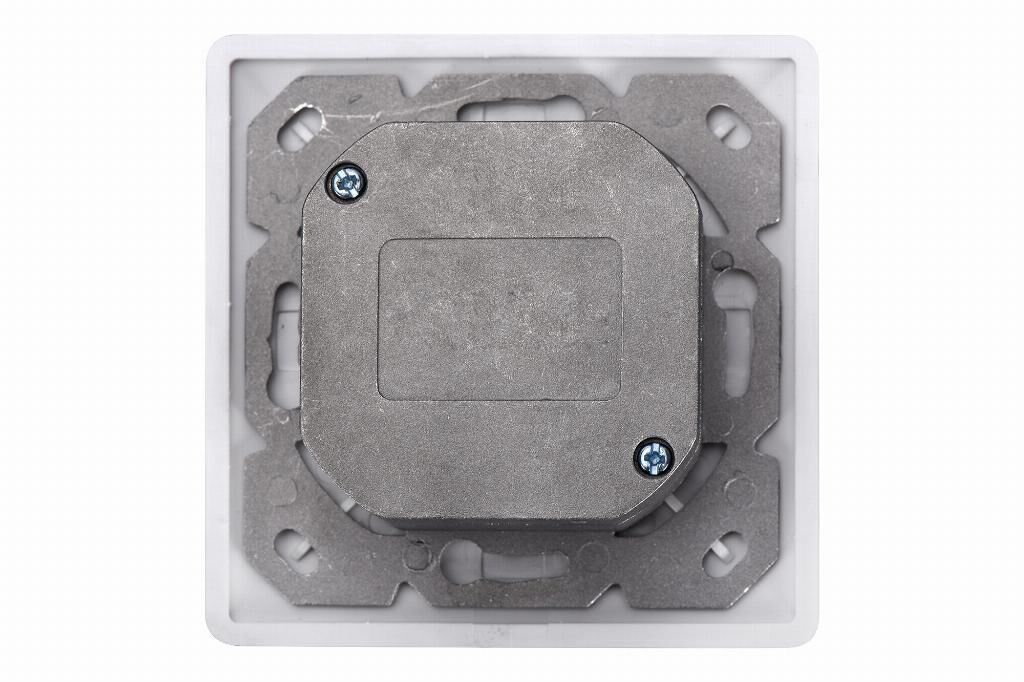

Essential qualities	Transmission property: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Not compatible with R&M freenet patch cords Colour: White RAL9003
Socket type	RJ-45
Sockets quantity	2
Product colour	White
