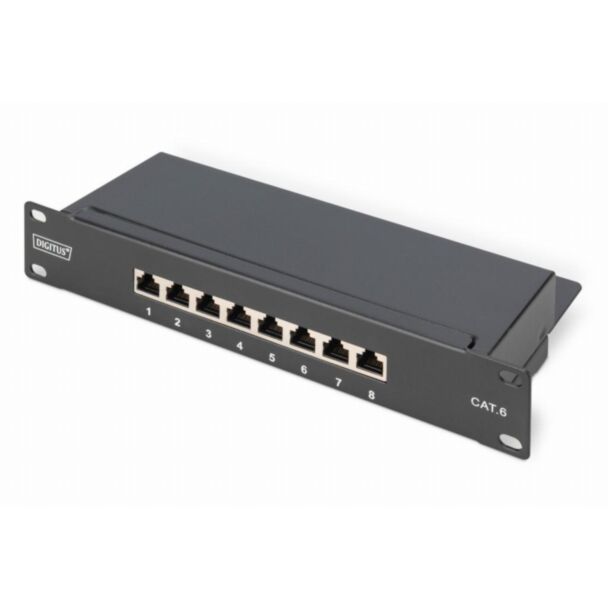

Digitus CAT 6 8-port, Class E Patch Panel, shielded

Name: Digitus CAT 6 8-port, Class E Patch Panel, shielded
Brand: Digitus
SKU: DIG-DN-91608S
Price: 29.280001 EUR
Availability: InStock

GTIN: 4016032241577

In stock

SKU

DIG-DN-91608S

Be the first to review this product

€29.28 €24.00

Your legal guarantee rights

Manufacturers: Digitus

CAT 6, Class E patch panel, shielded, 8-port RJ45 8P8C, LSA, 1U, 254 mm(10") Rack Mount, black

Digitus CAT 6 8-port, Class E Patch Panel, shielded

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances
- Compact 10" design with 8x RJ45 ports

The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91608S
Ean	4016032241577
Modified on	10-01-2013
Product title	Digitus CAT 6, Class E Patch Panel, shielded, black
Long Product Name	CAT 6, Class E patch panel, shielded, 8-port RJ45 8P8C, LSA, 1U, 254 mm(10") Rack Mount, black
Product specifications	Network Ports quantity 8 Connector(s) RJ-45 Design Product colour Black Mounting Rack mounting Rack capacity 1U Certification UL Packaging data Package width 180 mm Packaging data Package depth 280 mm Package weight 1.5 kg Package volume 3024 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 254 mm (10") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Integrated dust cover Central ground connection 360° shield coverage Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ports quantity	8
Mounting	Rack mounting
Rack capacity	1U
