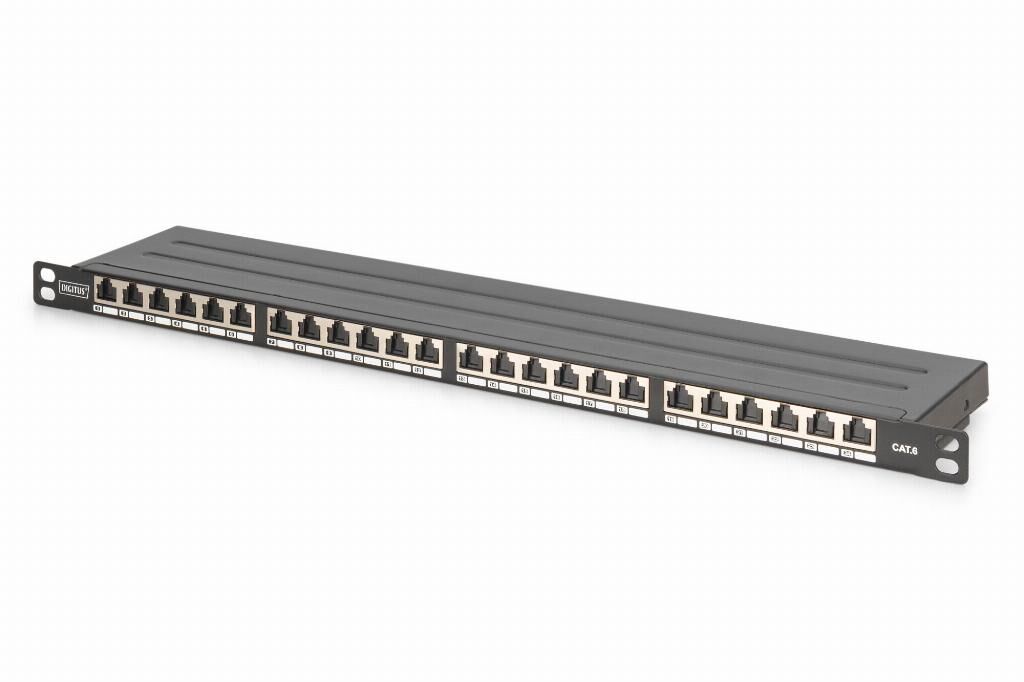

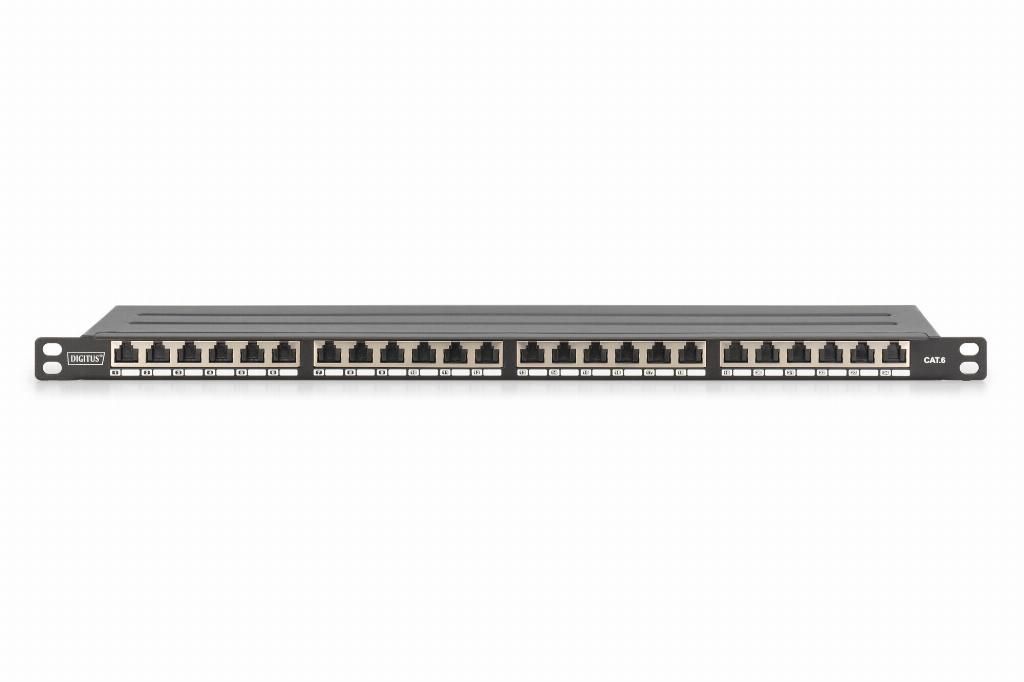

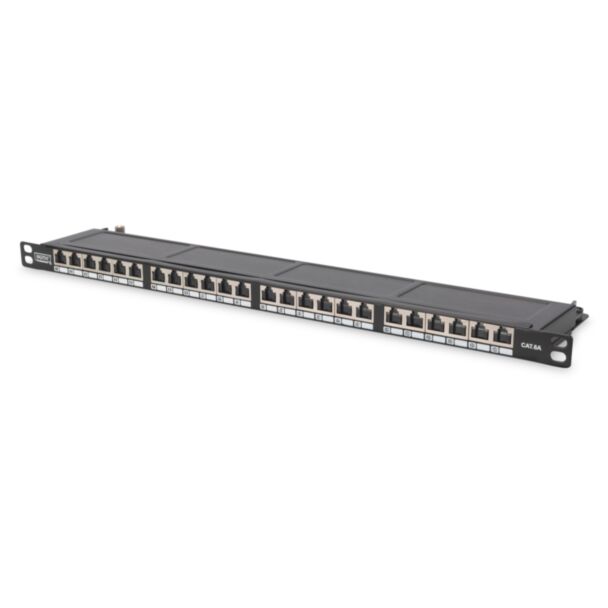

Digitus CAT 6, Class E High Density Patch Panel, shielded, black

Name: Digitus CAT 6, Class E High Density Patch Panel, shielded, black
Brand: Digitus
SKU: DIG-DN-91624S-SL-SH
Price: 100.625601 EUR
Availability: InStock

GTIN: 4016032323297

In stock

SKU

DIG-DN-91624S-SL-SH

Be the first to review this product

€100.63 €82.48

Your legal guarantee rights

Manufacturers: Digitus

CAT 6 Patch Panel, shielded,24-port RJ45 with shutter, 8P8C, LSA, 0.5U, 19" rack mount, bl

Digitus CAT 6, Class E High Density Patch Panel, shielded, black

Description

More Information

Reviews

Very space-saving (only 0.5U) - With dust caps - Outstanding performance and connection quality for your network.

- 0.5U
- CAT6

The DIGITUS® 24-port 0.5U patch panel offers you a high packing density. As the panel is only 0.5U high, 48 ports (2 panels with 24 ports each) can be installed on 1U.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91624S-SL-SH
Ean	4016032323297
Modified on	18-05-2013
Product title	Digitus CAT 6, Class E High Denisity Patch Panel, shielded, black
Long Product Name	CAT 6 Patch Panel, shielded,24-port RJ45 with shutter, 8P8C, LSA, 0.5U, 19" rack mount, bl
Product specifications	Network Ports quantity 24 Connector(s) RJ-45 Design Product colour Black Material Metal Mounting Rack mounting Rack capacity 0.5U Cable connection 8P8C Certification EN 50173, ISO/IEC 11801 Weight & dimensions Width 483 mm Packaging data Package width 530 mm Package depth 40 mm Package weight 1.29 kg Package volume 2544 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098

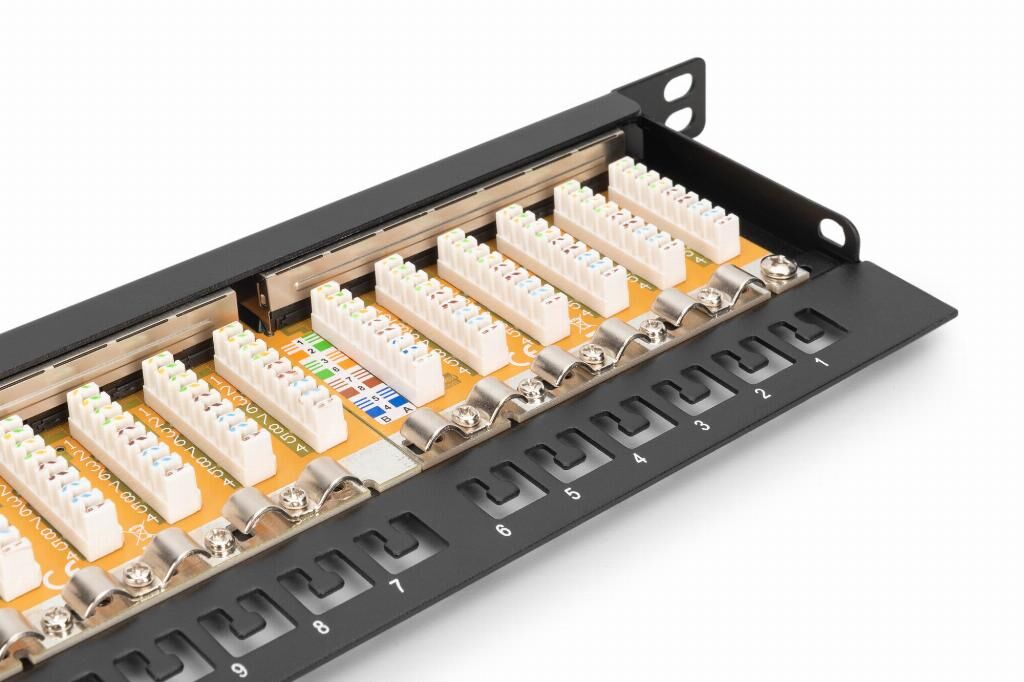

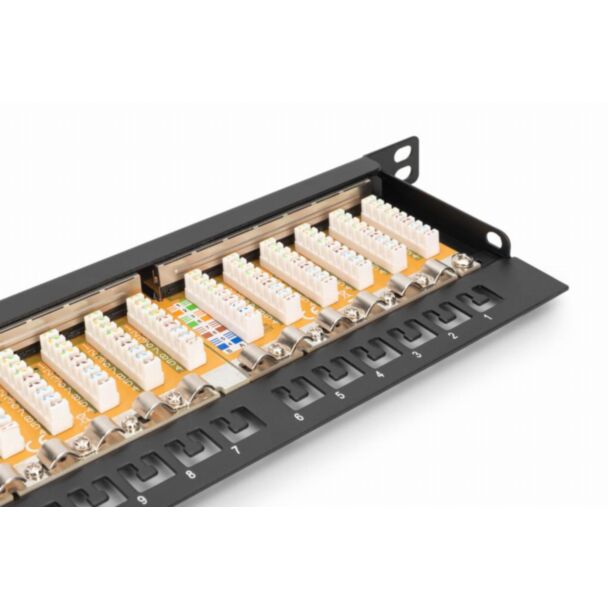

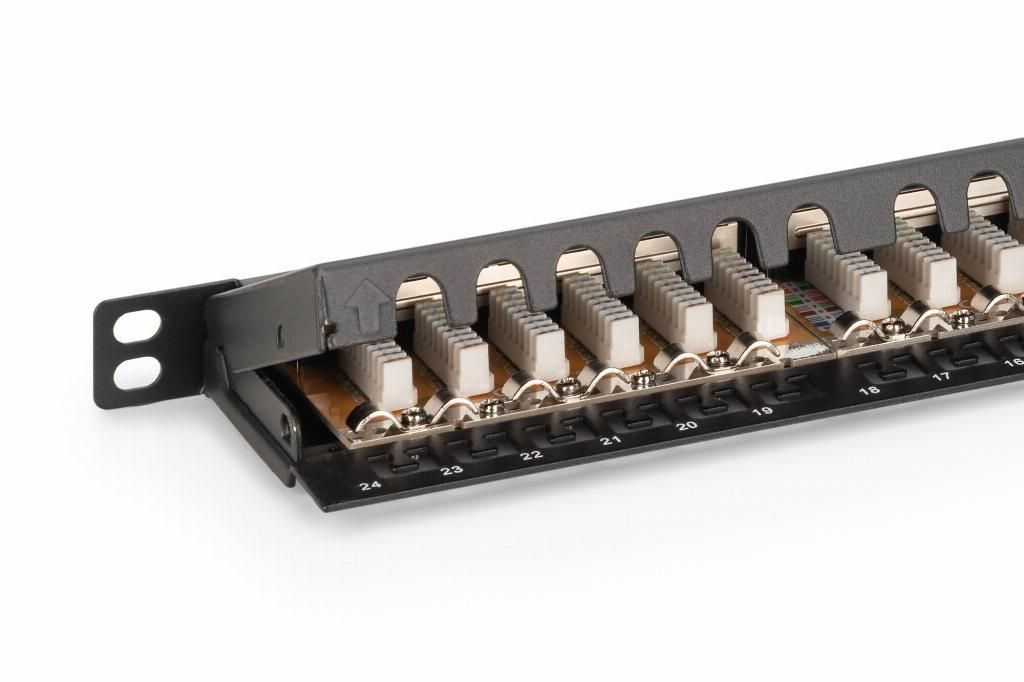

Essential qualities	Application areas: Up to 250 MHz, 1GBase-T Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") rack mounting RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixation by means of quick latches Central earthing connection 360° shield contacting Integrated dust protection flap Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) HE: 0.5
Ports quantity	24
Mounting	Rack mounting
Rack capacity	0.5U
