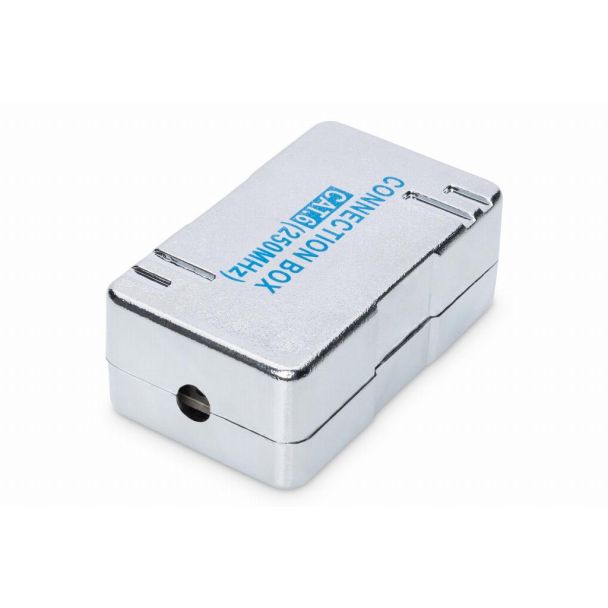

Digitus CAT 6 Connection module for Twisted Pair Cables

Name: Digitus CAT 6 Connection module for Twisted Pair Cables
Brand: Digitus
SKU: DIG-DN-93903
Price: 5.380201 EUR
Availability: InStock

GTIN: 4016032267133

In stock

SKU

DIG-DN-93903

Be the first to review this product

€5.38 €4.41

Manufacturers: Digitus

connection module for twisted pair cables LSA, shielded, CAT 6

Digitus CAT 6 Connection module for Twisted Pair Cables

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-93903
Ean	4016032267133
Modified on	30-10-2013
Product title	Digitus CAT 6 Connection module for Twisted Pair Cables
Long Product Name	connection module for twisted pair cables LSA, shielded, CAT 6
Product specifications	Design Product colour Grey Technical details Nominal current output 1 A Material ABS synthetics Technical details Doesn't contain Halogen Logistics data Country of origin China
Essential qualities	Transmission properties: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B Suitable for connection of installation cables - extension of cables, replacing of defect cable links Integrated strain relief for installation cables Suitable for cables with AWG 22-26 diameter Technical properties: Housing material: ABS UL-94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
