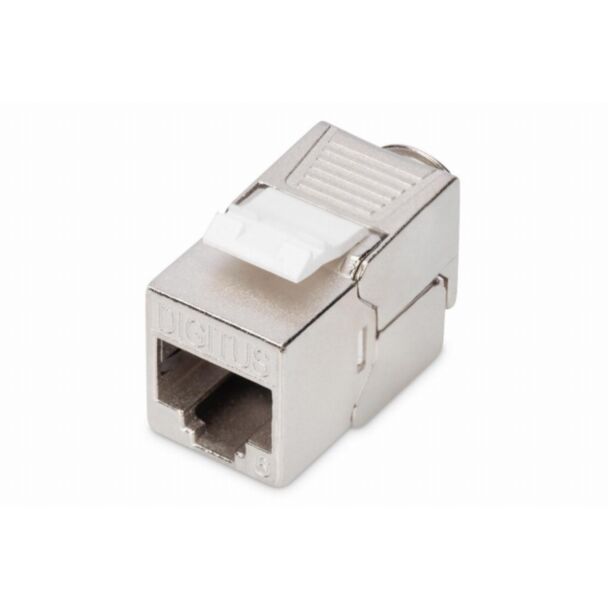

Digitus CAT 6 Keystone module, shielded

Name: Digitus CAT 6 Keystone module, shielded
Brand: Digitus
SKU: DIG-DN-93612-1
Price: 5.734001 EUR
Availability: InStock

GTIN: 4016032378518

In stock

SKU

DIG-DN-93612-1

Be the first to review this product

€5.73 €4.70

Your legal guarantee rights

Manufacturers: Digitus

CAT 6 Keystone Jack, shielded tool free connection

Description

More Information

Reviews

Quick and easy installation without special tools

The item "DN-93612-1" from the DIGITUS® brand is a shielded CAT 6 keystone module with tool-free mounting connection, which offers excellent performance and connection quality for your network. The compact design allows 24 units to be installed in series in 483 mm (19") 1U panels. It is compliant with Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002, ISO/IEC 11801:2002.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-93612-1
Ean	4016032378518
Modified on	06-02-2016
Product title	Digitus CAT 6 Keystone Module, shielded
Long Product Name	CAT 6 Keystone Jack, shielded tool free connection
Product specifications	Features Construction type* Flat Product colour* Silver Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender Female Connector 2 gender Female Connector contacts plating Gold AWG wire size 26/22 Cable types supported Cat6 Plug/connector retention force 30 N Housing material Acrylonitrile butadiene styrene (ABS) Weight & dimensions Width 14 mm Depth 34 mm Weight & dimensions Height 20 mm Weight 22 g Packaging data Package volume 12 cm³ Package width 15 mm Package depth 40 mm Package weight 30.32 g Packaging content Quantity per pack* 1 pc(s) Logistics data UK Trade Tariff code 85366990 Country of origin China Harmonized System (HS) code 85369010

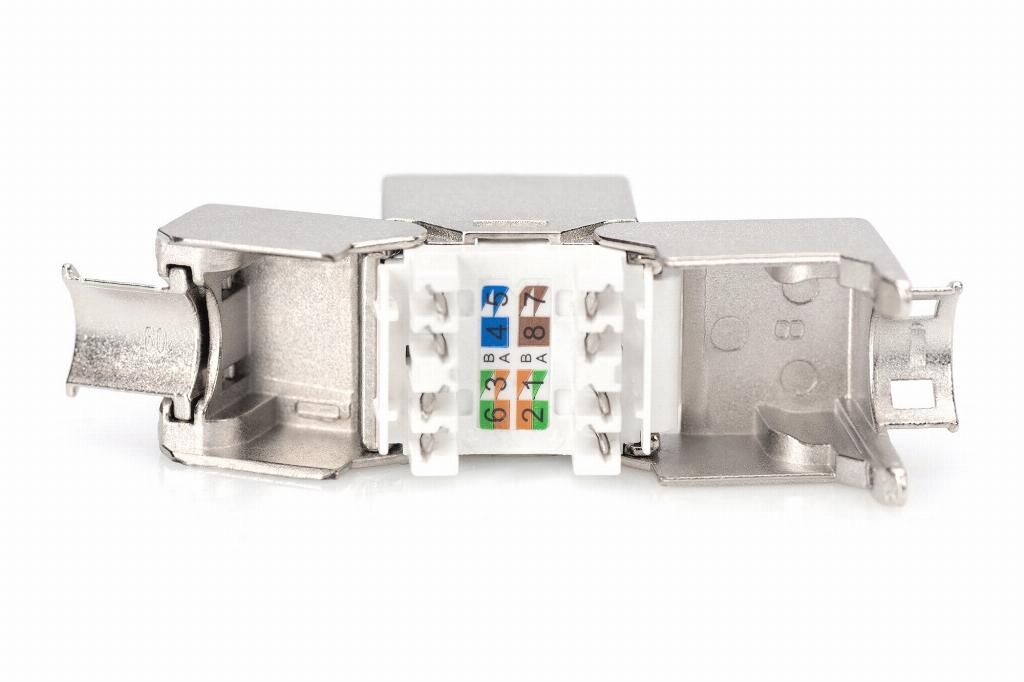

Essential qualities	Transmission property: Category 6, Class E Application areas: Up to 250 MHz, 1GBase-T Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for distribution panel and junction box installation RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Tool-free mounting connection 360° shield contacting Technical features: Housing material: Zinc die-cast, nickel-plated RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 In accordance with IEC 60512-5, IEC 60512-6-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 2	RJ-45
Quantity per pack	1 pc(s)
