Digitus CAT 6 wall outlet, flush mount

Name: Digitus CAT 6 wall outlet, flush mount
Brand: Digitus
SKU: DIG-DN-9005-N
Price: 10.833601 EUR
Availability: InStock

GTIN: 4016032175711

In stock

SKU

DIG-DN-9005-N

Be the first to review this product

€10.83 €8.88

Your legal guarantee rights

Manufacturers: Digitus

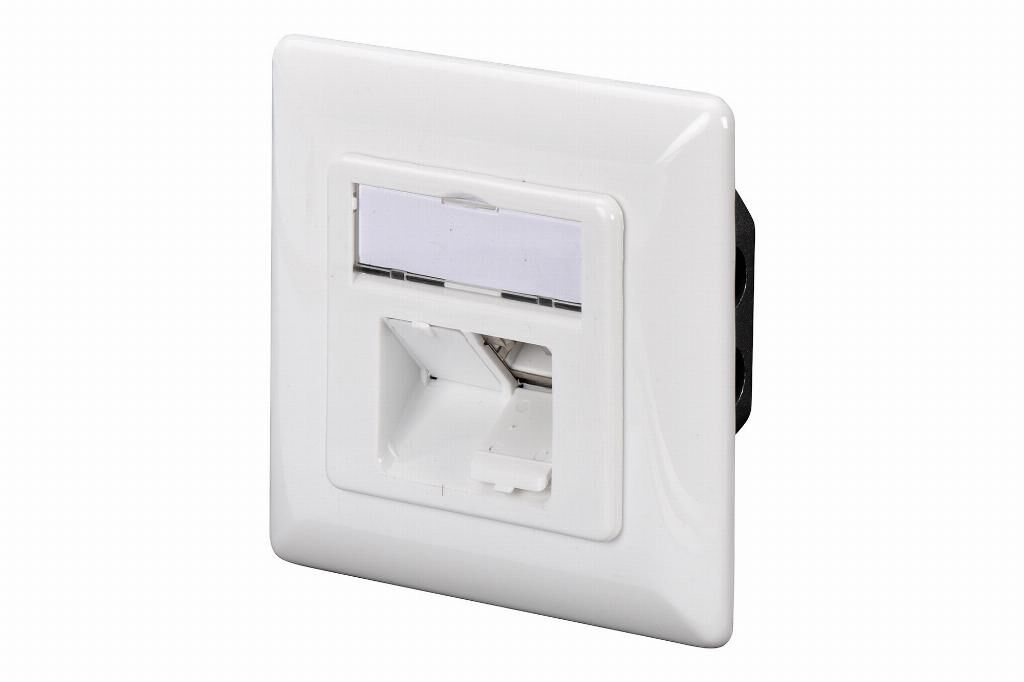

CAT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, flush mount

Description

More Information

Reviews

Full compatible design

- Flush mount design and horizontal cable entry provide a neat installation
- Ensured safety due to completely shielded RJ45 sockets and LSA strips
- The sockets are angled by 40° which makes the plug in of patch cables very easy

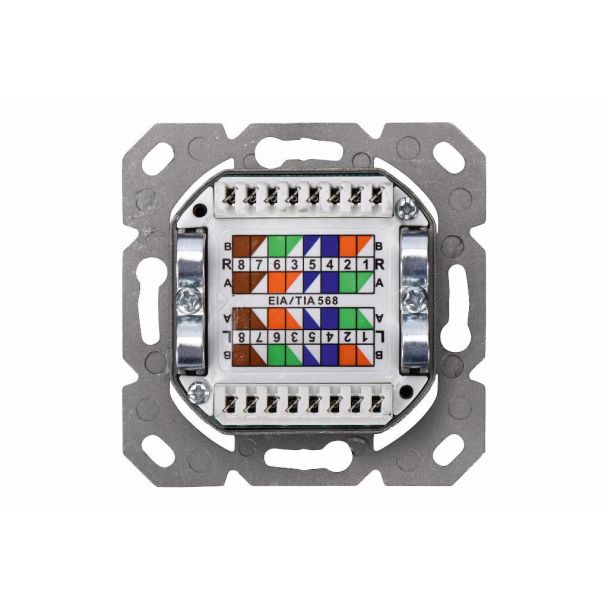

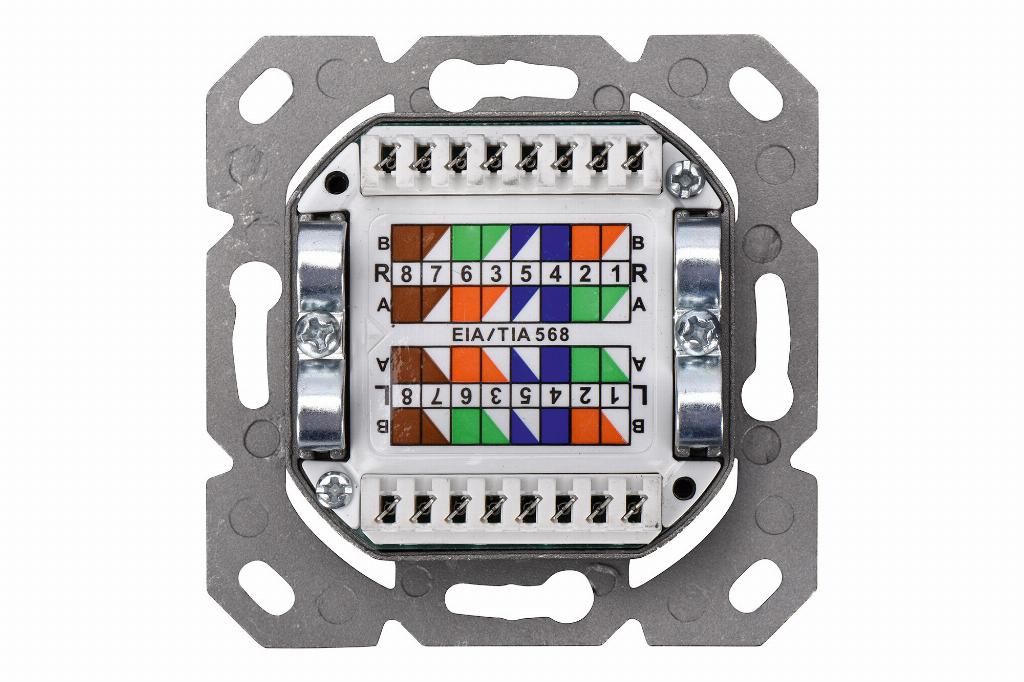

The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takesplace via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-9005-N
Ean	4016032175711
Modified on	24-06-2013
Product title	Digitus CAT 6 wall outlet, flush mount
Long Product Name	CAT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, flush mount
Product specifications	Features Socket type* RJ-45 Sockets quantity* 2 Networking cable category 6 Design Product colour* White Weight & dimensions Width 80 mm Height 80 mm Logistics data Country of origin China Harmonized System (HS) code 85366990
Essential qualities	Transmission property: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Not compatible with R&M freenet patch cords Colour: White RAL9003
Socket type	RJ-45
Sockets quantity	2
Product colour	White
