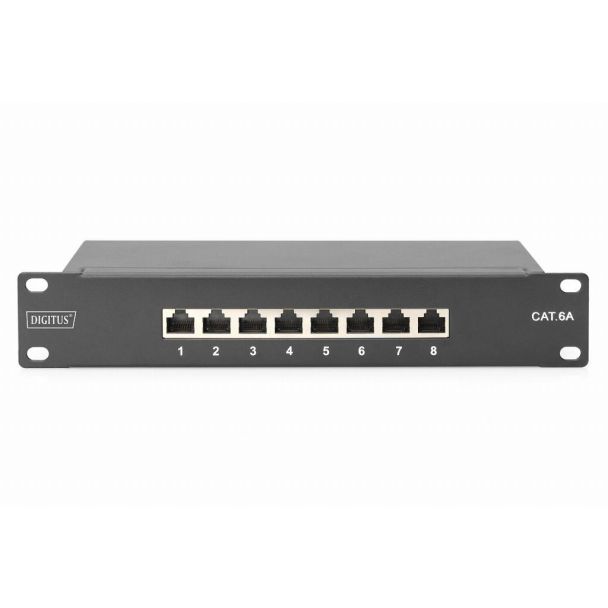

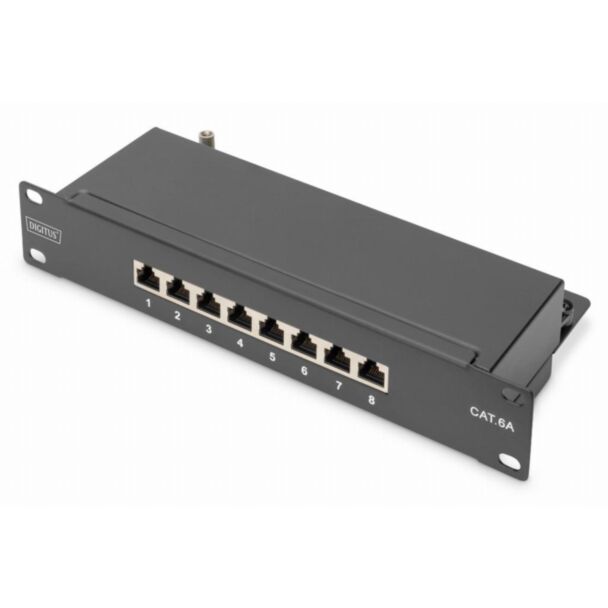

Digitus CAT 6A, class E patch panel, shielded, black
GTIN: 4016032473145
CAT 6A Patch Panel, shielded,8-Port 1U, 10" rack mount, black RAL 9005
Future-oriented standards and high-end quality for your network
- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized measured power values
- Compact 10" design with 8x RJ45 sockets
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- Wall mounting possible
The CAT 6A patch panels for 254 mm (10") rack mounting from DIGITUS® are manufactured according to Link Performance Class E, for up to 500 MHz, ISO/IEC 11801 and EN 50173. Cables are installed via the LSA strips, which are color-coded according to EIA/TIA 568B. The housing is made of galvanized cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110. It complies with the 802.3at PoE+ and the 802.3af PoE standard.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-91608S-EA |
| Ean | 4016032473145 |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Modified on | 15-03-2022 |
| Product title | Digitus CAT 6A, Class E Patch Panel, shielded, black |
| Long Product Name | CAT 6A Patch Panel, shielded,8-Port 1U, 10" rack mount, black RAL 9005 |
| Product specifications | NetworkCabling technology 10GBase-T Ethernet interface type 10 Gigabit Ethernet Maximum data transfer rate 10000 Mbit/s Ports quantity 8 Connector(s) RJ-45 Cable types supported Cat6a AWG wire size 22/26 DesignProduct colour Black Mounting Rack mounting Rack capacity 1U Certification UL Operational conditionsOperating temperature (T-T) -20 - 70 °C Weight & dimensionsWeight 820 g Packaging dataPackage width 60 mm Package depth 260 mm Package height 120 mm Package weight 890 g Package volume 1872 cm³ Package type Box Logistics dataUK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098 |
| Essential qualities |
|
| Ports quantity | 8 |
