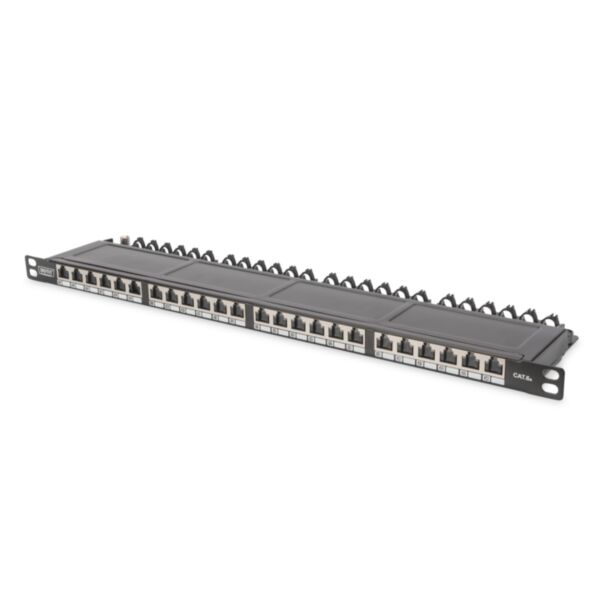

Digitus CAT 6A Class EA patch panel, shielded, 0.5U 24-port RJ45, incl. dust cover, 8P8C, black

Name: Digitus CAT 6A Class EA patch panel, shielded, 0.5U 24-port RJ45, incl. dust cover, 8P8C, black
Brand: Digitus
SKU: DIG-DN-91624S-SL-EA
Price: 97.892801 EUR
Availability: InStock

GTIN: 4016032341369

In stock

SKU

DIG-DN-91624S-SL-EA

Be the first to review this product

€97.89 €80.24

Your legal guarantee rights

Manufacturers: Digitus

CAT 6A Class EA patch panel, shielded, 0.5U 24-port RJ45, incl. dust cover, 8P8C, black

Description

More Information

Reviews

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting
- Cable clamp for fixing and routing, reclosable
- Quick-release fastener to secure the housing cover

The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA insulation displacement connectors.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91624S-SL-EA
Ean	4016032341369
Modified on	24-07-2014
Product title	Digitus CAT 6A, Class EA High Density Patch Panel, shielded
Long Product Name	CAT 6A Class EA patch panel, shielded, 0.5U 24-port RJ45, incl. dust cover, 8P8C, black
Product specifications	Network Networking standards IEEE 802.3af, IEEE 802.3at Ports quantity 24 Connector(s) RJ-45 Cable types supported Cat6a Design Product colour Black Material SECC Mounting Rack mounting Rack capacity 0.5U Certification EN1.4301, UNS S30400, AISI 304, LMSAD110 Packaging data Package width 140 mm Package depth 530 mm Package weight 1.5 kg Package volume 2597 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Transmission characteristics: Category 6A, Class EA Application areas: Up to 500 MHz, 10GBase-T Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for 483 mm (19") rack mounting RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Central earthing connection 360° shield contacting Integrated dust protection flap Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) HE: 0.5
Ports quantity	24
Mounting	Rack mounting
Rack capacity	0.5U
